VHMS-2

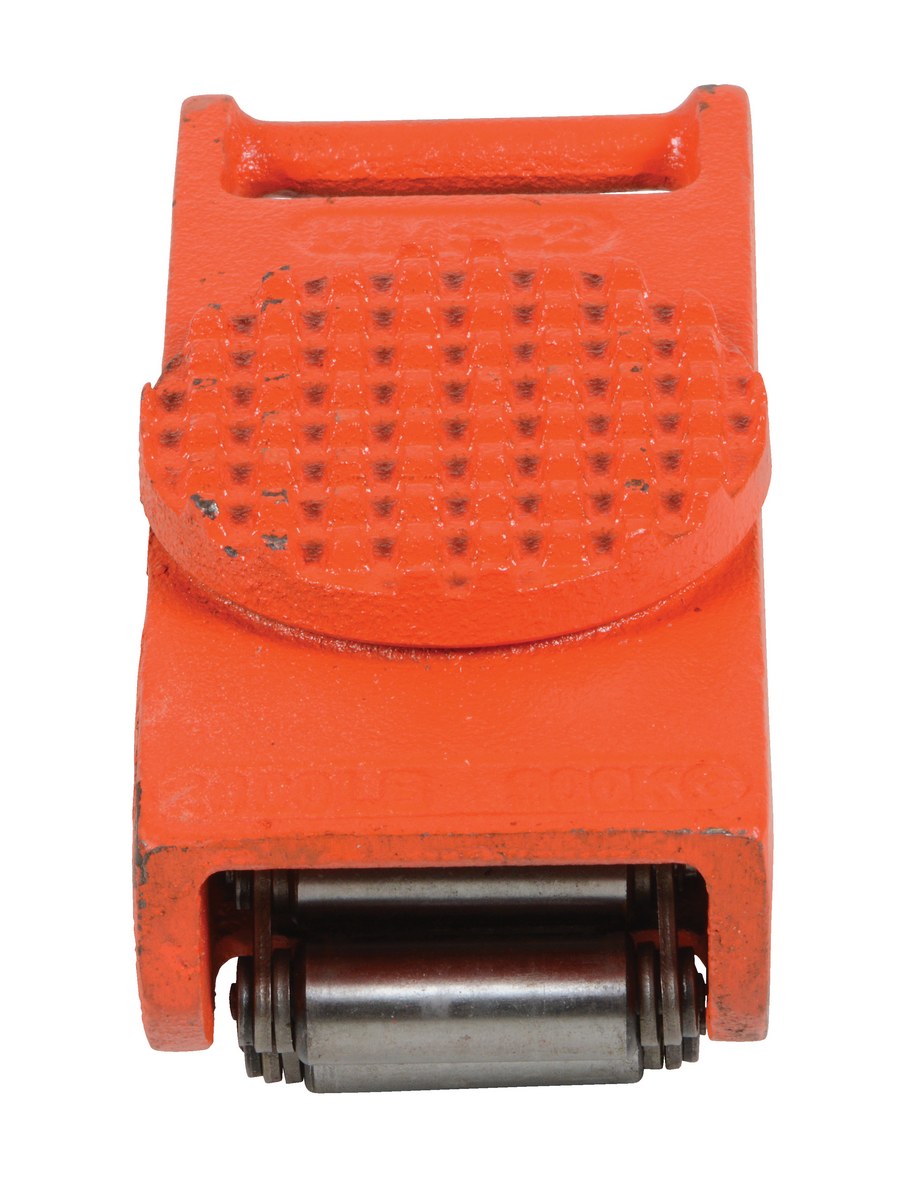

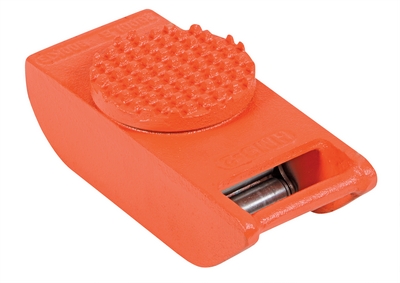

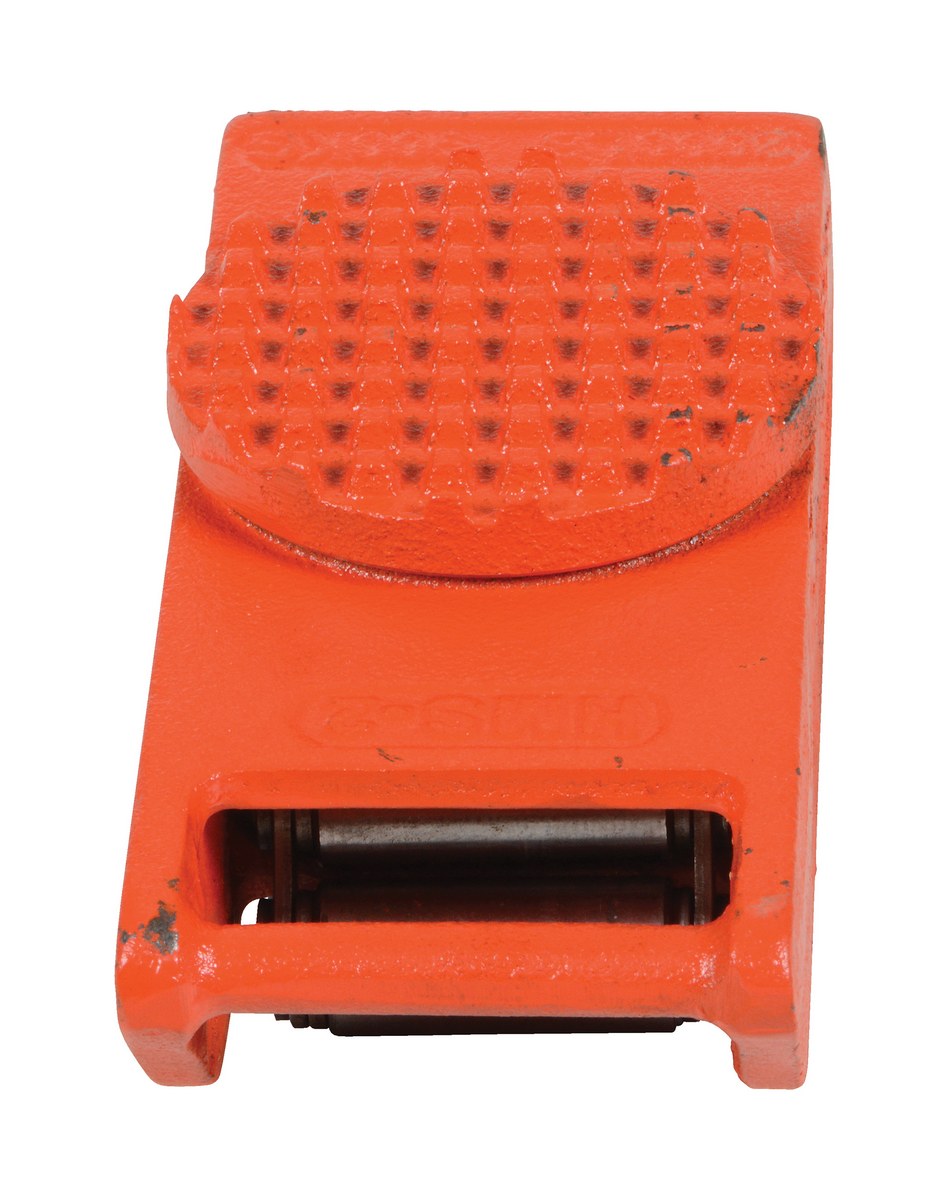

Steel Machine Roller 2,000 Lb. Capacity Orange

Made of high-strength annealed ductile iron, this steel machine roller has swivel tops that rotate three hundred sixty degrees (360 degrees) on chrome steel ball bearings to allow for easier turning. The rollers form a "tank track" to revolve around a center load bearing plate in the frame to provide maximum maneuverability. The weight of the load is transferred directly from the load bearing plate to the rollers, eliminating axle friction and requiring less power to start and move. A spring loaded locking mechanism on the swivel tops can be engaged in detents at forty-five degrees (45 degrees) intervals. This unit is virtually maintenance free. Steering bars split in two (2) and connect with sleeve for easy storage.

  • Rollers revolve around center load bearing plate in frame to provide maximum maneuverability
  • Load weight is transferred directly from the load bearing plate to the rollers requiring less power to start and move
  • High-strength annealed ductile iron provides a tough long lasting unit
  • Unit construction is virtually maintenance free
Total Ship Wt.(lbs.): 11 (only 1 package) Size: 3.5"W x 8"L x 3.25"H Color: Orange

Uniform Capacity (lb.): 2000 Component: Machine Roller

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: VHMS-2
VHMS-2

Steel Machine Roller 2,000 Lb. Capacity Orange

Made of high-strength annealed ductile iron, this steel machine roller has swivel tops that rotate three hundred sixty degrees (360 degrees) on chrome steel ball bearings to allow for easier turning. The rollers form a "tank track" to revolve around a center load bearing plate in the frame to provide maximum maneuverability. The weight of the load is transferred directly from the load bearing plate to the rollers, eliminating axle friction and requiring less power to start and move. A spring loaded locking mechanism on the swivel tops can be engaged in detents at forty-five degrees (45 degrees) intervals. This unit is virtually maintenance free. Steering bars split in two (2) and connect with sleeve for easy storage.

  • Rollers revolve around center load bearing plate in frame to provide maximum maneuverability
  • Load weight is transferred directly from the load bearing plate to the rollers requiring less power to start and move
  • High-strength annealed ductile iron provides a tough long lasting unit
  • Unit construction is virtually maintenance free
Dimensions: 3.5"W x 8"L x 3.25"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215045339 GTIN: 00691215045339
Warranty: -- Shipping Weight: 11 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: Taiwan
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Component: Machine Roller
