TAS-20-7248

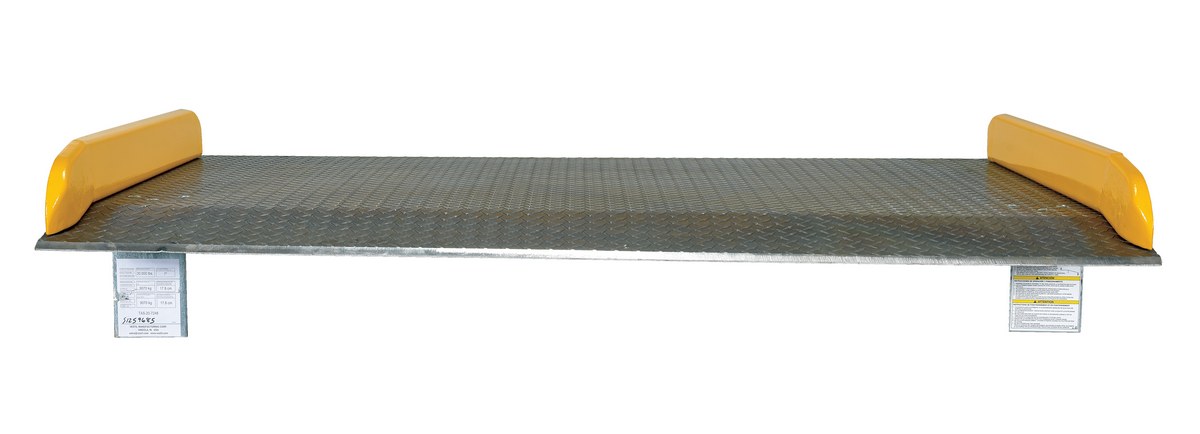

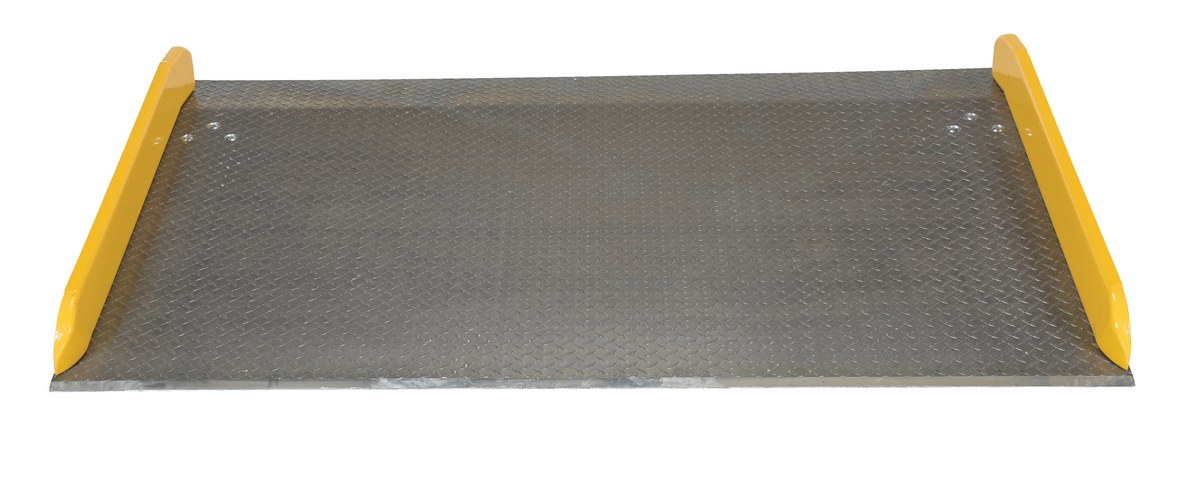

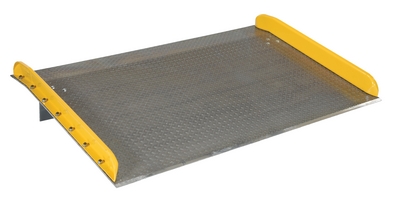

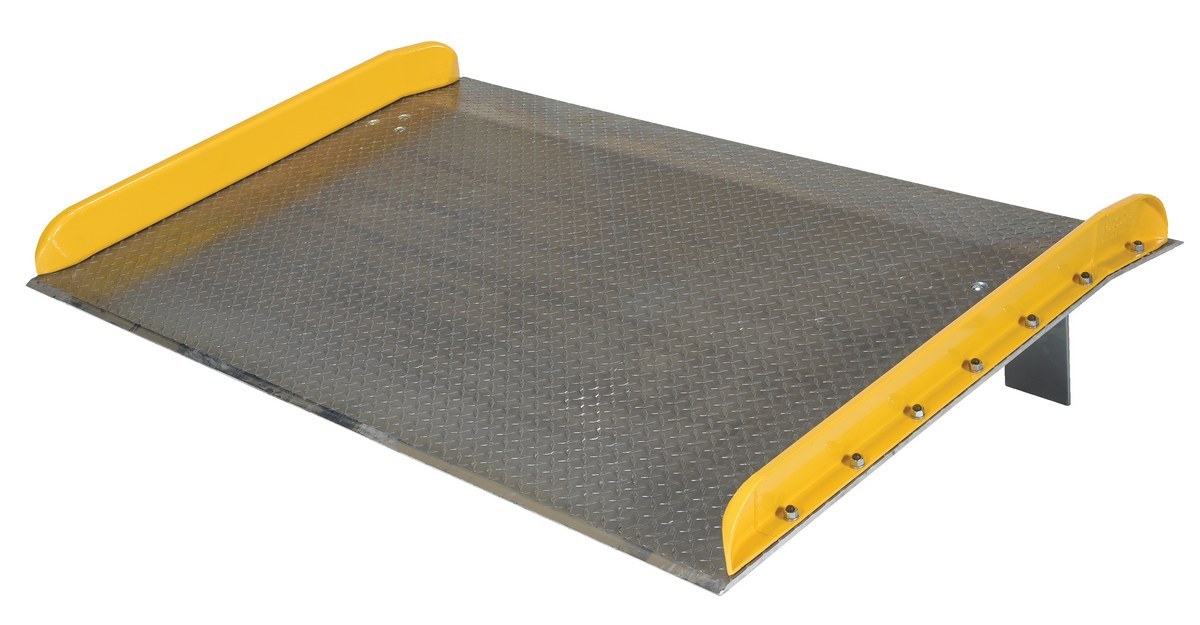

Aluminum Dock Board Steel Curb 72 In. x 48 In. 20,000 Lb. Capacity Silver

The Aluminum truck dock board with steel safety curbs is designed for portability and safety. The deck is made of tough high strength aluminum tread plate. The edges are beveled for smooth entry and exit. Safety curbs are coated yellow and are constructed of steel with cast tapered ends. Steel legs are bolted on for increased durability. Canted locking legs for easier truck portability. Manufactured in compliance with OSHA. The capacity is based upon the heaviest type of equipment used plus the maximum load carried times the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least fifteen (15) inches wider than the load or equipment passing between the curbs. If the load does not pass between curbs, but is elevated above, add fifteen (15) inches to overall width of equipment.

  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs are within OSHA compliance
  • Beveled entrance and exit edges allow for smoother transition
  • Heavy-duty steel curbs are painted yellow and bolted to deck plate for safer use
Total Ship Wt.(lbs.): 216 (only 1 package) Size: 72"W x 48"L x 13.6875"H Color: Silver

Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 7 Location of Legs From Beveled Edge (in.): 11
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 8-3/4 Usable Width (in.): 68-1/4
Usable Length (in.): 48 Plate Thickness (in.): 1/2 Curb Height (in.): 4-3/4
OSHA: 1910.30(a) ANSI: MH 30.2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TAS-20-7248
TAS-20-7248

Aluminum Dock Board Steel Curb 72 In. x 48 In. 20,000 Lb. Capacity Silver

The Aluminum truck dock board with steel safety curbs is designed for portability and safety. The deck is made of tough high strength aluminum tread plate. The edges are beveled for smooth entry and exit. Safety curbs are coated yellow and are constructed of steel with cast tapered ends. Steel legs are bolted on for increased durability. Canted locking legs for easier truck portability. Manufactured in compliance with OSHA. The capacity is based upon the heaviest type of equipment used plus the maximum load carried times the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered. When using three-wheeled fork trucks order dock board with capacity at least four-times the lifting capacity of fork truck. The width of the dock board should be at least fifteen (15) inches wider than the load or equipment passing between the curbs. If the load does not pass between curbs, but is elevated above, add fifteen (15) inches to overall width of equipment.

  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs are within OSHA compliance
  • Beveled entrance and exit edges allow for smoother transition
  • Heavy-duty steel curbs are painted yellow and bolted to deck plate for safer use
Dimensions: 72"W x 48"L x 13.6875"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215039567 GTIN: 00691215039567
Warranty: -- Shipping Weight: 216 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 20000 Height Difference at 11 degree/19 percent (in.): 7 Location of Legs From Beveled Edge (in.): 11
Bend Degree: 11 Bend Distance from Beveled Edge (in.): 8-3/4 Usable Width (in.): 68-1/4
Usable Length (in.): 48 Plate Thickness (in.): 1/2 Curb Height (in.): 4-3/4
OSHA: 1910.30(a) ANSI: MH 30.2
