Model Details

← All Products- ← Ergonomic Solutions- ← Manual Pallet Trucks -← Quick Lift Pallet Trucks- PM5-2048-QL

PM5-2048-QL

Printer Friendly
Out of Stock - Please Contact Sales
PM5-2048-QL
PM5-2048-QL PM5-2048-QL PM5-2048-QL PM5-2048-QL

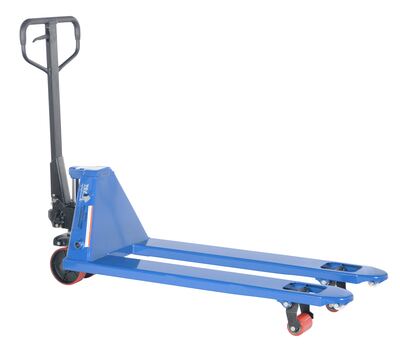

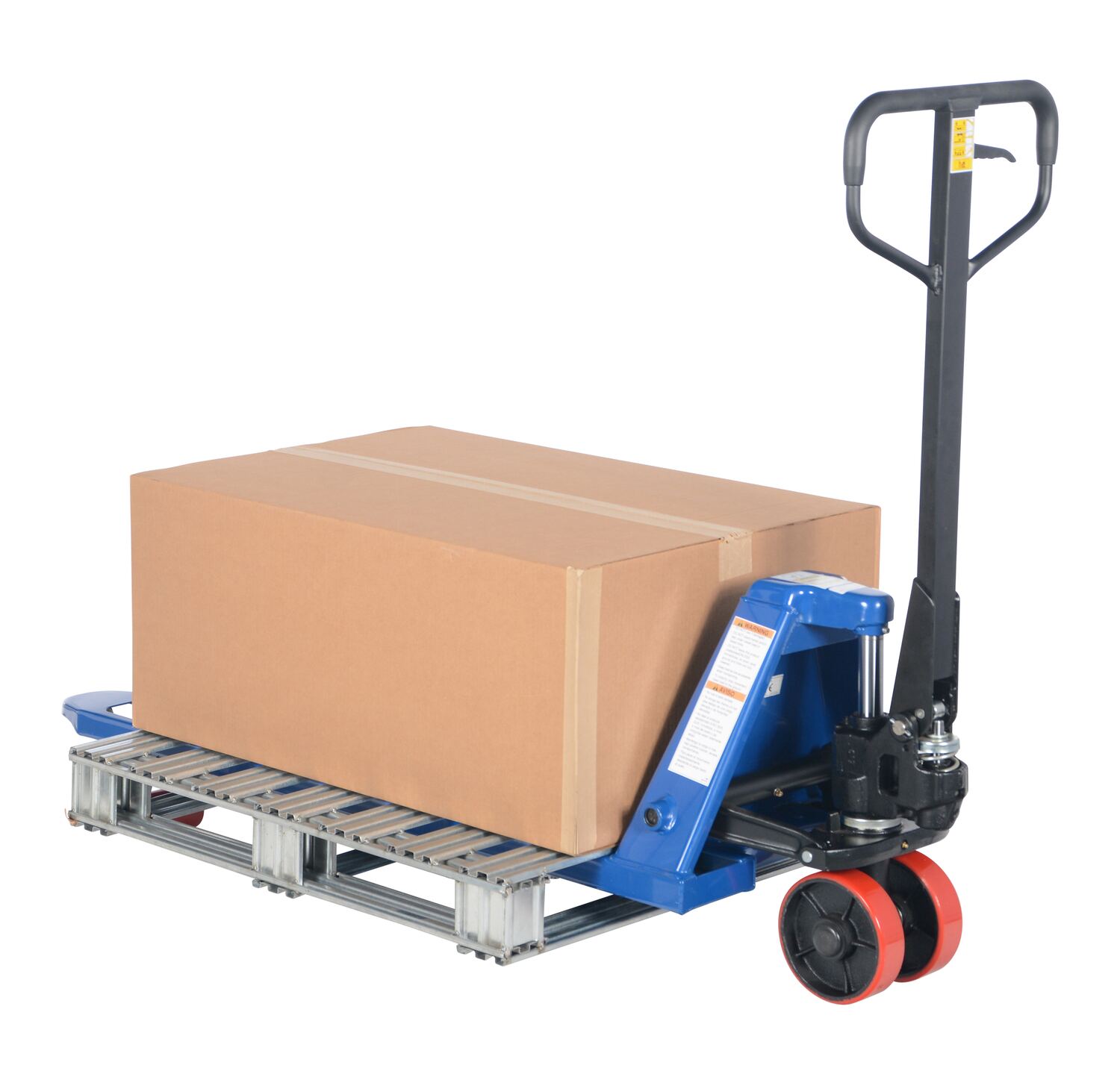

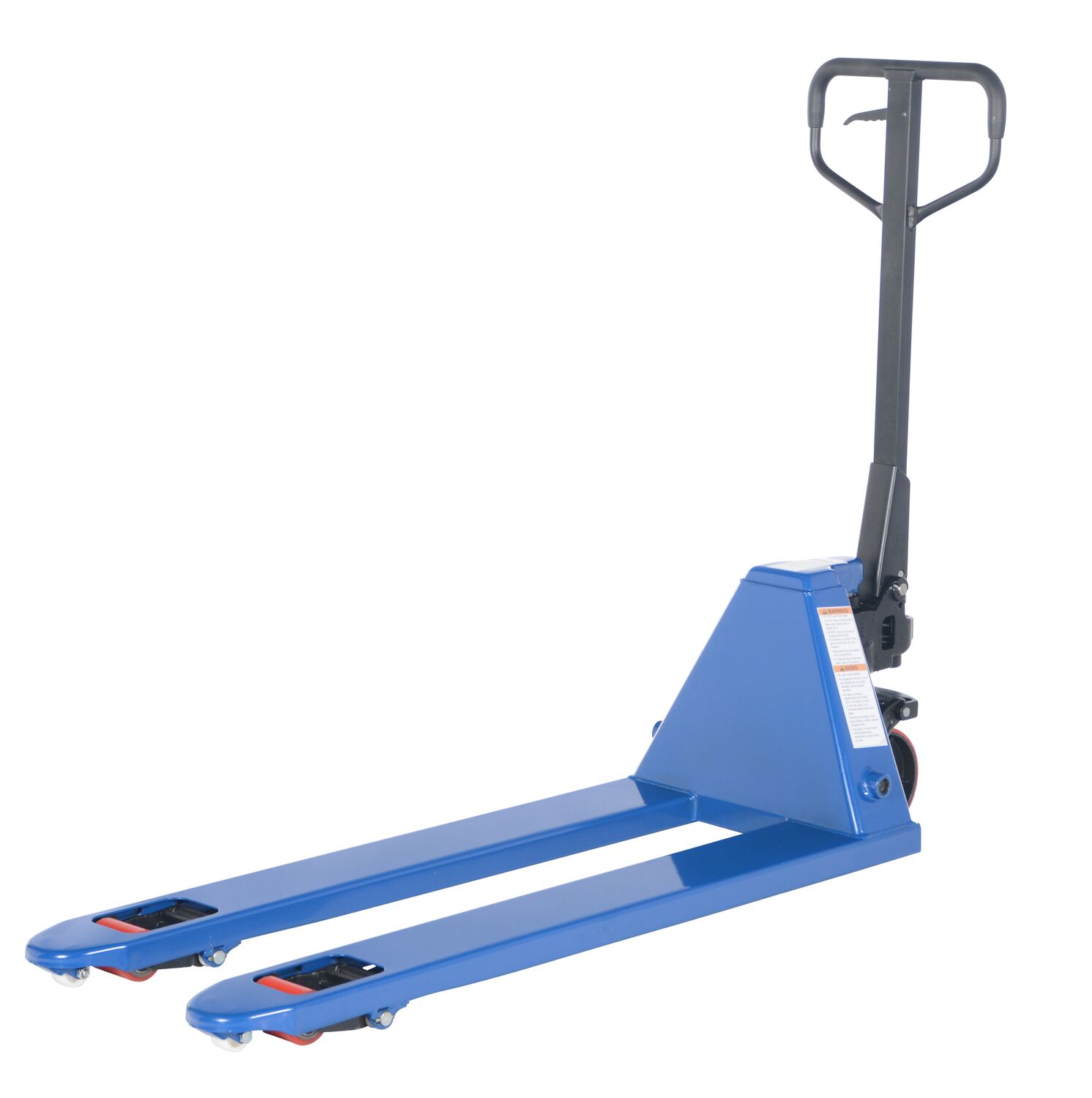

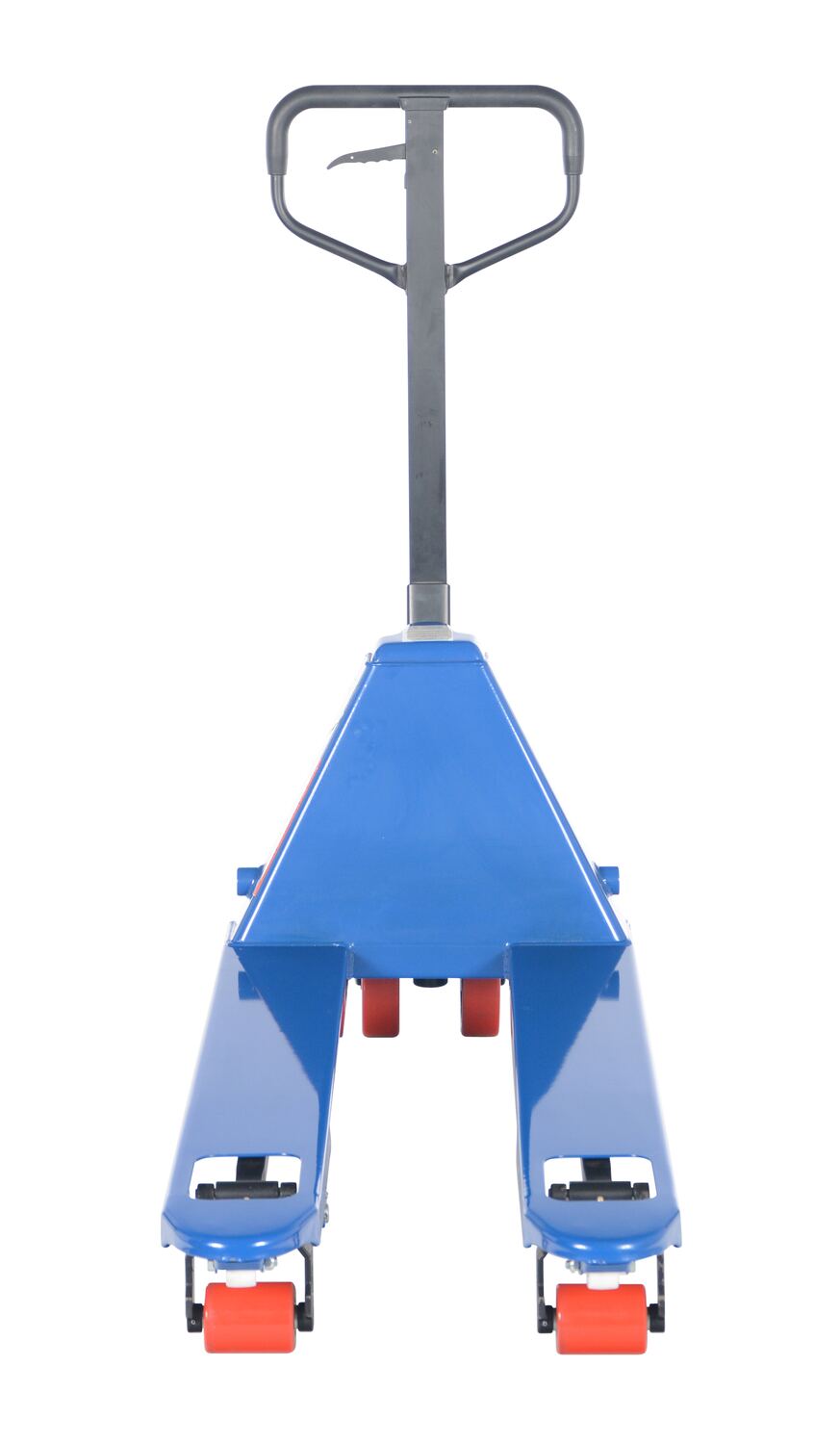

Steel Quick Lift Pallet Truck 59 In. x 20 In. x 48 In. 5500 Lb. Capacity Blue

The quick lift pallet truck lifts to a maximum height with just five to six (5-6) pumps. It reduces operating cost and is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. The steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. The hydraulic pump design facilitates easy access seal replacement. The chrome-plated hydraulic pump piston ensures long seal life.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Reach max height with empty unit in 6 pumps, 13 pumps when unit is loaded
Assembled Wt.(lbs.): 160 Assembled Size: 20"W x 59"L x 48"H

Total Ship Wt.(lbs.): 184 (only 1 package) Package 1 Size: 40"W x 64"D x 23"H Color: Blue

Uniform Capacity (lb.): 5,500 Fork Spacing (in.): 20 Fork Width/Length (in.): 7 x 48
Service Range (in.): 2-7/8 to 7-3/4 Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 3 x 3-5/8 Load Roller Material: Polyurethane Pumps to Raise to Maximum Height - Unloaded: 5 to 6
Pumps to Raise to Maximum Height - Loaded: 12 to 13 Handle Height (in.): 48-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: PM5-2048-QL
Out of Stock - Please Contact Sales
PM5-2048-QL

Steel Quick Lift Pallet Truck 59 In. x 20 In. x 48 In. 5500 Lb. Capacity Blue

The quick lift pallet truck lifts to a maximum height with just five to six (5-6) pumps. It reduces operating cost and is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. The steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. The hydraulic pump design facilitates easy access seal replacement. The chrome-plated hydraulic pump piston ensures long seal life.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Reach max height with empty unit in 6 pumps, 13 pumps when unit is loaded
Dimensions: 20"W x 59"L x 48"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 184 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 5,500 Fork Spacing (in.): 20 Fork Width/Length (in.): 7 x 48
Service Range (in.): 2-7/8 to 7-3/4 Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 3 x 3-5/8 Load Roller Material: Polyurethane Pumps to Raise to Maximum Height - Unloaded: 5 to 6
Pumps to Raise to Maximum Height - Loaded: 12 to 13 Handle Height (in.): 48-1/2
