Model Details

← All Products- ← Ergonomic Solutions- ← Manual Pallet Trucks -← Roll Pallet Trucks- PM4-4048-RL

PM4-4048-RL

Printer Friendly
Out of Stock - Please Contact Sales
PM4-4048-RL
PM4-4048-RL PM4-4048-RL

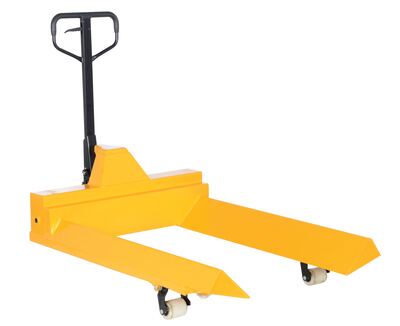

Steel Pallet Truck V-Shaped Center 78 In. x 40 In. x 43-13/16 In. 4000 Lb. Capacity Yellow

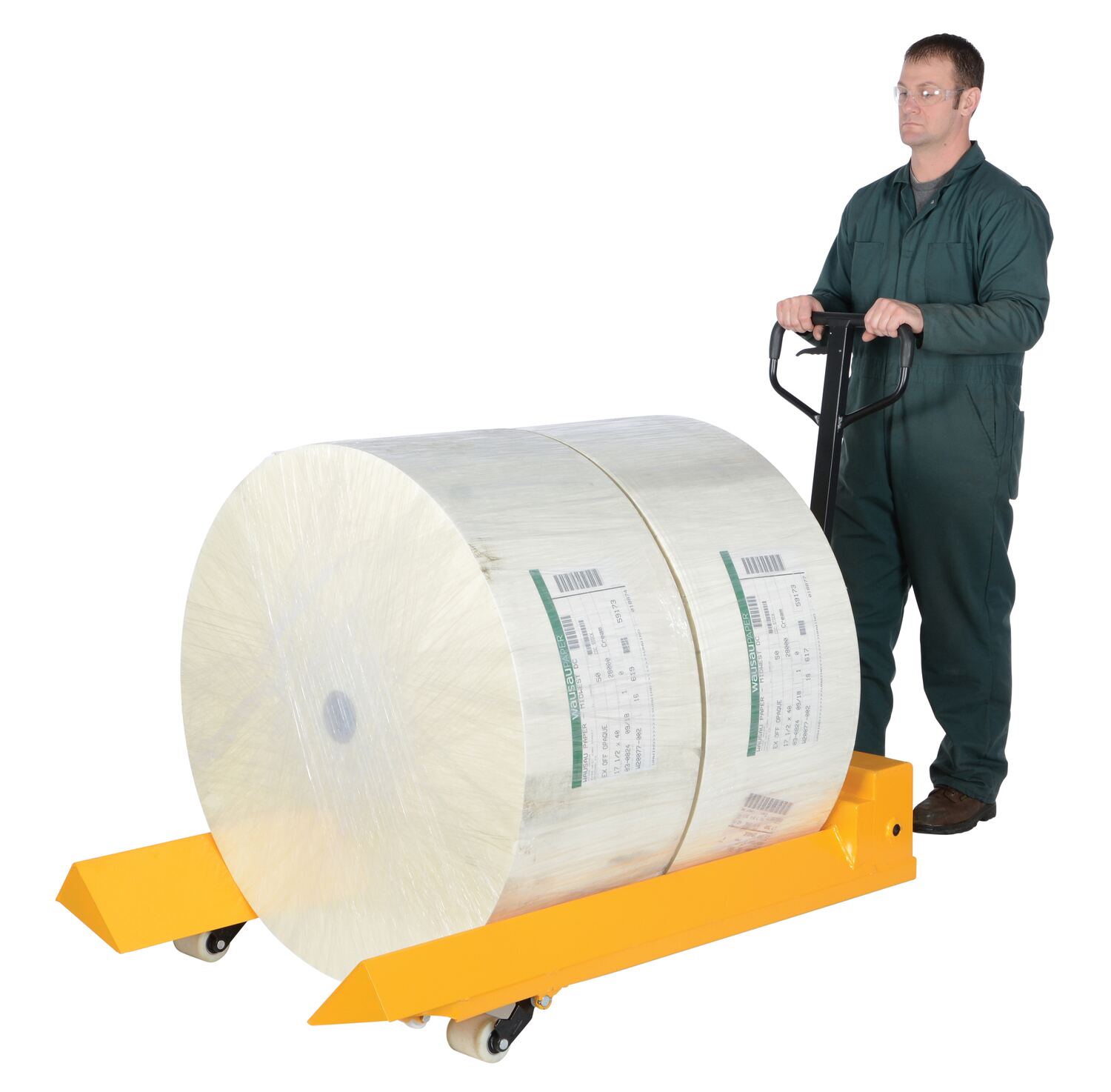

The roll pallet truck transports rolls of materials with standard pallet trucks. Sloped ends allow for manually rolling material into position. V-shaped center holds rolls into position.

  • V-shaped center holds rolls in needed position
  • Heavy-duty welded steel construction offers long lasting use
  • Yellow colored finish provides sustainable visibility
  • Sloped ends allow for manually rolling material into position
Assembled Wt.(lbs.): 360 Assembled Size: 40"W x 78"L x 43.8125"H

Total Ship Wt.(lbs.): 360 (only 1 package) Package 1 Size: 40"W x 64"D x 24"H Color: Yellow

Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 40 Fork Width/Length (in.): 7-1/2 x 48
Service Range (in.): 7-3/4 to 9-3/4 Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 3-1/2 x 3 Load Roller Material: Polyurethane Minimum Roll Size Diameter Unit Accommodates (in.): 31-1/2
Maximum Roll Size Diameter Unit Accommodates (in.): 47-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: PM4-4048-RL
Out of Stock - Please Contact Sales
PM4-4048-RL

Steel Pallet Truck V-Shaped Center 78 In. x 40 In. x 43-13/16 In. 4000 Lb. Capacity Yellow

The roll pallet truck transports rolls of materials with standard pallet trucks. Sloped ends allow for manually rolling material into position. V-shaped center holds rolls into position.

  • V-shaped center holds rolls in needed position
  • Heavy-duty welded steel construction offers long lasting use
  • Yellow colored finish provides sustainable visibility
  • Sloped ends allow for manually rolling material into position
Dimensions: 40"W x 78"L x 43.8125"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 360 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 40 Fork Width/Length (in.): 7-1/2 x 48
Service Range (in.): 7-3/4 to 9-3/4 Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 3-1/2 x 3 Load Roller Material: Polyurethane Minimum Roll Size Diameter Unit Accommodates (in.): 31-1/2
Maximum Roll Size Diameter Unit Accommodates (in.): 47-1/4
