Model Details

← All Products- ← Ergonomic Solutions- ← Manual Pallet Trucks -← Low Profile Pallet Trucks- PM4-3348-LP

PM4-3348-LP

Printer Friendly
Out of Stock - Please Contact Sales
PM4-3348-LP
PM4-3348-LP PM4-3348-LP PM4-3348-LP

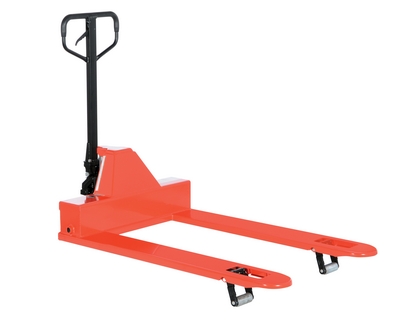

Steel Low Profile Pallet Truck 63 In. x 33 In. x 48 In. 4000 Lb. Capacity Red

The Low Profile pallet truck can enter a pallet from all four sides. The all steel frame is reinforced to handle heavy loads. Wide loop handle control with lift, neutral, and lower functions provides fingertip control. The unit has lifetime lubricated bearings and a hydraulic system that has a hard chrome plated pump piston with polyurethane seals. The suspension system has heavy-duty thrust bearing. This pallet truck comes complete with adjustable push rods, polyurethane wheels, steel load rollers, and a red powder coat finish.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work

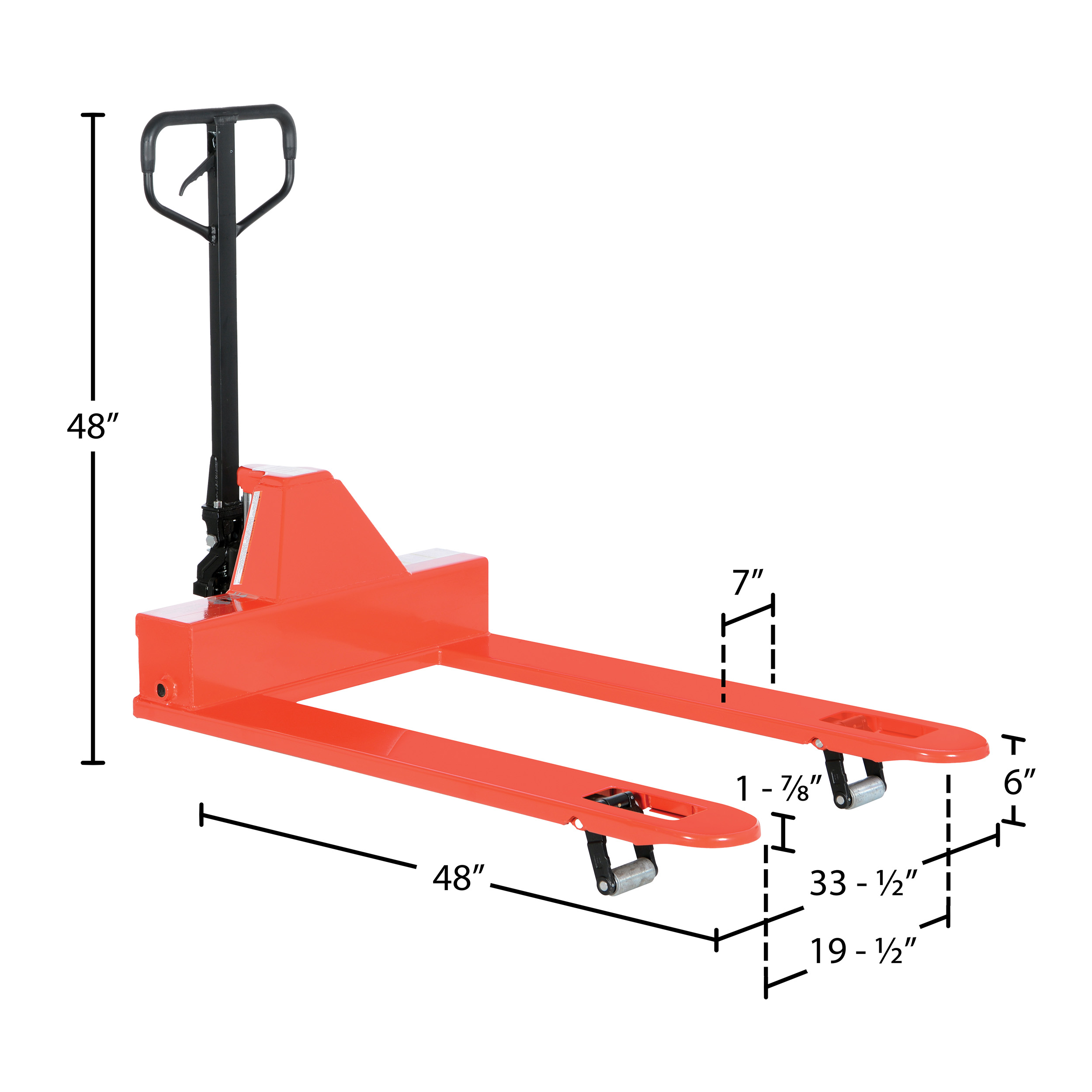

Assembled Wt.(lbs.): 234 Assembled Size: 33"W x 63"L x 48"H

Total Ship Wt.(lbs.): 286 (only 1 package) Package 1 Size: 41"W x 66"D x 24"H Color: Red

Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 33-1/2 Fork Width/Length (in.): 7 x 48
Service Range (in.): 1-7/8 to 6 Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 1-1/2 x 4-1/2 Load Roller Material: Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: PM4-3348-LP
Out of Stock - Please Contact Sales
PM4-3348-LP

Steel Low Profile Pallet Truck 63 In. x 33 In. x 48 In. 4000 Lb. Capacity Red

The Low Profile pallet truck can enter a pallet from all four sides. The all steel frame is reinforced to handle heavy loads. Wide loop handle control with lift, neutral, and lower functions provides fingertip control. The unit has lifetime lubricated bearings and a hydraulic system that has a hard chrome plated pump piston with polyurethane seals. The suspension system has heavy-duty thrust bearing. This pallet truck comes complete with adjustable push rods, polyurethane wheels, steel load rollers, and a red powder coat finish.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work
Dimensions: 33"W x 63"L x 48"H Sell UOM: -- Color: Red
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 286 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Fork Spacing (in.): 33-1/2 Fork Width/Length (in.): 7 x 48
Service Range (in.): 1-7/8 to 6 Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2 Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 1-1/2 x 4-1/2 Load Roller Material: Steel
