Model Details

PAL-12

Printer Friendly

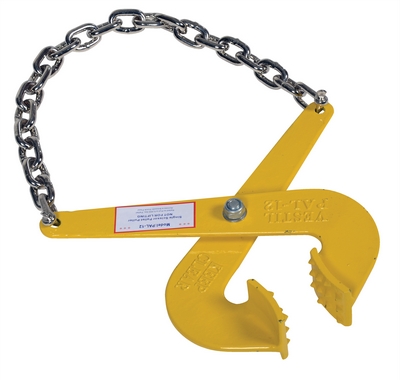

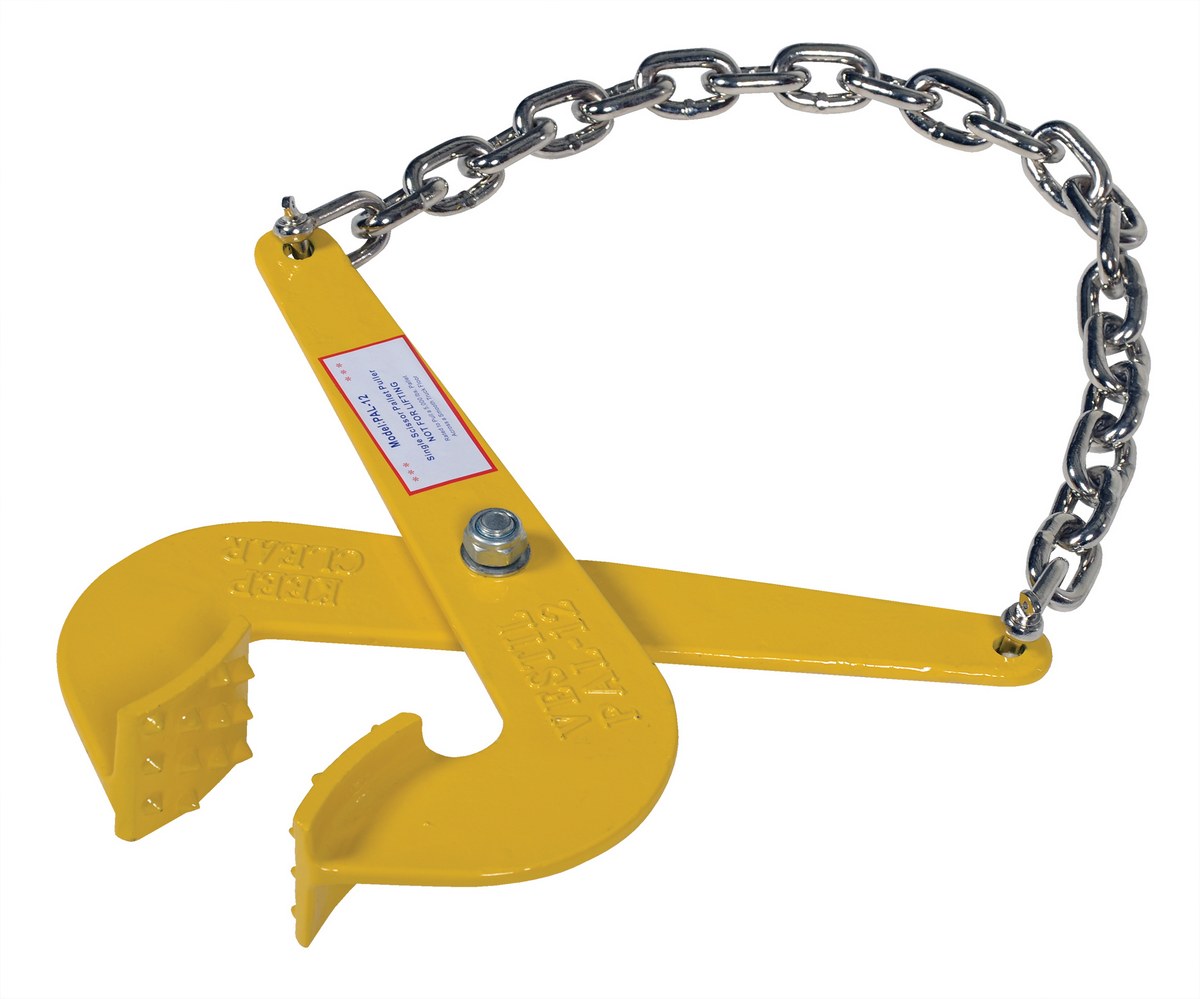

PAL-12

Steel Single Scissor Pallet Puller 7 In. Jaw Opening 5000 Lb. Pulling Capacity Yellow

The pallet puller is used to pull pallets to rear of trailers for easy fork truck access. Made of rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. The single scissor action allows for wider jaw opening. The pallet puller is not designed for lifting.

  • Self-cleaning head is unaffected by particles or debris
  • Heavy-duty capacity can easily pull heavy loads
  • Solid steel construction provides rugged long lasting use
  • Puller design pulls pallet across a smooth truck floor with ease
Total Ship Wt.(lbs.): 14 (only 1 package) Size: 15"W x 2.75"L x 15"H Color: Yellow

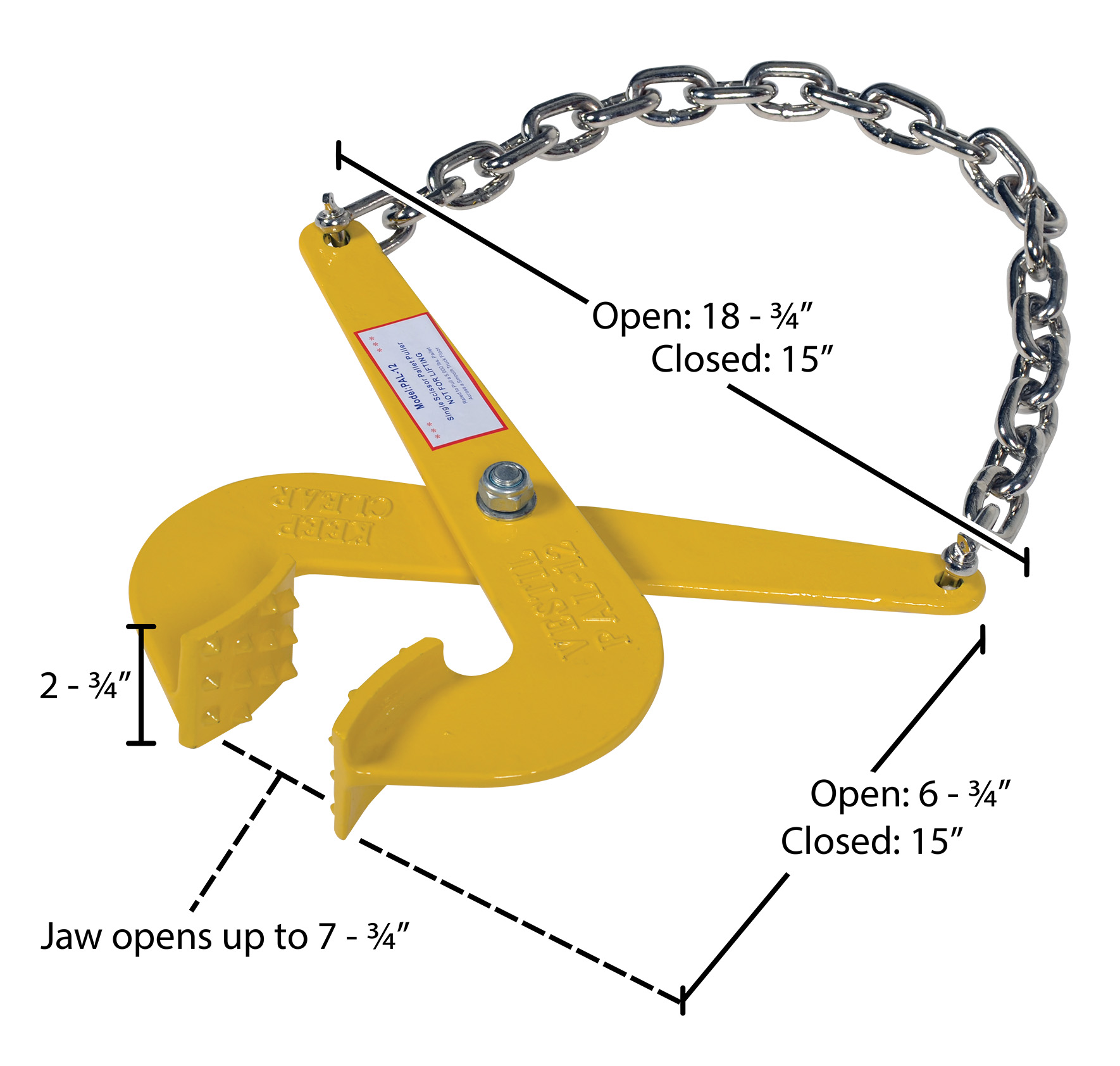

Uniform Pulling Capacity (lb.): 5000 Teeth Pad Height (in.): 2-3/4 Teeth Pad Length (in.): 3-1/4
Jaw Opening (in.): 7 Closed Width (in.): 15 Closed Height (in.): 15
Scissor Type: Single Maximum Jaw Opening (in.): 7-3/4 Overall Chain Length (in.): 30
Arm Thickness (in.): 1/4 Chain Length (in.): 27-1/4 Minimum Stringer Height (in.): 2-7/8 +

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: PAL-12
PAL-12

Steel Single Scissor Pallet Puller 7 In. Jaw Opening 5000 Lb. Pulling Capacity Yellow

The pallet puller is used to pull pallets to rear of trailers for easy fork truck access. Made of rugged steel construction. Heads are self-cleaning and unaffected by wood particles, paint or grease. The single scissor action allows for wider jaw opening. The pallet puller is not designed for lifting.

  • Self-cleaning head is unaffected by particles or debris
  • Heavy-duty capacity can easily pull heavy loads
  • Solid steel construction provides rugged long lasting use
  • Puller design pulls pallet across a smooth truck floor with ease
Dimensions: 15"W x 2.75"L x 15"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215000079 GTIN: 00691215000079
Warranty: -- Shipping Weight: 14 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Pulling Capacity (lb.): 5000 Teeth Pad Height (in.): 2-3/4 Teeth Pad Length (in.): 3-1/4
Jaw Opening (in.): 7 Closed Width (in.): 15 Closed Height (in.): 15
Scissor Type: Single Maximum Jaw Opening (in.): 7-3/4 Overall Chain Length (in.): 30
Arm Thickness (in.): 1/4 Chain Length (in.): 27-1/4 Minimum Stringer Height (in.): 2-7/8 +
