Model Details

MMJ-10

Printer Friendly
MMJ-10

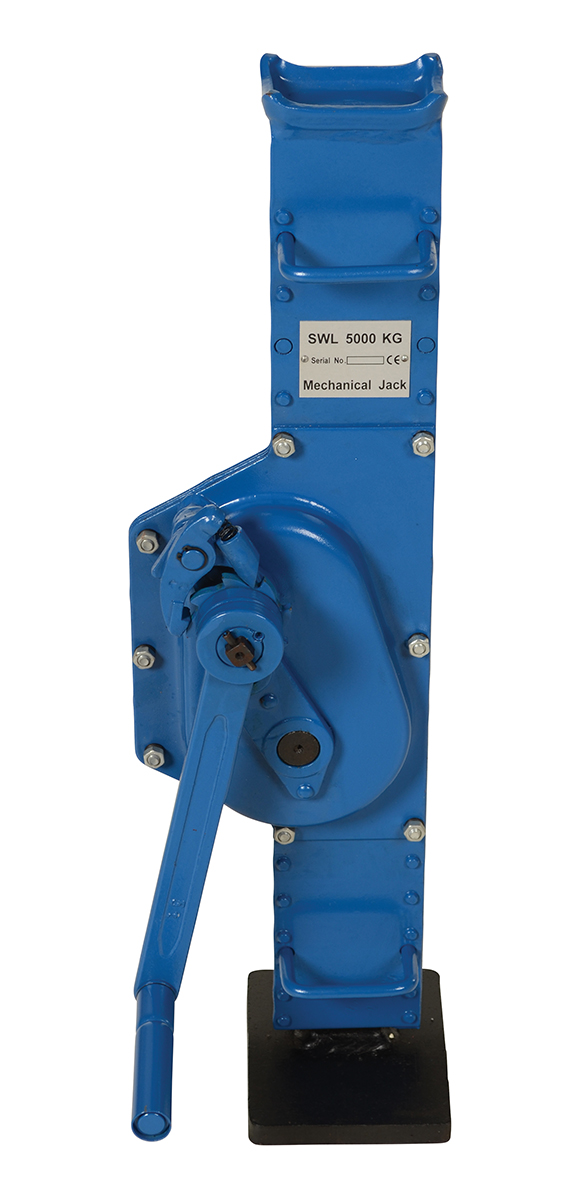

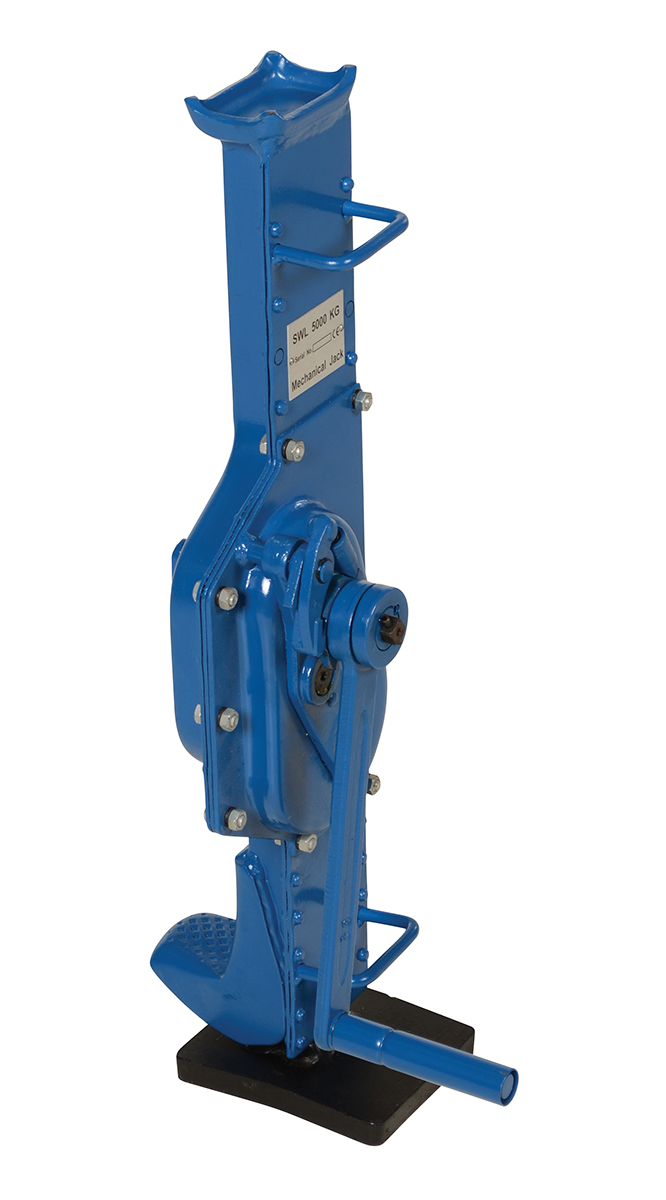

Mechanical Machinery Jack 13 In. x 13-5/8 In. x 42-5/16 In. 10,000 Lb. Capacity Blue

The mechanical machinery jack is good for repairing vehicles, lifting trucks, railway maintenance, construction, mining, and agriculture. Compact design with collapsible lever offers easy operation and simple maintenance. A self locking, anti-kickback operating lever reduces injuries. Standard features include: folding handle, two carrying handles and a large base plate. Lifting and lowering speed is controllable. No seals to leak. Will not drift down even after an extended period of time.

  • Compact design with collapsible lever offers easy operation and simple maintenance
  • Self locking, anti-kickback operating lever reduces injuries
  • Lifting and lowering speeds are controllable for easy operation
  • Will not drift down even after an extended period of time
Total Ship Wt.(lbs.): 66 (only 1 package) Size: 13.625"W x 13"L x 42.3125"H Color: Blue

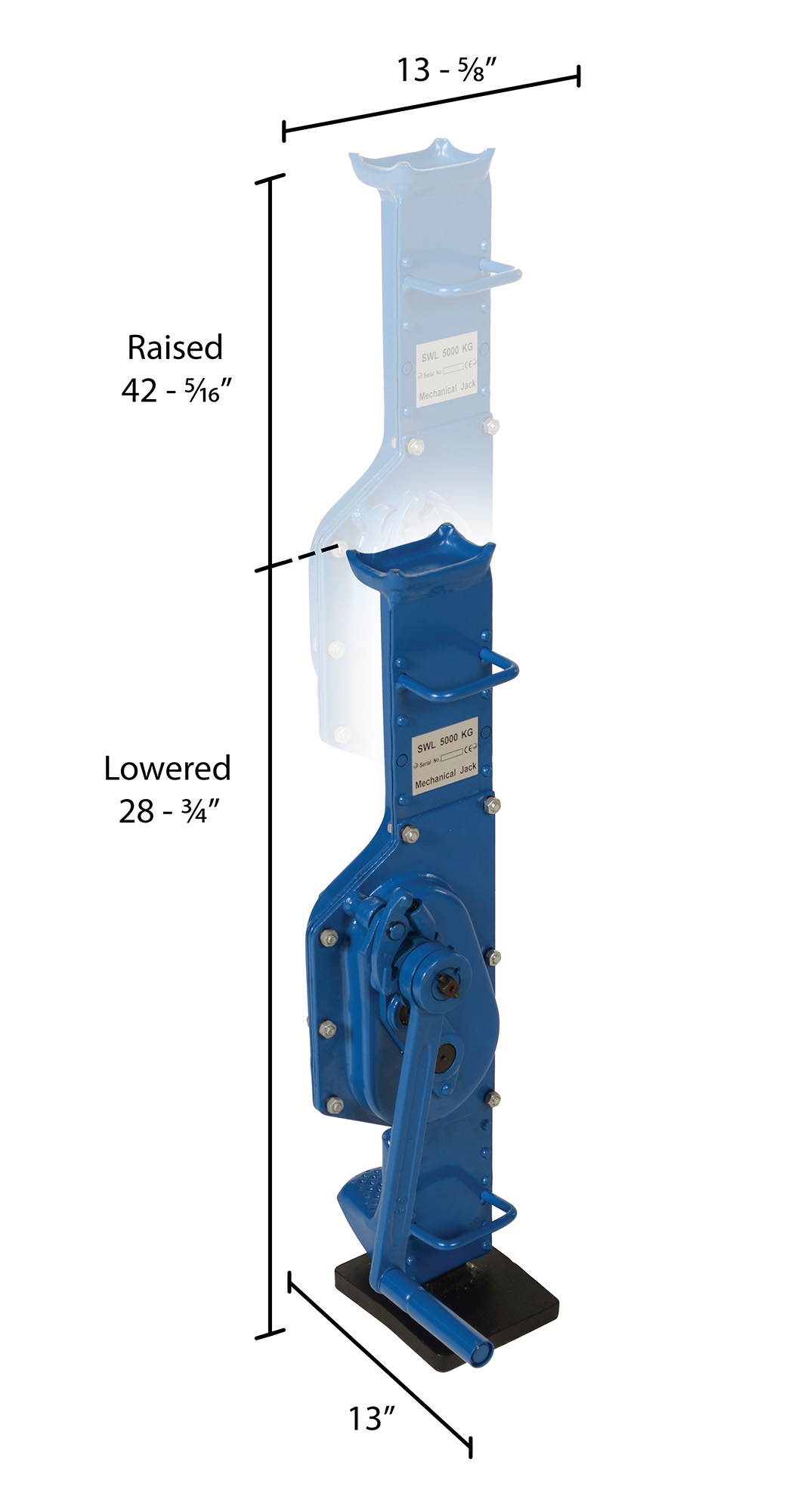

Uniform Capacity (lb.): 10000 Lowered Height (in.): 28-3/4 Raised Height (in.): 42-5/16
Travel (in.): 13-9/16 Force Required to Lift Max Load (lb.): 90 Base Length (in.): 5-3/8
Base Width (in.): 6-5/8 Large Runner to Base Plate (in.): 3-1/4 Overload Protection: Yes
Jack Mechanism: Ratcheting

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: MMJ-10
MMJ-10

Mechanical Machinery Jack 13 In. x 13-5/8 In. x 42-5/16 In. 10,000 Lb. Capacity Blue

The mechanical machinery jack is good for repairing vehicles, lifting trucks, railway maintenance, construction, mining, and agriculture. Compact design with collapsible lever offers easy operation and simple maintenance. A self locking, anti-kickback operating lever reduces injuries. Standard features include: folding handle, two carrying handles and a large base plate. Lifting and lowering speed is controllable. No seals to leak. Will not drift down even after an extended period of time.

  • Compact design with collapsible lever offers easy operation and simple maintenance
  • Self locking, anti-kickback operating lever reduces injuries
  • Lifting and lowering speeds are controllable for easy operation
  • Will not drift down even after an extended period of time
Dimensions: 13.625"W x 13"L x 42.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215089944 GTIN: 00691215089944
Warranty: -- Shipping Weight: 66 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CN
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 10000 Lowered Height (in.): 28-3/4 Raised Height (in.): 42-5/16
Travel (in.): 13-9/16 Force Required to Lift Max Load (lb.): 90 Base Length (in.): 5-3/8
Base Width (in.): 6-5/8 Large Runner to Base Plate (in.): 3-1/4 Overload Protection: Yes
Jack Mechanism: Ratcheting
