Model Details

JIB-HC-3

Printer Friendly
JIB-HC-3

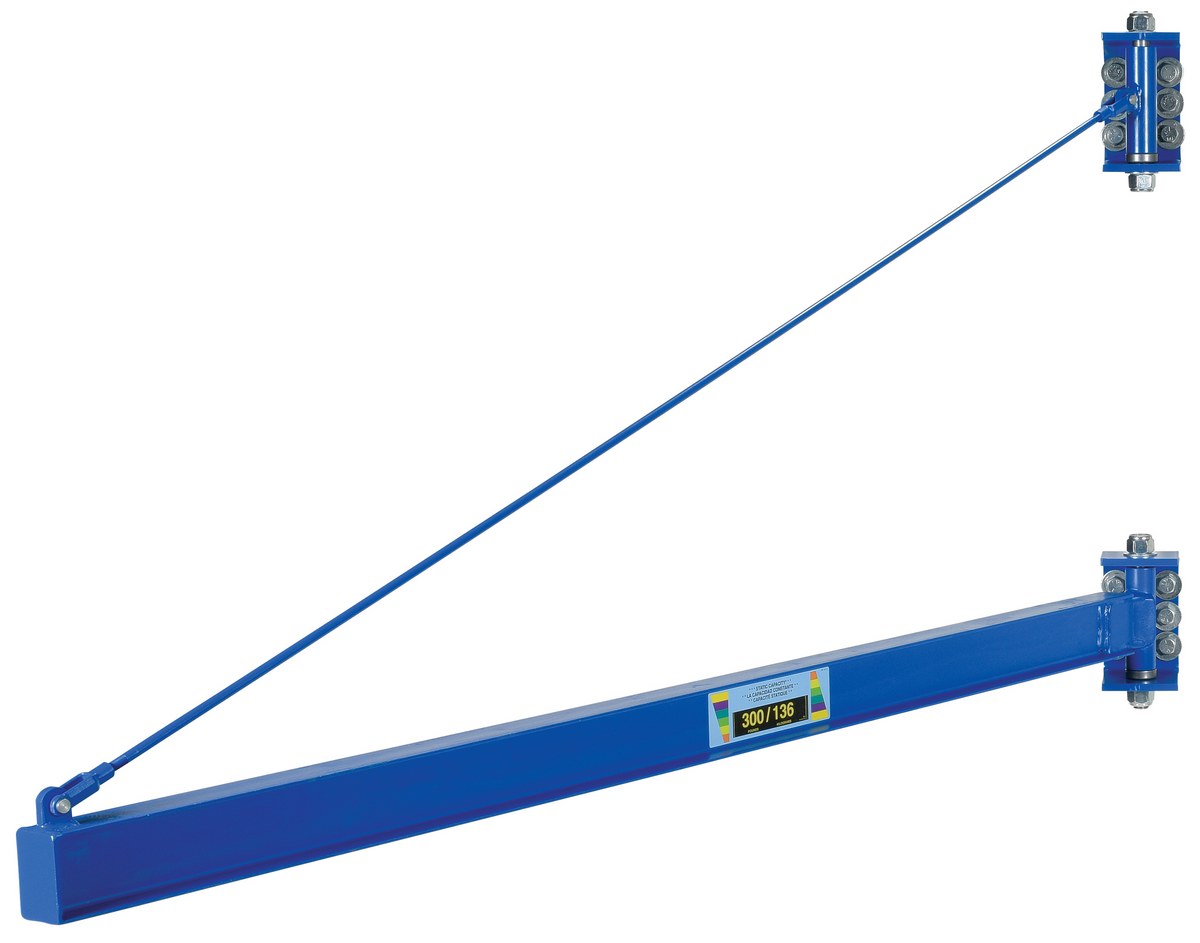

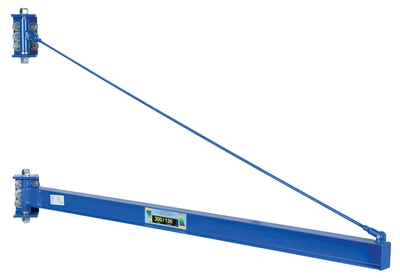

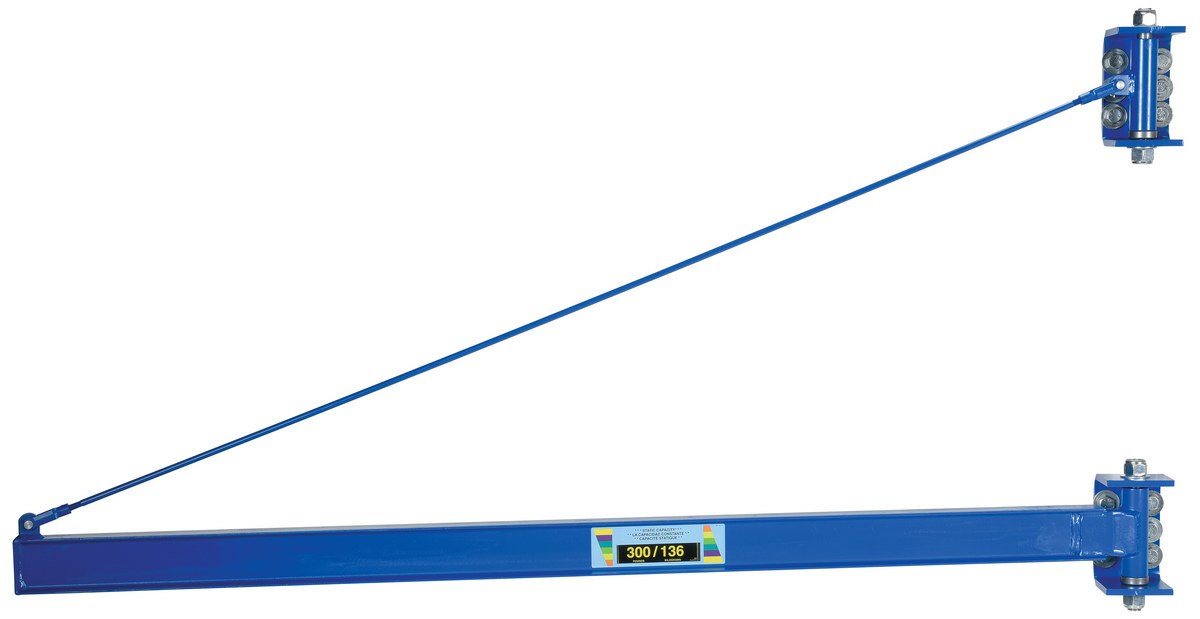

Steel High Clearance Tie Rod Jib 79-3/4 In. I-Beam 300 Lb. Capacity Blue

Achieve maximum floor space and utilize wasted air space. Mount this high clearance style Jib to walls or columns to increase hook coverage over workstations. All steel construction provides years of service. Hoist and trolley can be ordered separately.

  • Design achieves maximum floor space and utilizes wasted air space
  • Mount to walls or columns for optimal results
  • Ideal to increase hook coverage over workstations
  • All steel construction provides years of service
Total Ship Wt.(lbs.): 144 (only 1 package) Size: 5"W x 86"L x 45.25"H Color: Blue

Uniform Capacity (lb.): 300 Tie Bar Length (in.): 82-1/4 I-Beam (Flange x Height) (in.): 2-11/16 x 4
Usable I-Beam Length (in.): 79-3/4 Rotation (degrees): 180 Operation Mode: Manual
Tie Bar Diameter (in.): 1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: JIB-HC-3
JIB-HC-3

Steel High Clearance Tie Rod Jib 79-3/4 In. I-Beam 300 Lb. Capacity Blue

Achieve maximum floor space and utilize wasted air space. Mount this high clearance style Jib to walls or columns to increase hook coverage over workstations. All steel construction provides years of service. Hoist and trolley can be ordered separately.

  • Design achieves maximum floor space and utilizes wasted air space
  • Mount to walls or columns for optimal results
  • Ideal to increase hook coverage over workstations
  • All steel construction provides years of service
Dimensions: 5"W x 86"L x 45.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215024785 GTIN: 00691215024785
Warranty: -- Shipping Weight: 144 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 300 Tie Bar Length (in.): 82-1/4 I-Beam (Flange x Height) (in.): 2-11/16 x 4
Usable I-Beam Length (in.): 79-3/4 Rotation (degrees): 180 Operation Mode: Manual
Tie Bar Diameter (in.): 1/2
