Model Details

FTLP-5454-HR

Printer Friendly
FTLP-5454-HR

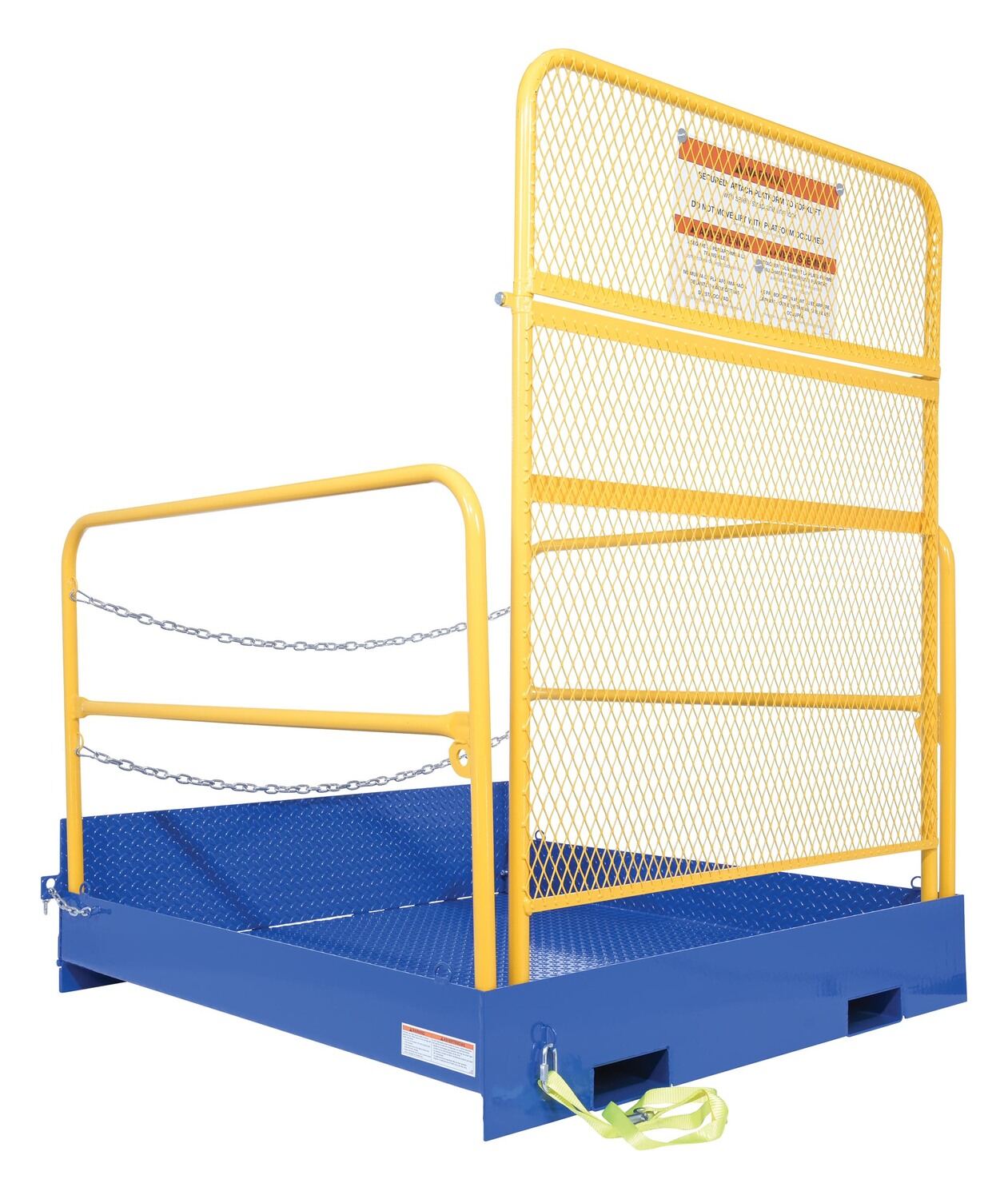

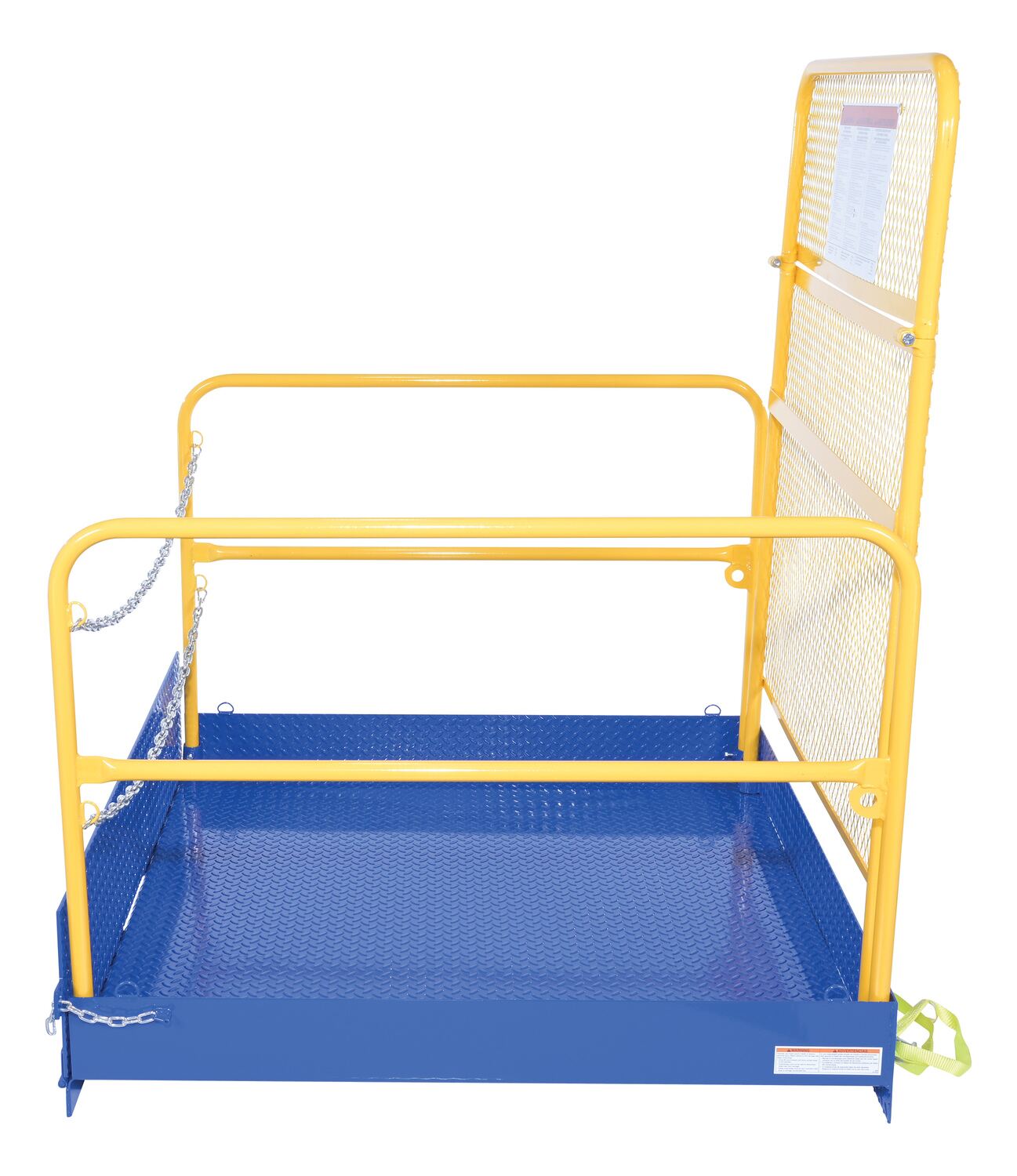

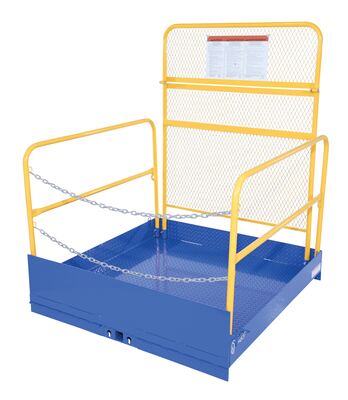

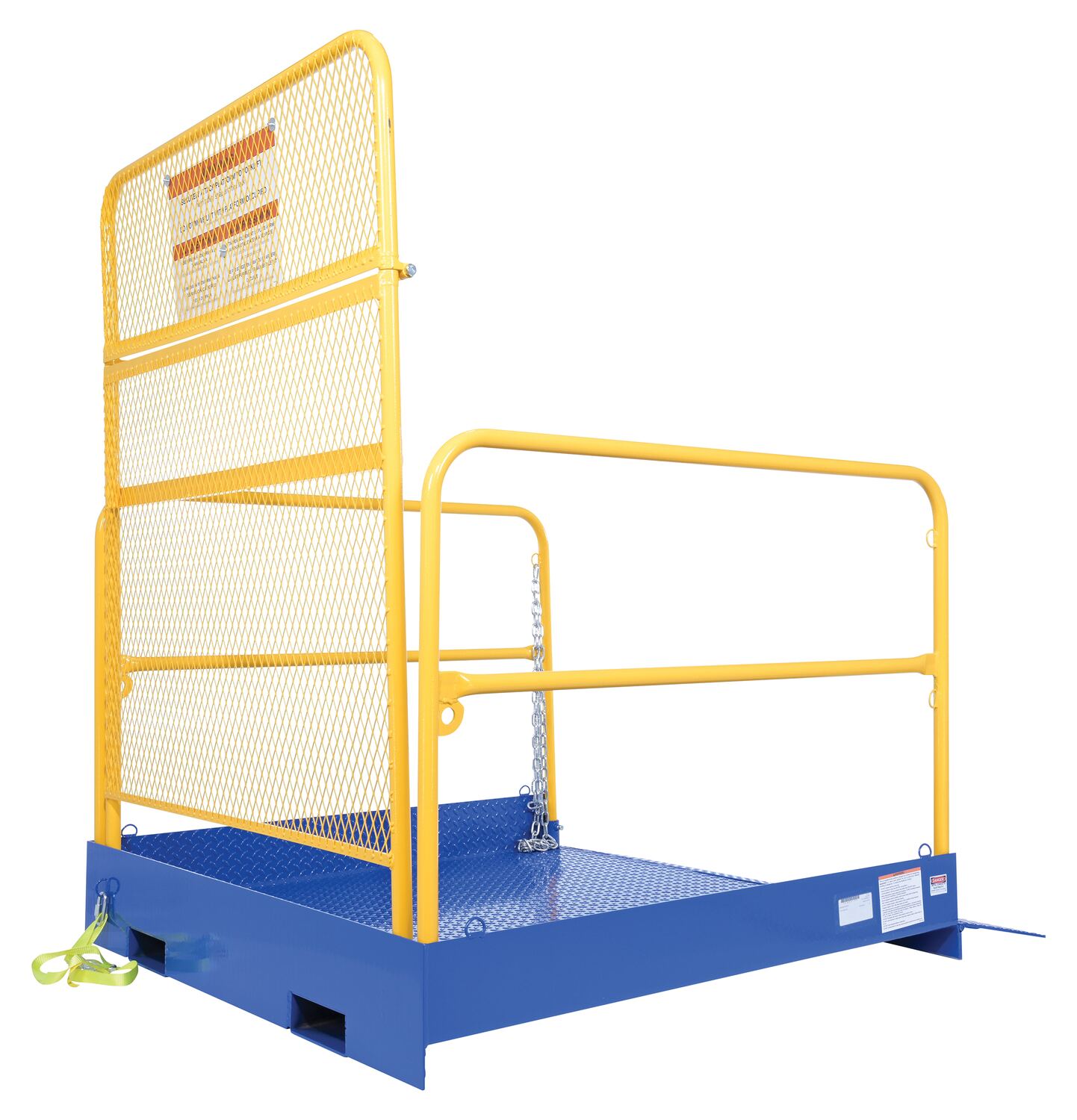

Steel Economical Portable Loading Platform with Handrails 54 In. x 54 In. 2000 Lb. Capacity Blue

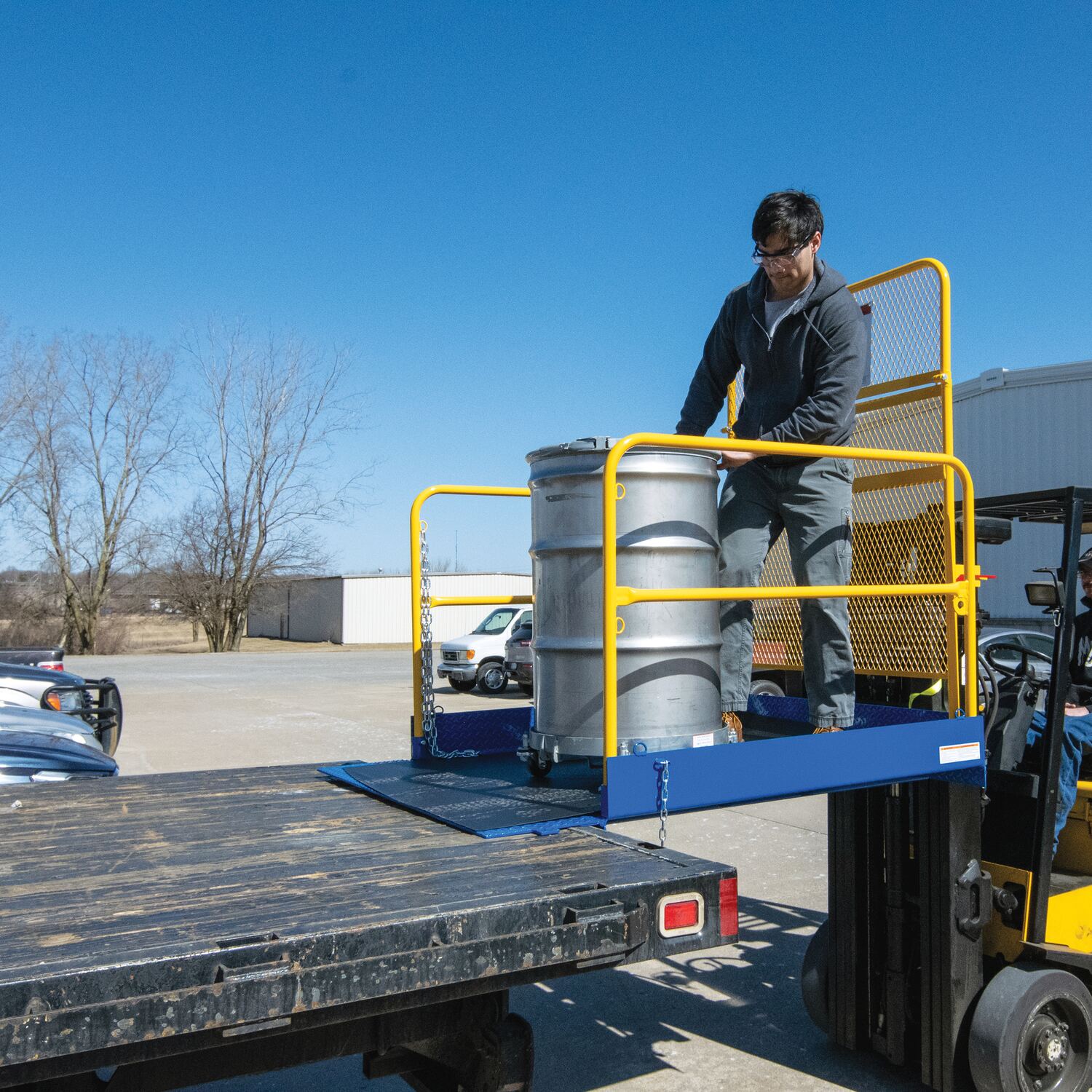

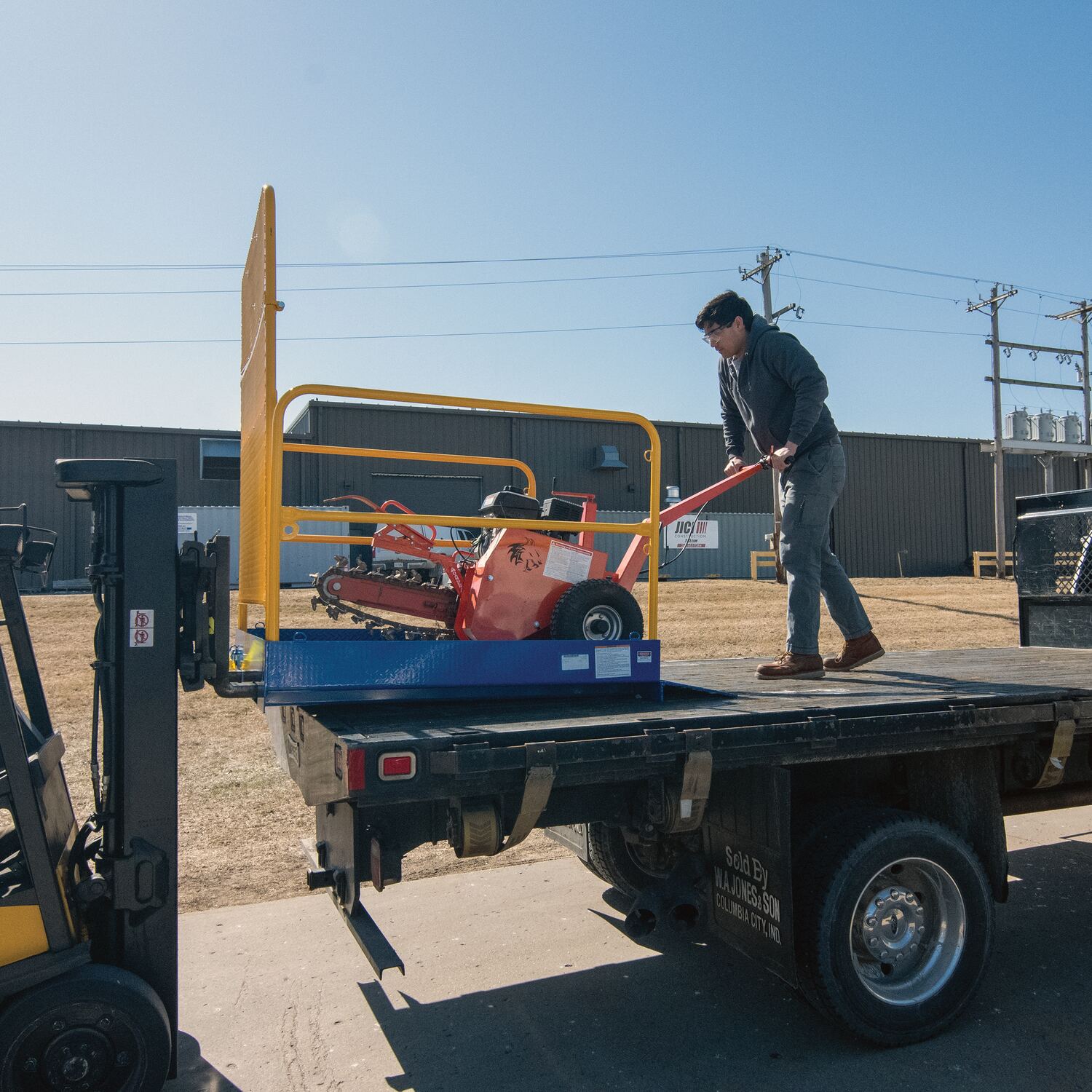

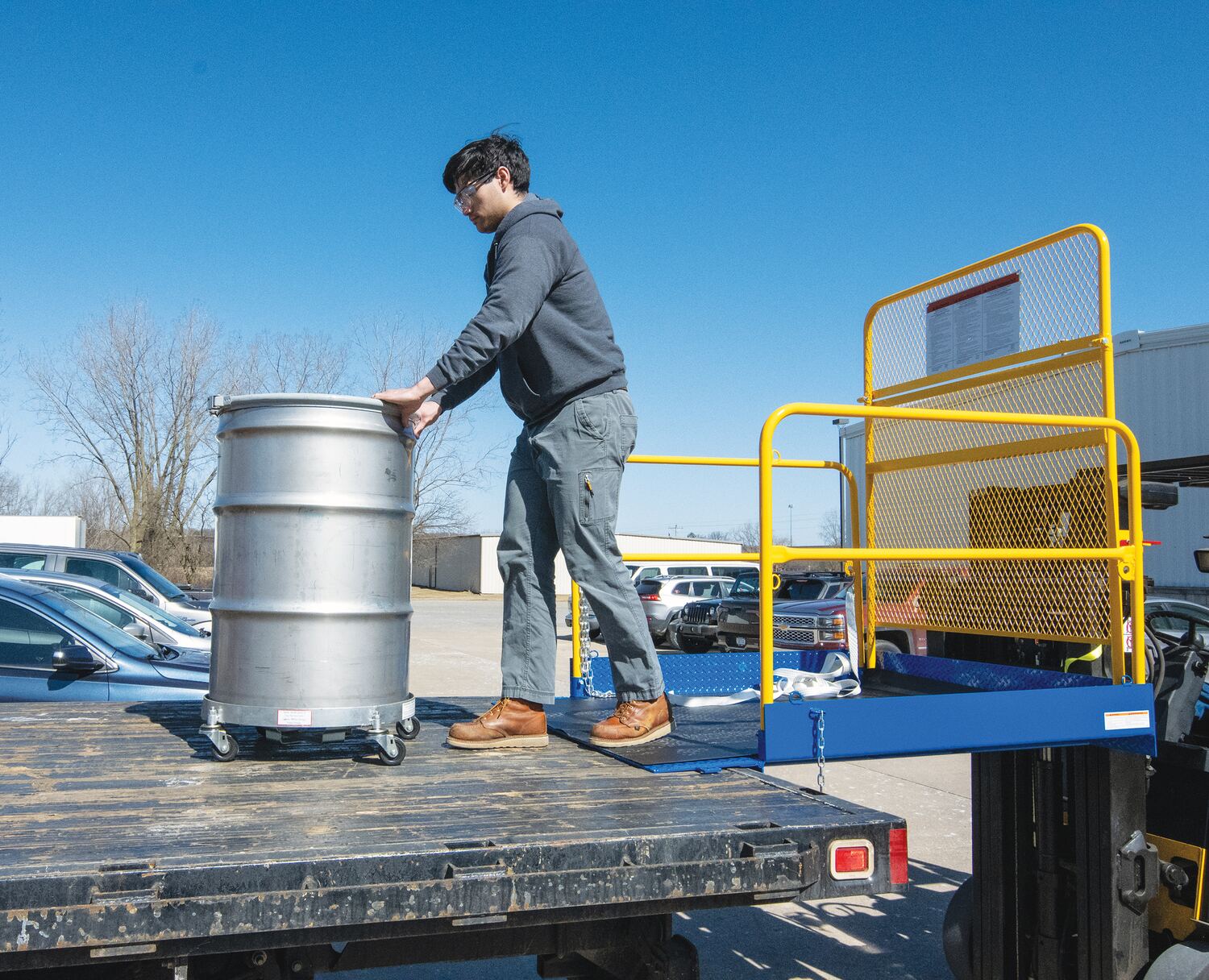

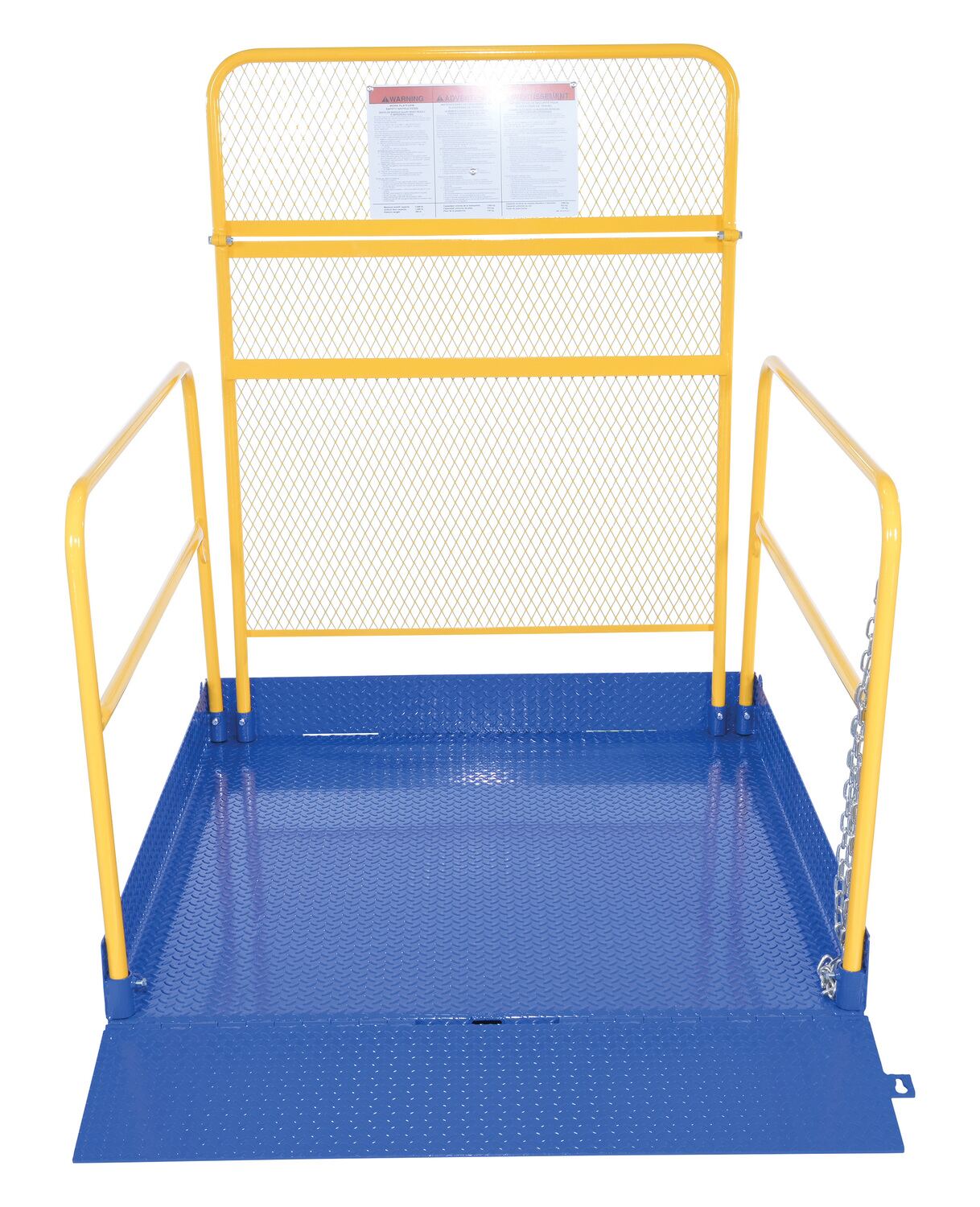

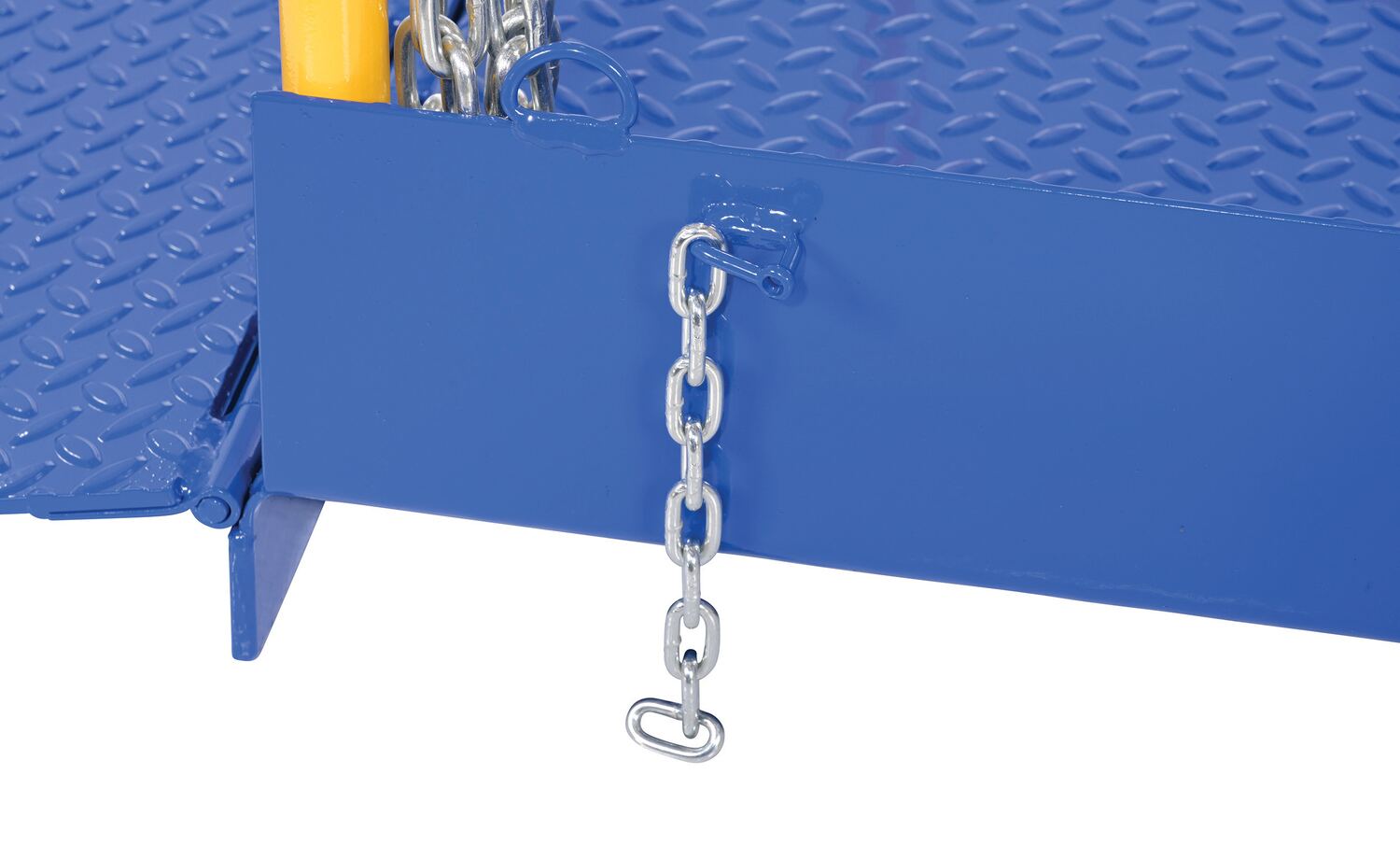

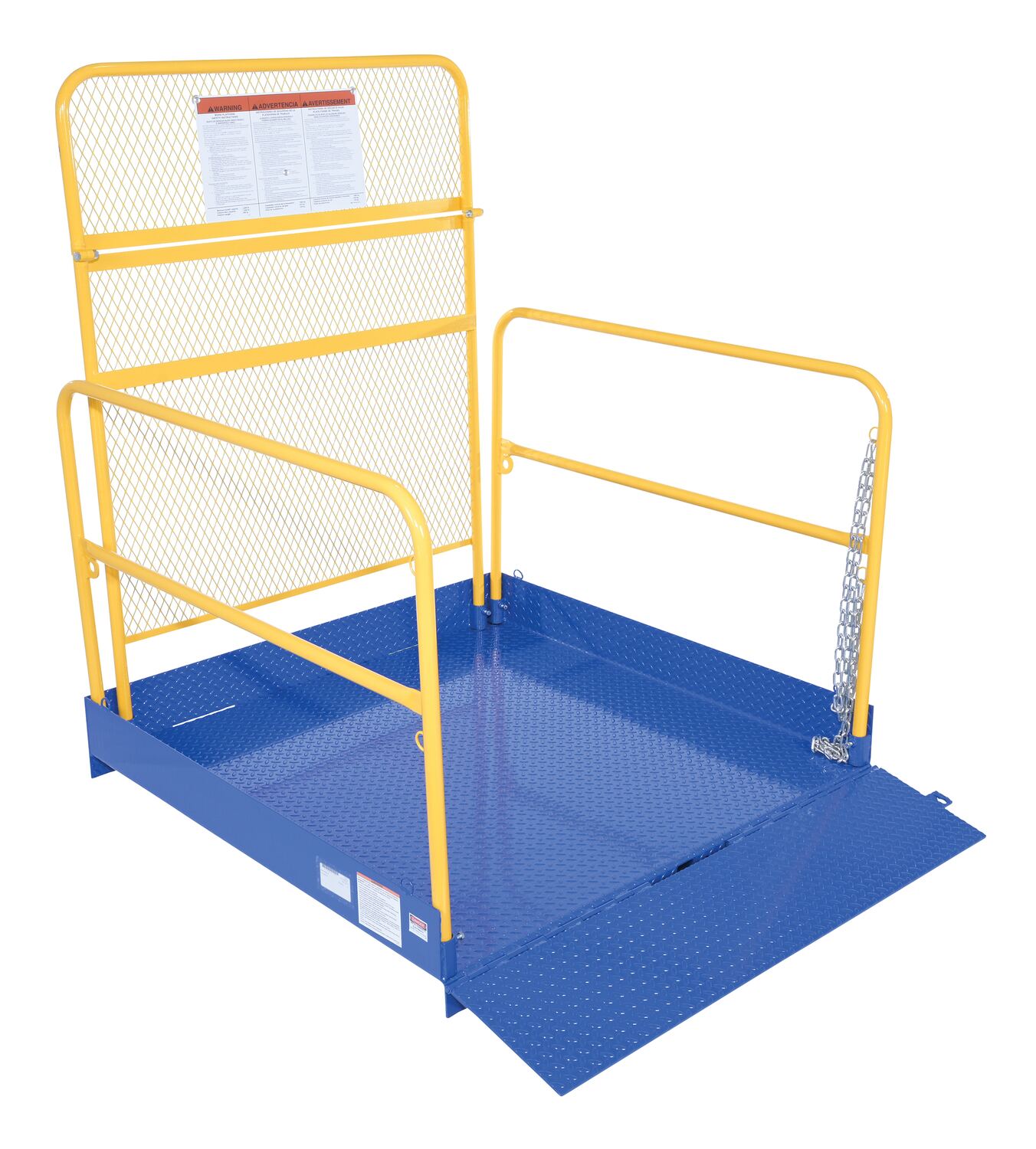

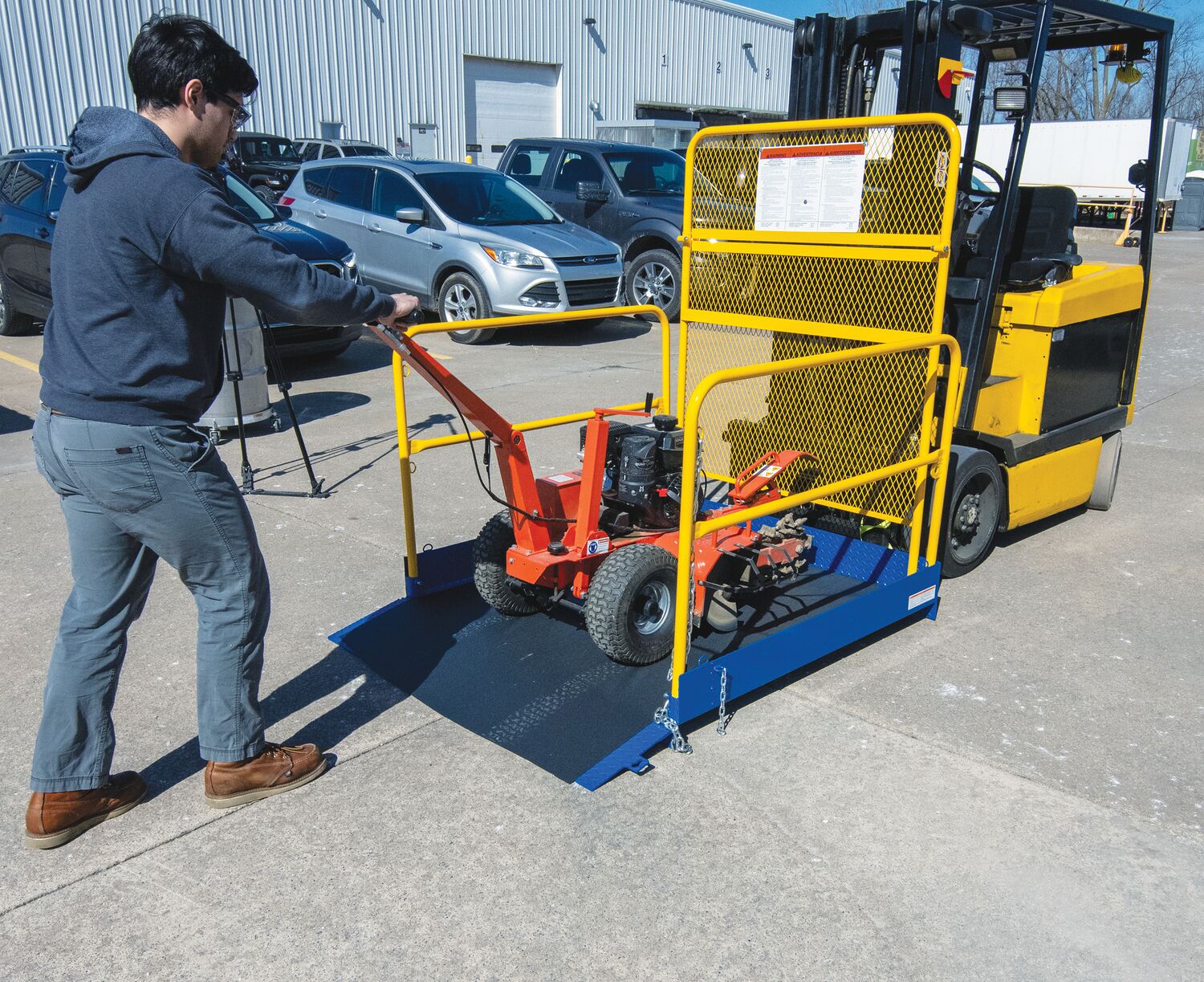

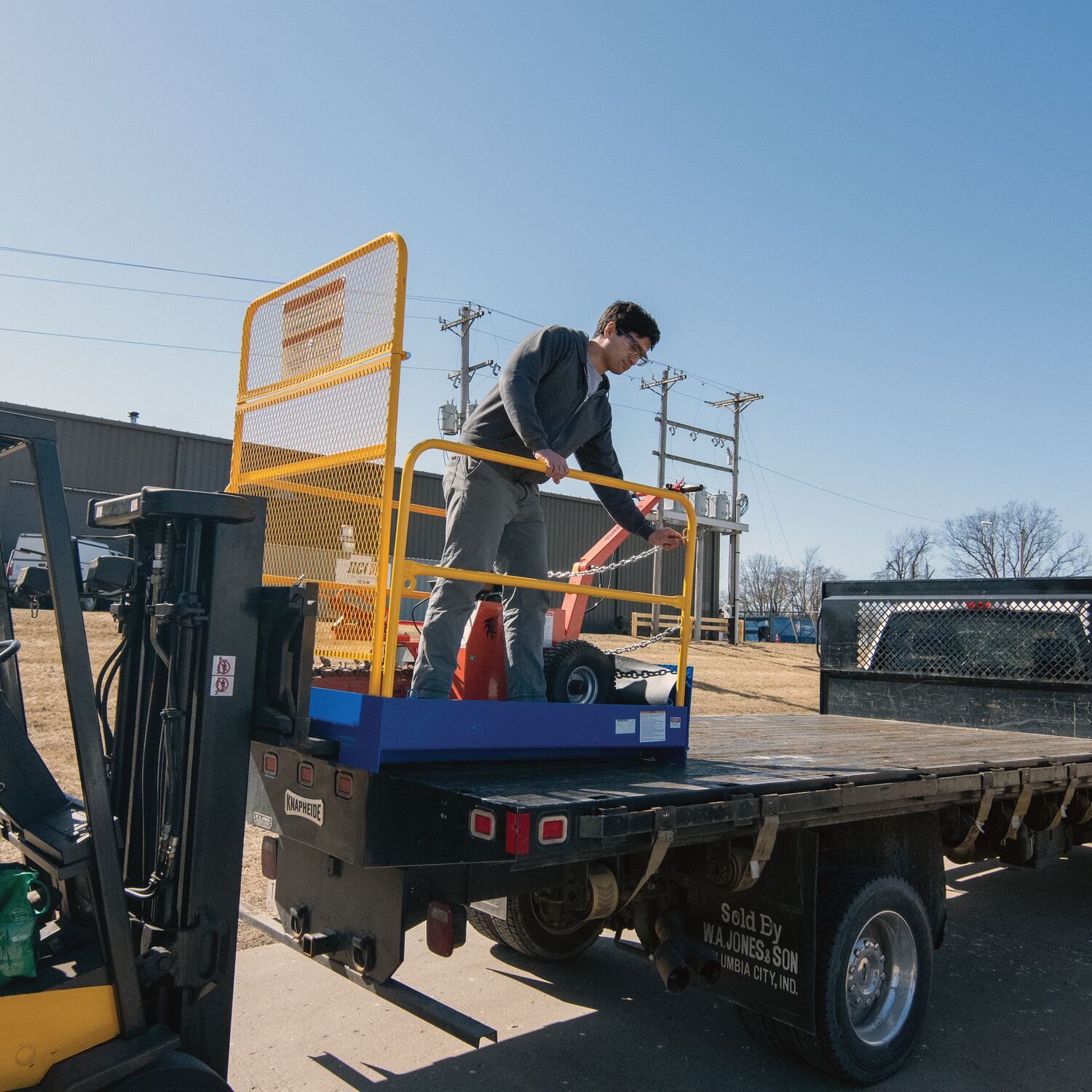

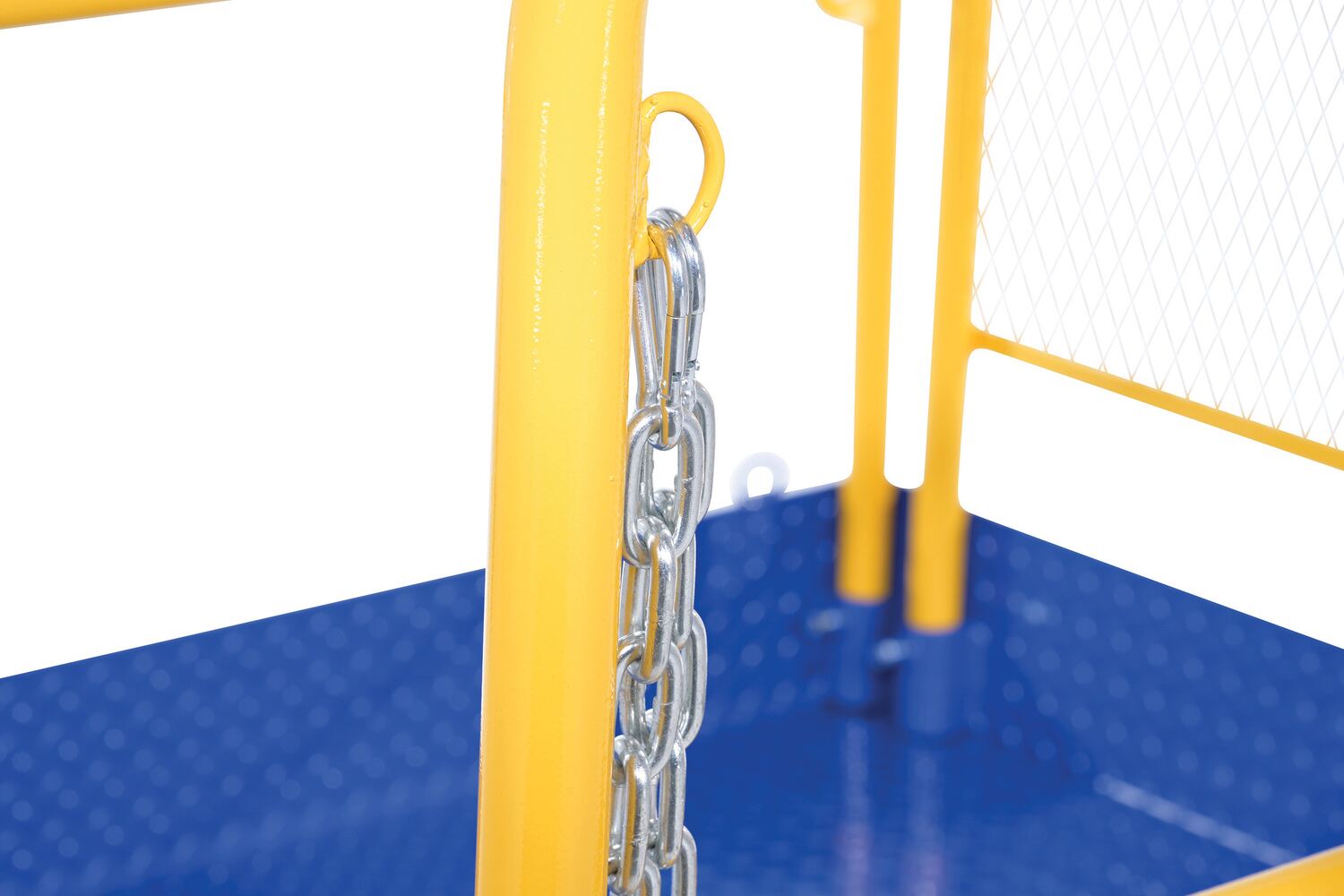

This loading platform for fork trucks allows fork trucks to load/unload items into trucks and trailers. Maximum uniform weight capacity is dependent on fork truck capacity. Includes fold-down lip to help with transition. Side guard toe boards. Four (4) tie-down rings are included for securing equipment (tie downs not included). Diamond tread plate floor for extra traction. Handrails on two (2) sides, back mesh screen and chain to secure open end. safety strap (included) to secure platform to fork truck. Steel construction with blue baked-in powder-coated toughness.

  • Loading platform allows fork trucks to load/unload items with ease

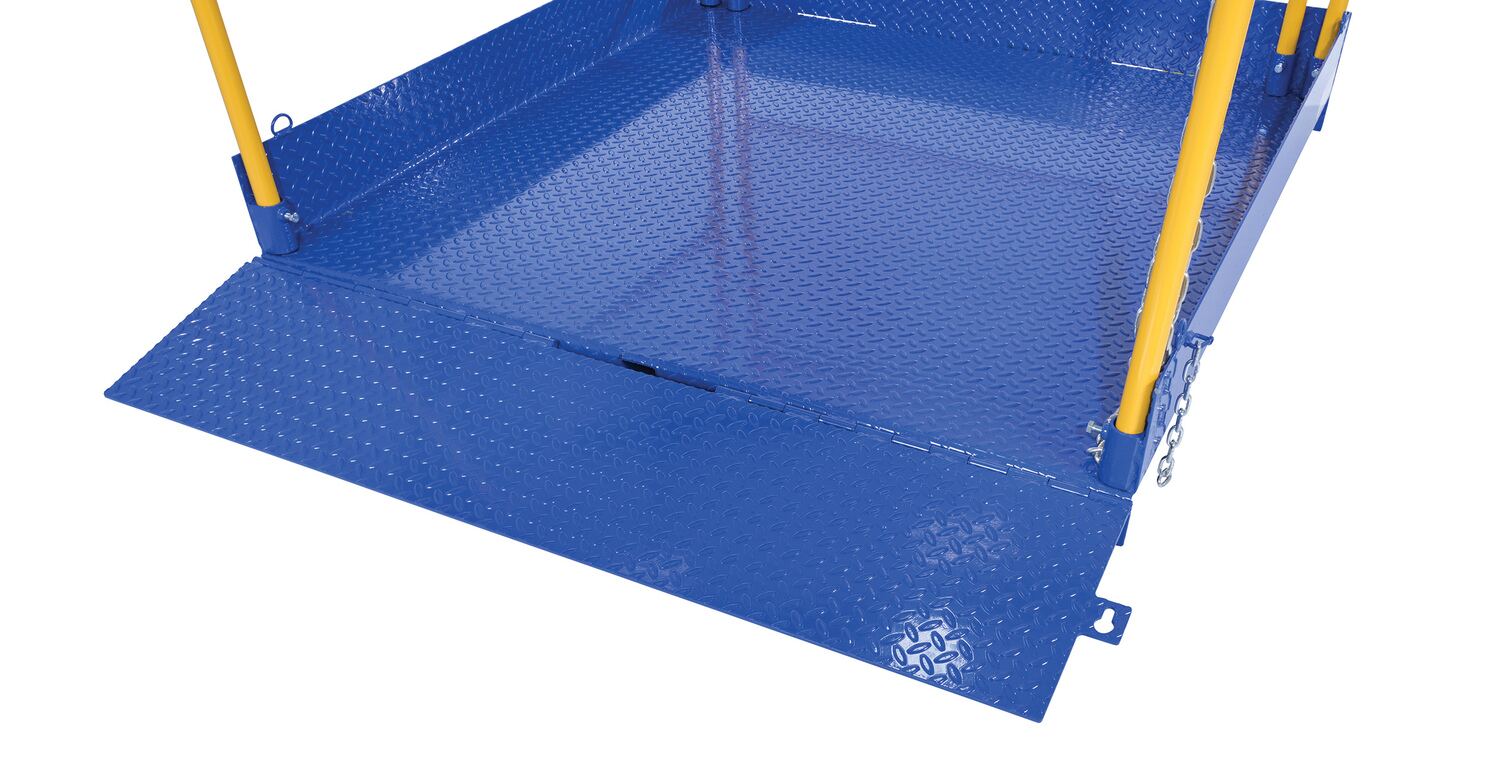

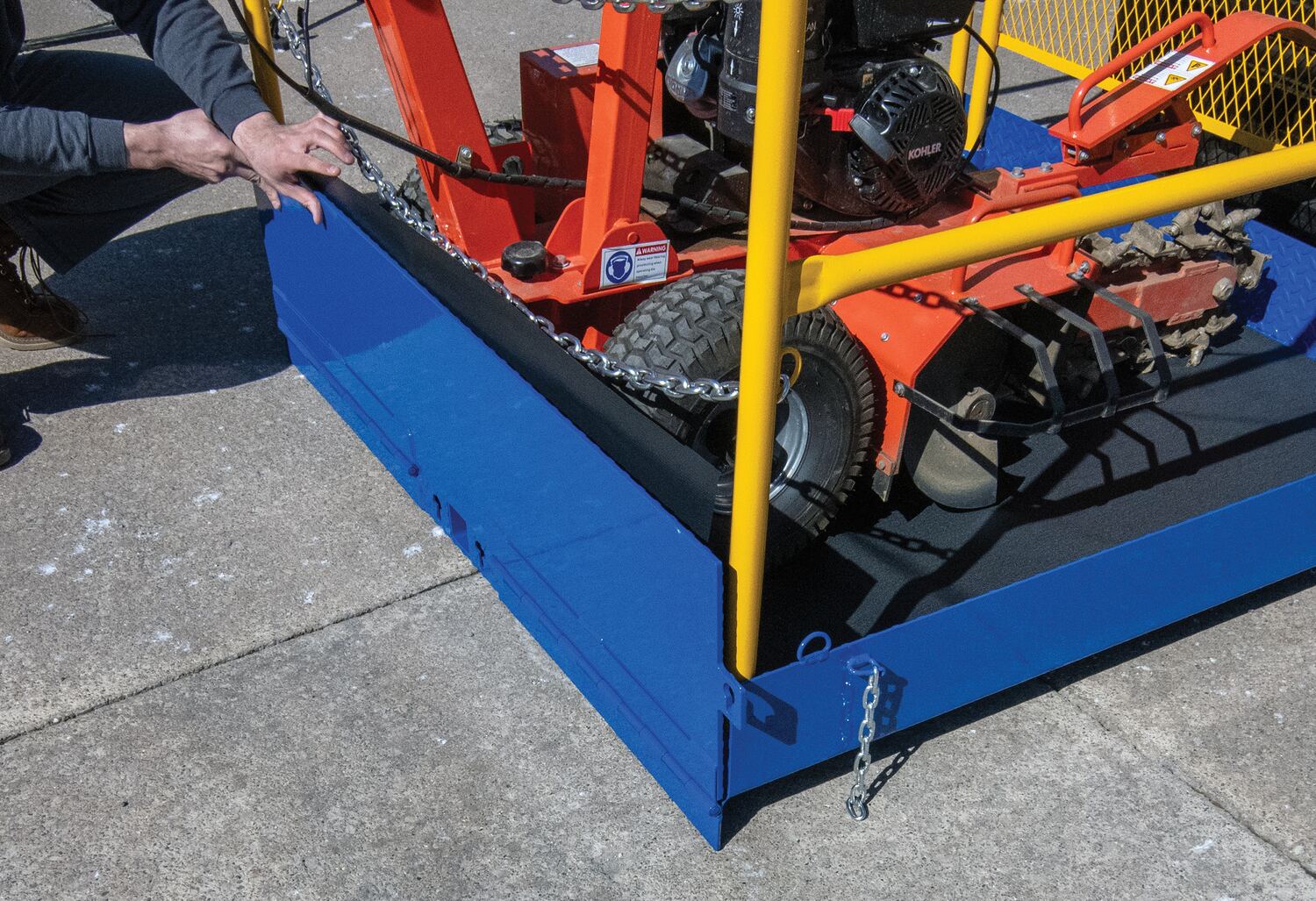

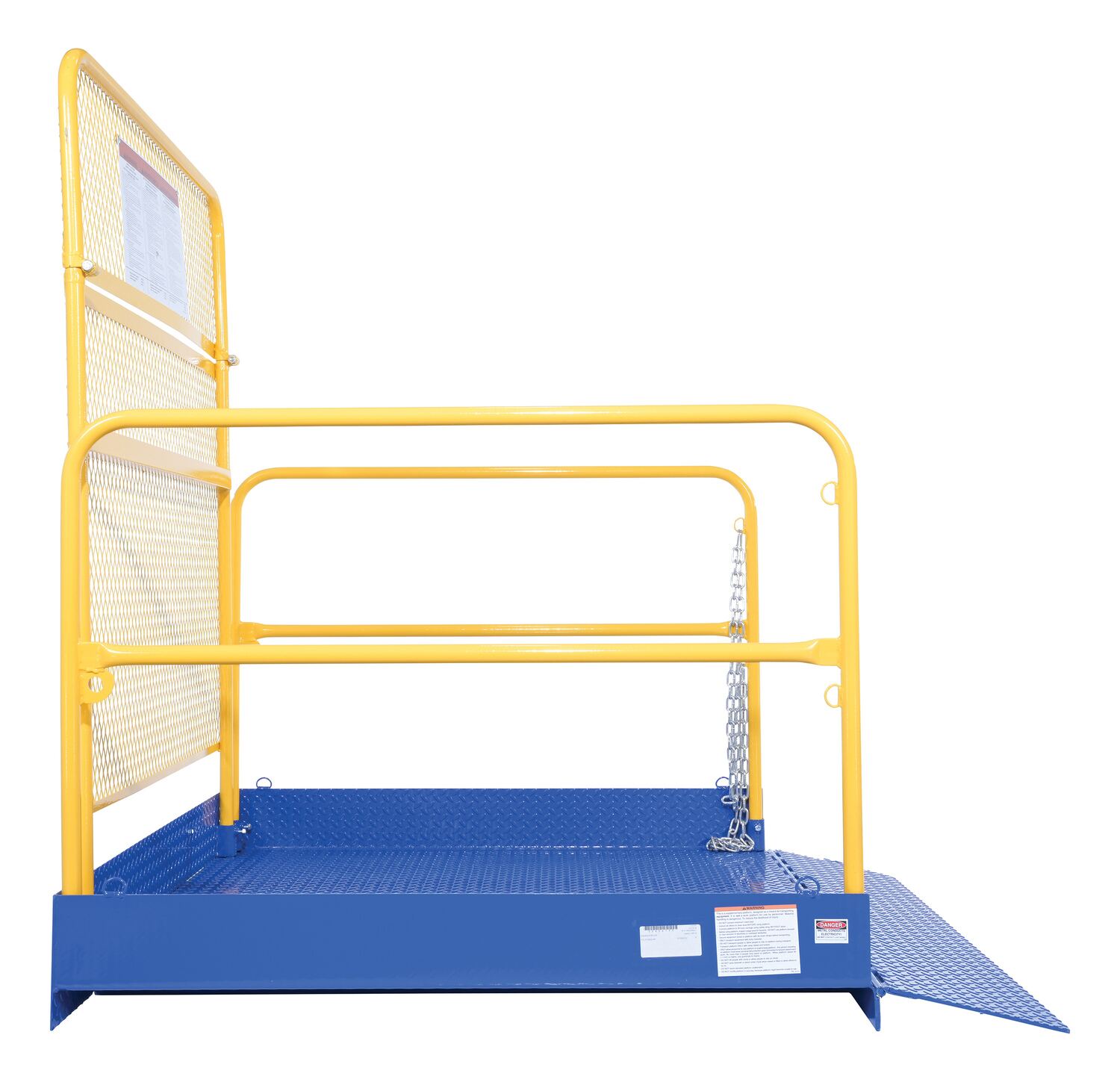

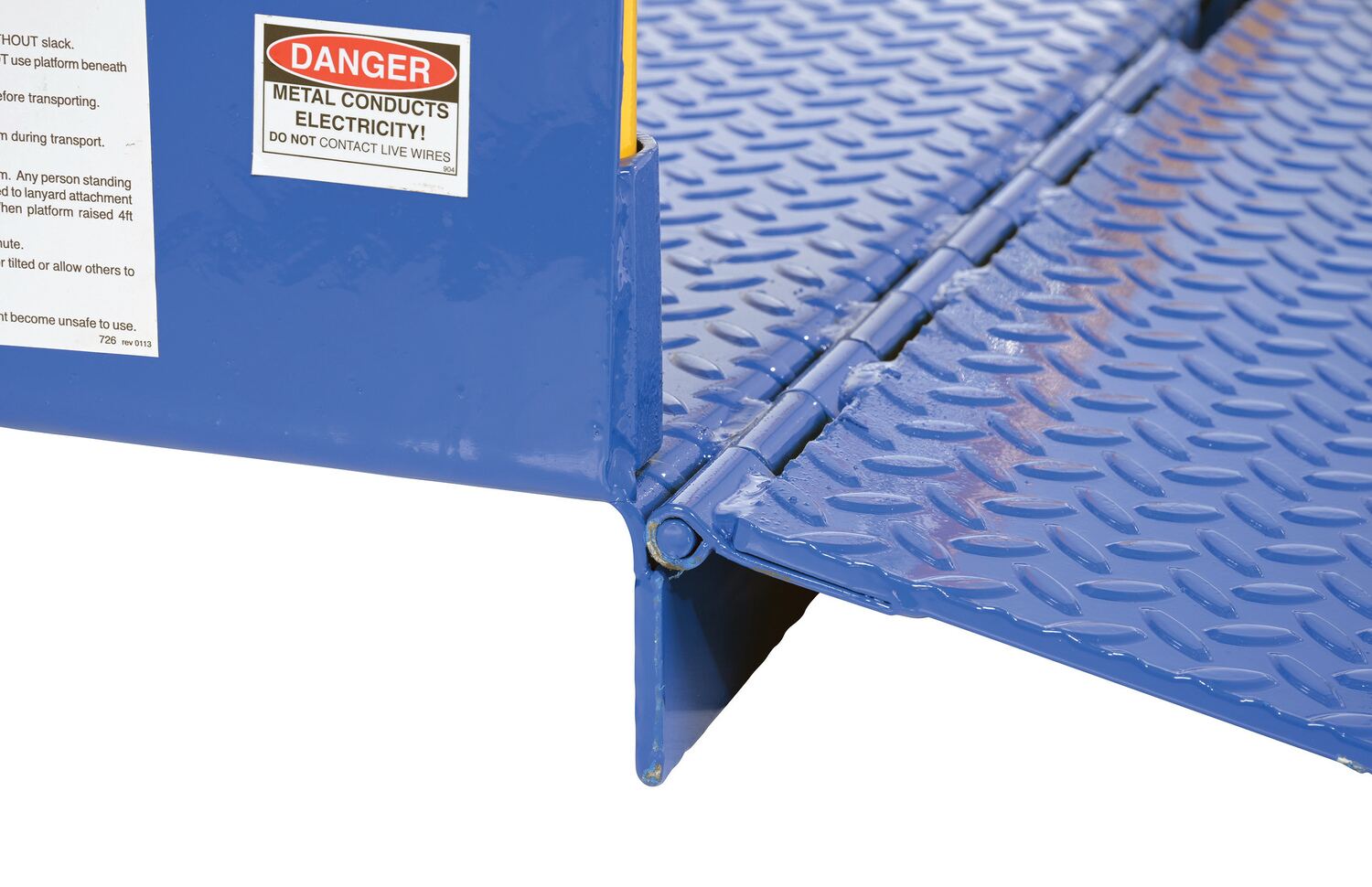

  • Includes fold-down lip to help with transition and side guard toe boards for optimal safety

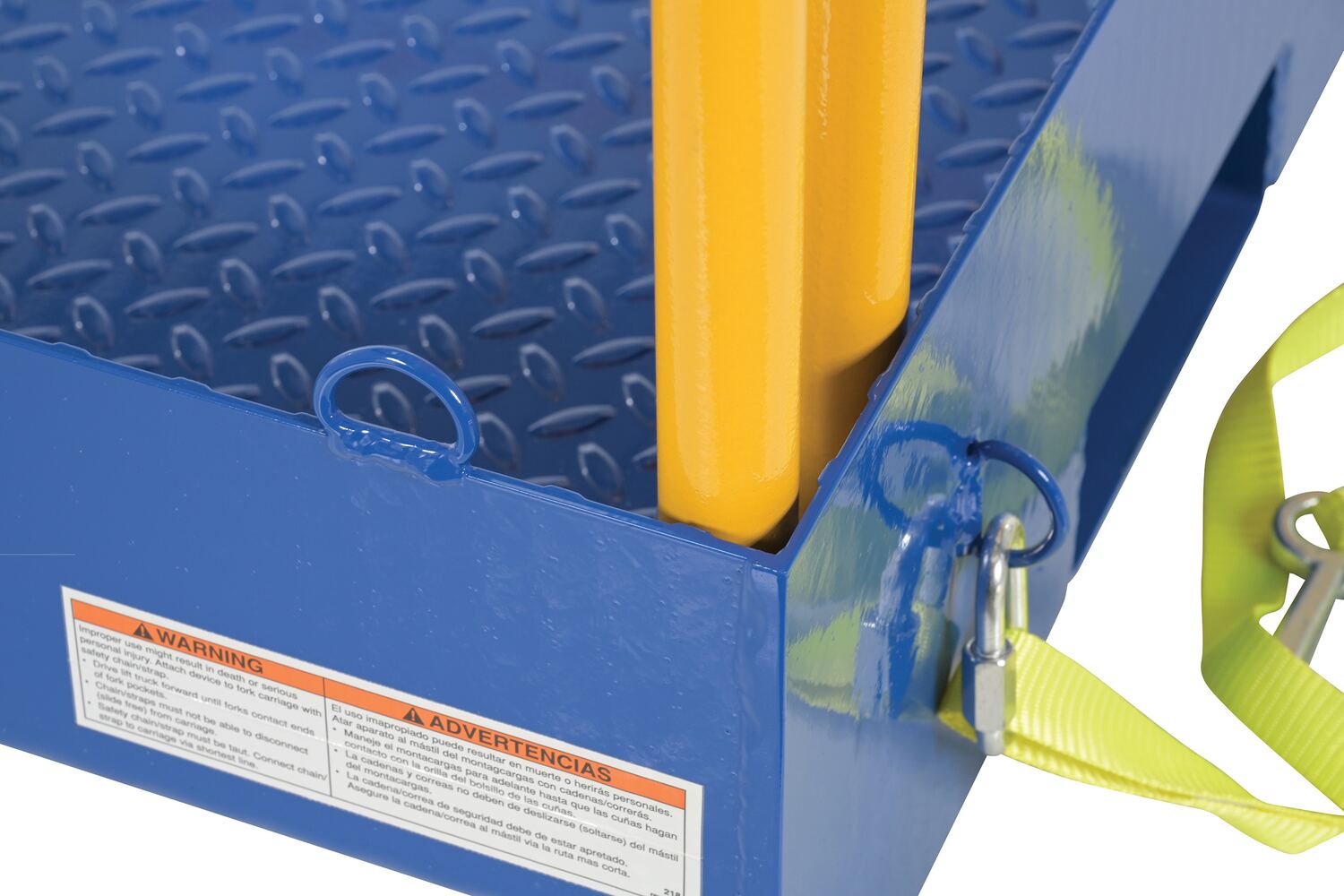

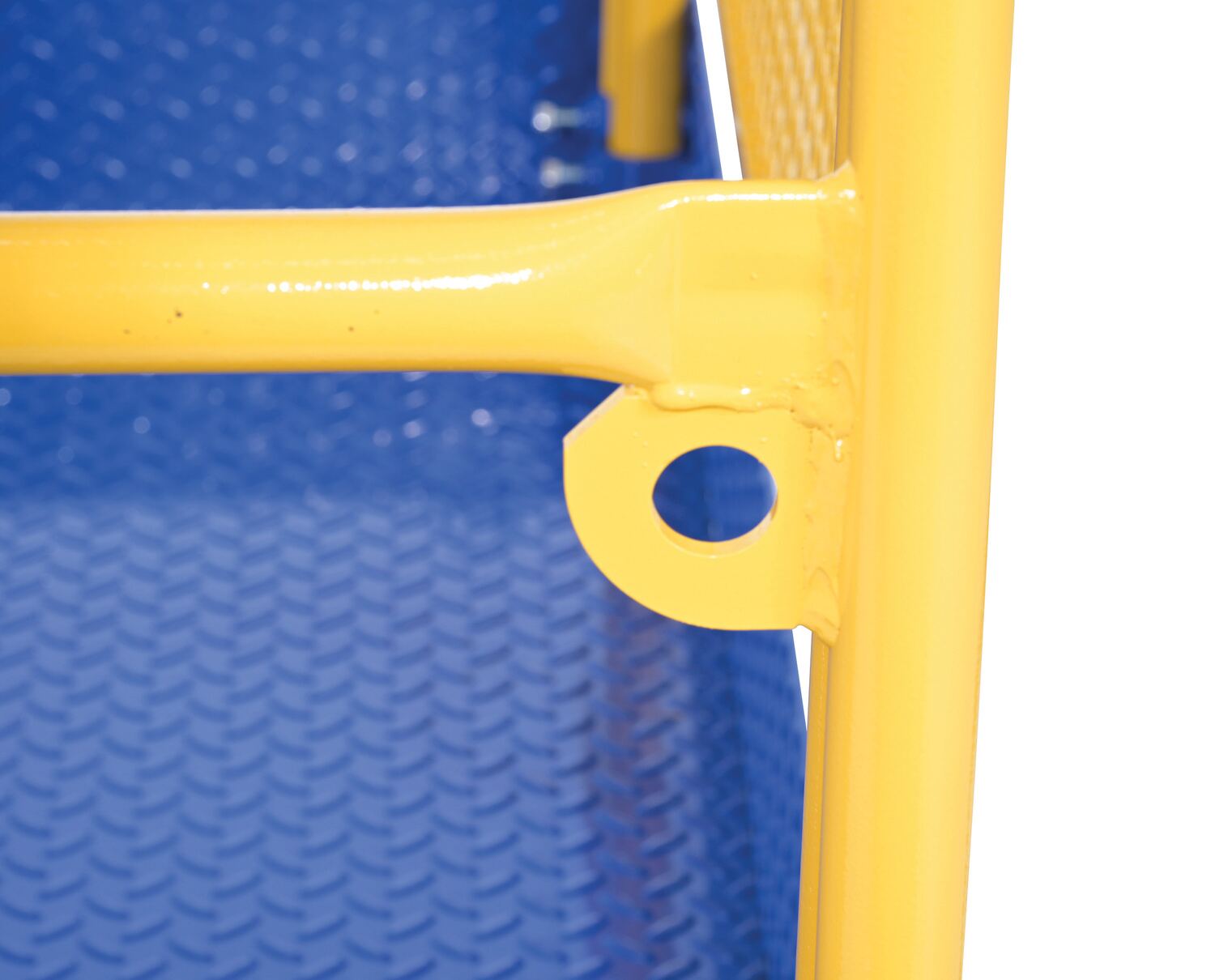

  • Four tie-down rings are included for securing equipment
  • Diamond tread plate floor for extra traction and safety strap to secure platform to fork truck
Total Ship Wt.(lbs.): 460 (only 1 package) Size: 54.5"W x 54"L x 68.4375"H Color: Blue

Uniform Capacity (lb.): 2,000 Lip Height (in.): 12 Toeboard Height (in.): 6
Fork Pocket Width (in.): 7-1/2 Fork Pocket Height (in.): 2-1/2 Usable Platform Width (in.): 51
Usable Platform Length (in.): 48-1/2 Strap Length (in.): 48 OSHA: 1910.178

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FTLP-5454-HR
FTLP-5454-HR

Steel Economical Portable Loading Platform with Handrails 54 In. x 54 In. 2000 Lb. Capacity Blue

This loading platform for fork trucks allows fork trucks to load/unload items into trucks and trailers. Maximum uniform weight capacity is dependent on fork truck capacity. Includes fold-down lip to help with transition. Side guard toe boards. Four (4) tie-down rings are included for securing equipment (tie downs not included). Diamond tread plate floor for extra traction. Handrails on two (2) sides, back mesh screen and chain to secure open end. safety strap (included) to secure platform to fork truck. Steel construction with blue baked-in powder-coated toughness.

  • Loading platform allows fork trucks to load/unload items with ease
  • Includes fold-down lip to help with transition and side guard toe boards for optimal safety
  • Four tie-down rings are included for securing equipment
  • Diamond tread plate floor for extra traction and safety strap to secure platform to fork truck
Dimensions: 54.5"W x 54"L x 68.4375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215087568 GTIN: 00691215087568
Warranty: -- Shipping Weight: 460 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Lip Height (in.): 12 Toeboard Height (in.): 6
Fork Pocket Width (in.): 7-1/2 Fork Pocket Height (in.): 2-1/2 Usable Platform Width (in.): 51
Usable Platform Length (in.): 48-1/2 Strap Length (in.): 48 OSHA: 1910.178
