FL-LK-8EM

Steel Floor Lock 9-1/2 to 10-1/8 In. Height Silver

Floor locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1." off the floor when retracted.

  • Lock constricts movement of unit
  • Attachable to moving platform carts
  • Simple locking and unlocking function
  • Able to be used on rough surfaces
Total Ship Wt.(lbs.): 5 (only 1 package) Size: 4.3125"W x 6.25"L x 10.5"H Color: Silver

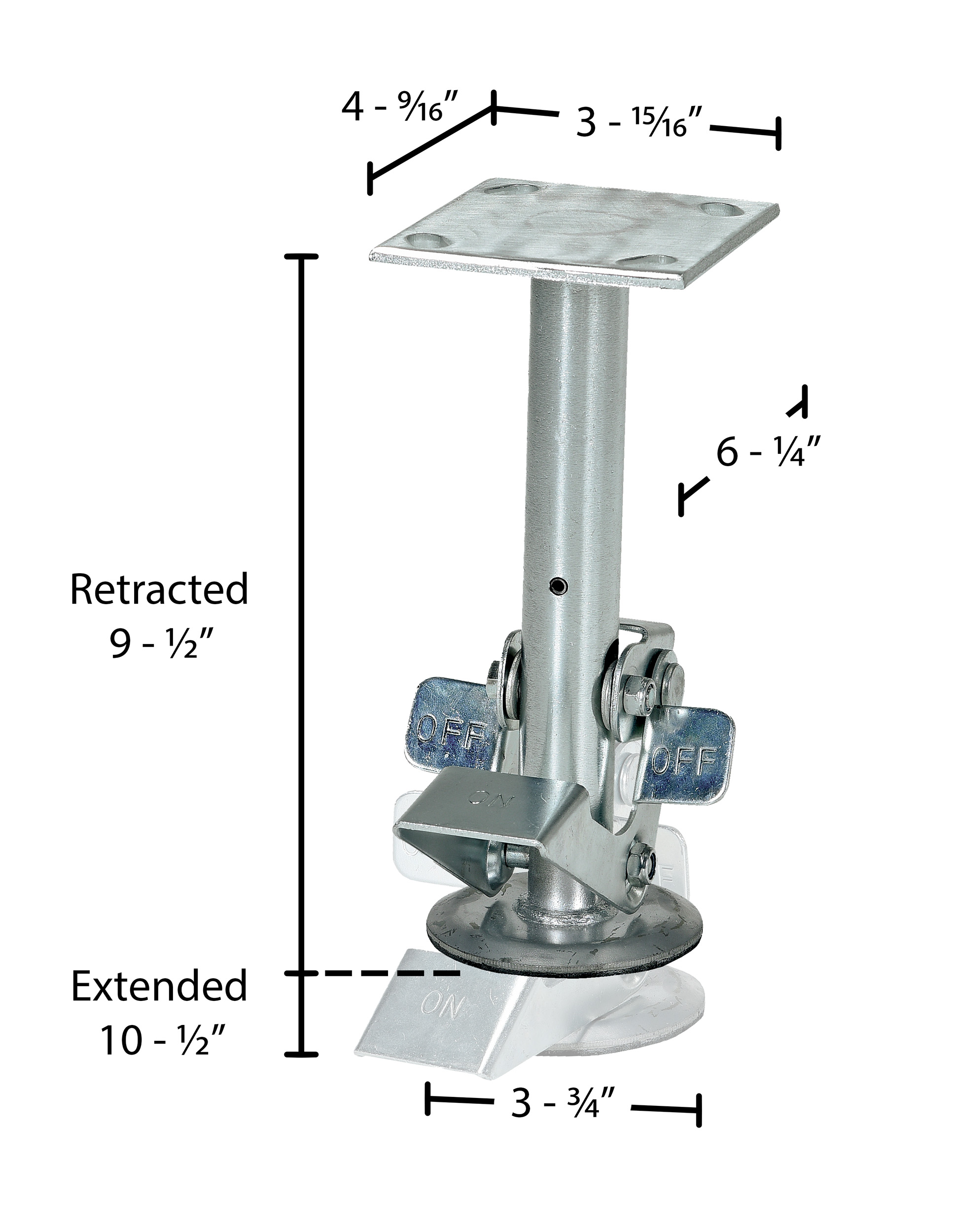

Mounting Height (in.): 10-1/8 Retracted Height (in.): 9-1/2 Used with Caster Size (in.): 8
Pad Mounting Height Retracted (in.): 1-1/2 Type: Foot pedal Mounting Type: Top Plate
Base Plate Width (in.): 3-15/16 Base Plate Length (in.): 4-9/16 Base Plate Mounting Holes (qty.): 4
Slotted Mounting Hole Width/Height (in.): 7/16 x 3/4 Inside Bolt Hole Spacing (in.): 2-9/16 X 3-1/4 Outside Bolt Hole Spacing (in.): 3 X 3-5/8
Plate Thickness (in.): 1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FL-LK-8EM
FL-LK-8EM

Steel Floor Lock 9-1/2 to 10-1/8 In. Height Silver

Floor locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1." off the floor when retracted.

  • Lock constricts movement of unit
  • Attachable to moving platform carts
  • Simple locking and unlocking function
  • Able to be used on rough surfaces
Dimensions: 4.3125"W x 6.25"L x 10.5"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215120456 GTIN: 00691215120456
Warranty: -- Shipping Weight: 5 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Mounting Height (in.): 10-1/8 Retracted Height (in.): 9-1/2 Used with Caster Size (in.): 8
Pad Mounting Height Retracted (in.): 1-1/2 Type: Foot pedal Mounting Type: Top Plate
Base Plate Width (in.): 3-15/16 Base Plate Length (in.): 4-9/16 Base Plate Mounting Holes (qty.): 4
Slotted Mounting Hole Width/Height (in.): 7/16 x 3/4 Inside Bolt Hole Spacing (in.): 2-9/16 X 3-1/4 Outside Bolt Hole Spacing (in.): 3 X 3-5/8
Plate Thickness (in.): 1/4
