FHS-2-20-VG

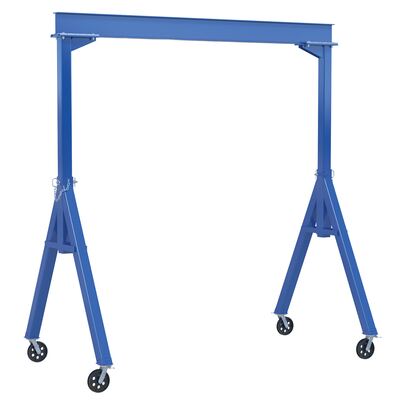

Steel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 2000 Lb. Capacity Blue

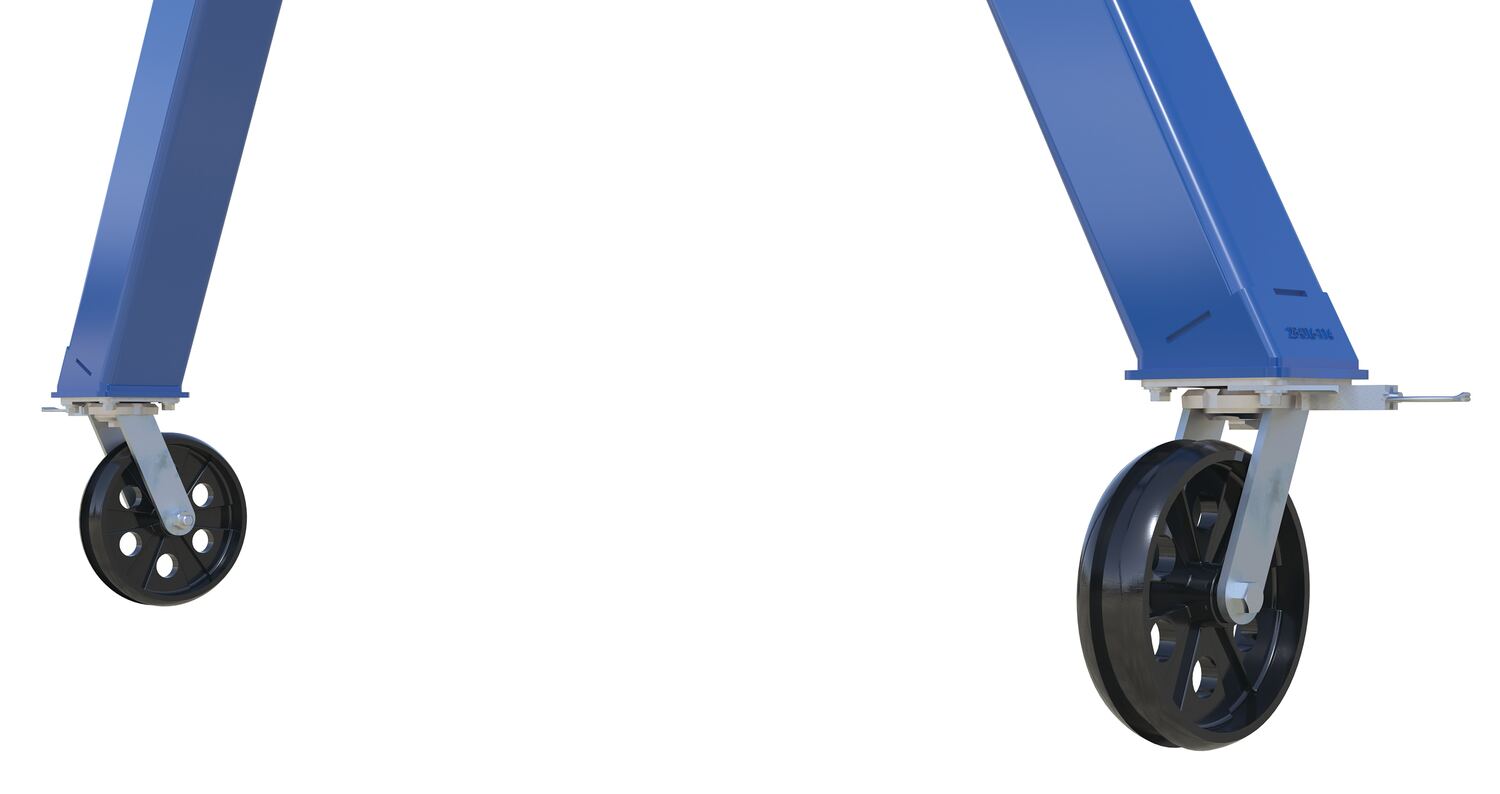

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Total Ship Wt.(lbs.): 1044 (Multiple Packages: P1: 624 lbs + P2: 420 lbs) Size: 64.5"W x 240"L x 130.3125"H Color: Blue

Uniform Capacity (lbs.): 2000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Cast Iron Beam Height (in): 10.125
Beam Length (in): 240 Usable Beam Length (in): 209.75 Flange Width (in): 4
Base Width (in): 64.5 Base Length (in): 229.25 Maximum Overall Height (in): 130.313
Adjustable Height: No Maximum Clearance (in): 120

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHS-2-20-VG
FHS-2-20-VG

Steel Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 2000 Lb. Capacity Blue

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Dimensions: 64.5"W x 240"L x 130.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215367561 GTIN: 00691215367561
Warranty: -- Shipping Weight: 624 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 2000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Cast Iron Beam Height (in): 10.125
Beam Length (in): 240 Usable Beam Length (in): 209.75 Flange Width (in): 4
Base Width (in): 64.5 Base Length (in): 229.25 Maximum Overall Height (in): 130.313
Adjustable Height: No Maximum Clearance (in): 120
