Model Details

FE-4-60-P

Printer Friendly
FE-4-60-P

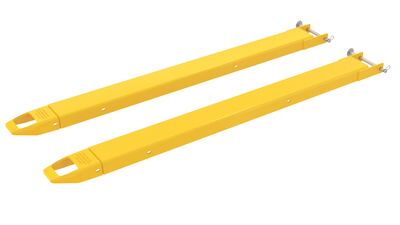

Steel Pin Style Fork Extensions 4 In. x 60 In. 4000 Lb. Capacity Yellow

Provide the extra support needed to lift long or large objects with a fork truck using a pair of fork extensions. Welded steel construction with cast steel tips. Steel retaining strap prevents fork extensions from sliding off forks during use. Powder coat yellow finish. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Remove pin and lay extension over fork or drive fork truck into the extension. Re-insert the pin behind the heel of the fork to secure extension. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability
Total Ship Wt.(lbs.): 94 (Multiple Packages: P1: 47 lbs + P2: 47 lbs) Size: 9.5"W x 63.125"L x 2.3125"H Color: Yellow

Capacity Per Pair Evenly Distributed (lb.): 4000 Overall Width With Retaining Pin (in.): 9-1/2 Width (in.): 5-1/8
Usable Width (in.): 4-1/2 Overall Length (in.): 63-5/8 Usuable Length (in.): 60
Designed to Fit fork Size (in.): 4 x 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FE-4-60-P
FE-4-60-P

Steel Pin Style Fork Extensions 4 In. x 60 In. 4000 Lb. Capacity Yellow

Provide the extra support needed to lift long or large objects with a fork truck using a pair of fork extensions. Welded steel construction with cast steel tips. Steel retaining strap prevents fork extensions from sliding off forks during use. Powder coat yellow finish. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Remove pin and lay extension over fork or drive fork truck into the extension. Re-insert the pin behind the heel of the fork to secure extension. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability
Dimensions: 9.5"W x 63.125"L x 2.3125"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215369404 GTIN: 00691215369404
Warranty: -- Shipping Weight: 47 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Capacity Per Pair Evenly Distributed (lb.): 4000 Overall Width With Retaining Pin (in.): 9-1/2 Width (in.): 5-1/8
Usable Width (in.): 4-1/2 Overall Length (in.): 63-5/8 Usuable Length (in.): 60
Designed to Fit fork Size (in.): 4 x 2
