EHLTG-5284-3-54

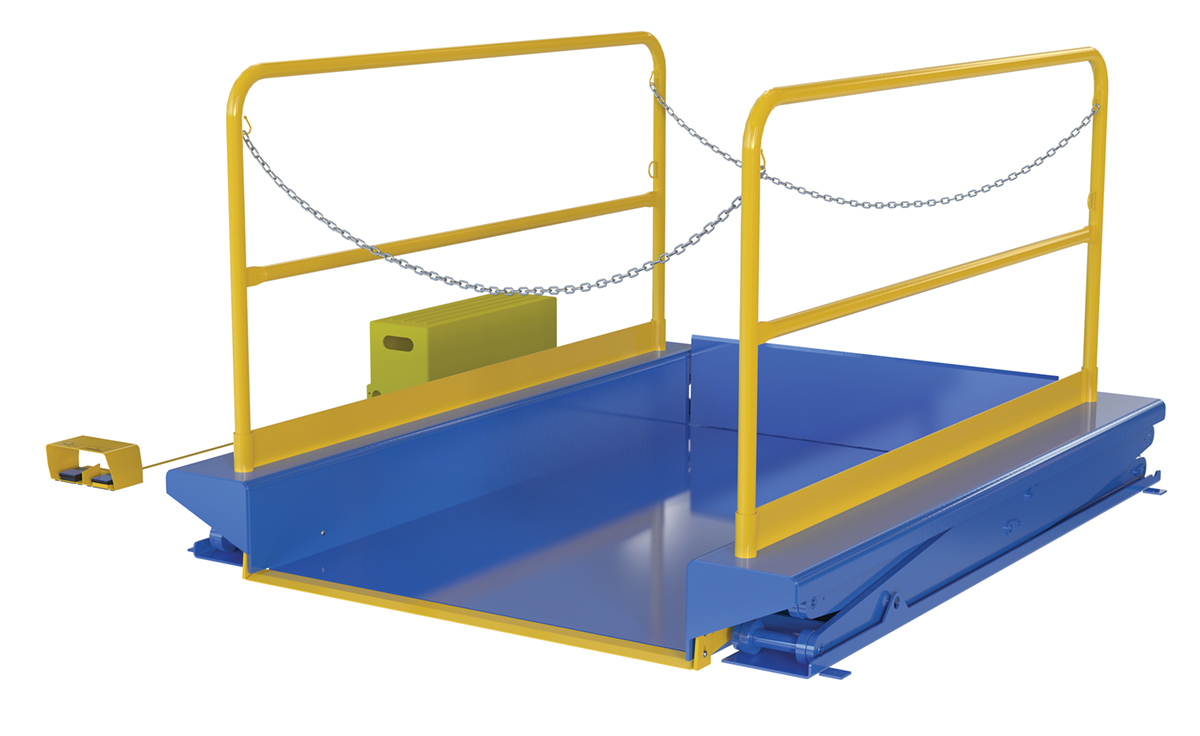

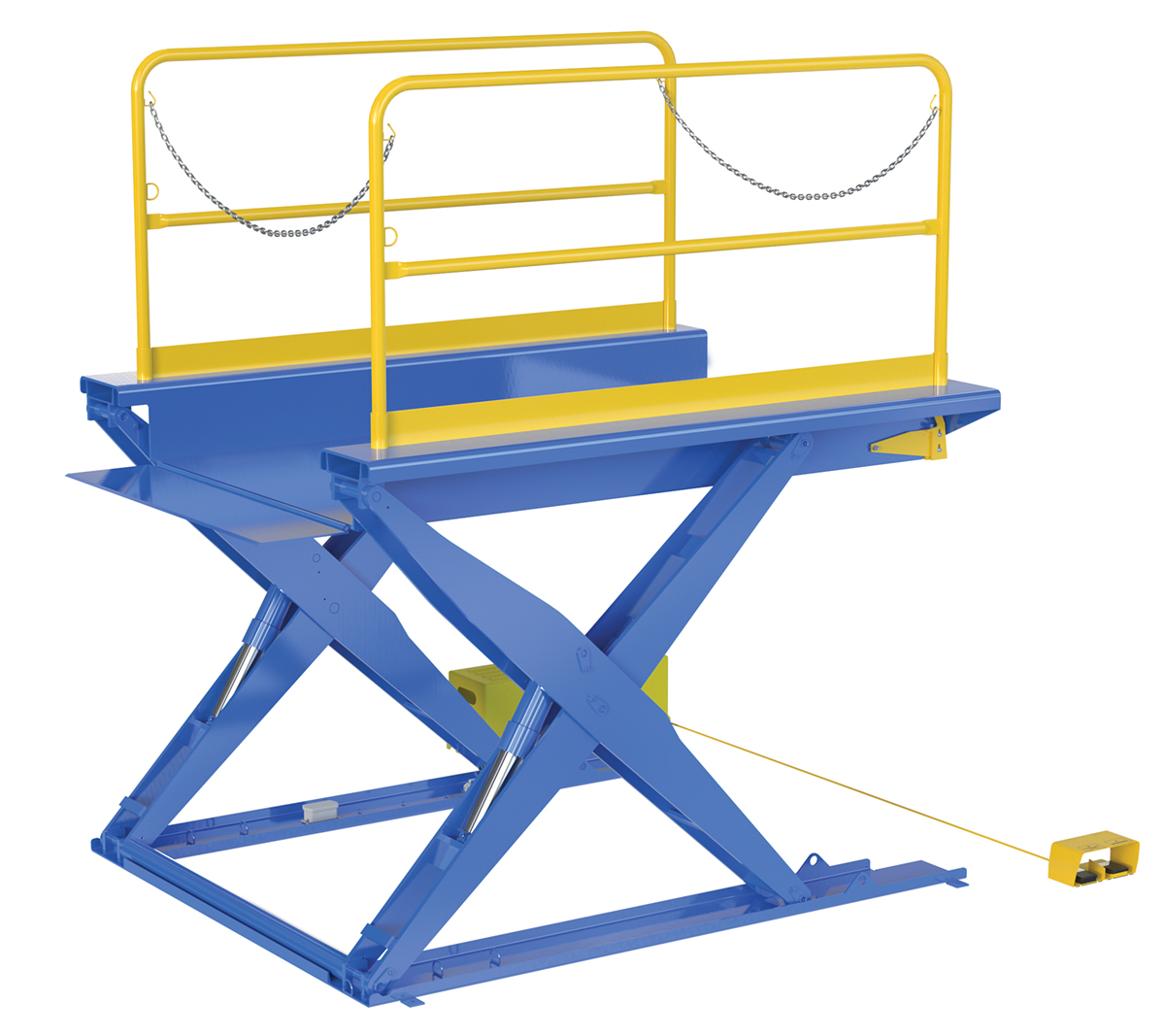

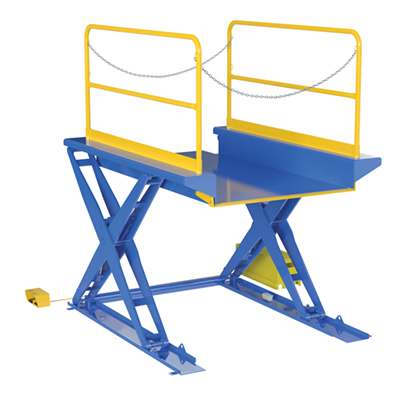

Steel Ground Lift Scissor Table 52 In. x 84 In. 3000 Lb. Capacity Blue

The ground lift scissor table is designed for use when fork trucks are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed standard with additional voltage options available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features entry-side electric toe guard to protect pinch points
  • Guardrails for stability and support
  • Remote power unit can be located up to eight feet away from the table
Total Ship Wt.(lbs.): 3044 (only 1 package) Size: 78.6875"W x 92"L x 54"H Color: Blue / Yellow Non-Returnable

Power Source: Electric - Corded Maximum Height (in): 54 Minimum Height (in): 1/2
Maximum Travel Distance (in): 53-1/2 Operation Method: Foot Operated Overload Protection: Yes
Lifting Speed (sec/ft): 32 Horsepower (hp): 2 Phase: Three Phase
Voltage (V): 460 Power Cord Length (ft): 8 Installation Hardware Included: Not Required
Usable length (in.): 83-5/8 Usable Width (in.): 52 Overall Length (in.): 92
Overall Width (in.): 78-11/16 Capacity (lbs.): 3000

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTG-5284-3-54
EHLTG-5284-3-54

Steel Ground Lift Scissor Table 52 In. x 84 In. 3000 Lb. Capacity Blue

The ground lift scissor table is designed for use when fork trucks are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed standard with additional voltage options available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features entry-side electric toe guard to protect pinch points
  • Guardrails for stability and support
  • Remote power unit can be located up to eight feet away from the table
Dimensions: 78.6875"W x 92"L x 54"H Sell UOM: EA-Each Color: Blue / Yellow
Material: Steel UPC: 691215325776 GTIN: 00691215325776
Warranty: -- Shipping Weight: 3044 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Power Source: Electric - Corded Maximum Height (in): 54 Minimum Height (in): 1/2
Maximum Travel Distance (in): 53-1/2 Operation Method: Foot Operated Overload Protection: Yes
Lifting Speed (sec/ft): 32 Horsepower (hp): 2 Phase: Three Phase
Voltage (V): 460 Power Cord Length (ft): 8 Installation Hardware Included: Not Required
Usable length (in.): 83-5/8 Usable Width (in.): 52 Overall Length (in.): 92
Overall Width (in.): 78-11/16 Capacity (lbs.): 3000
