DR-LOCK

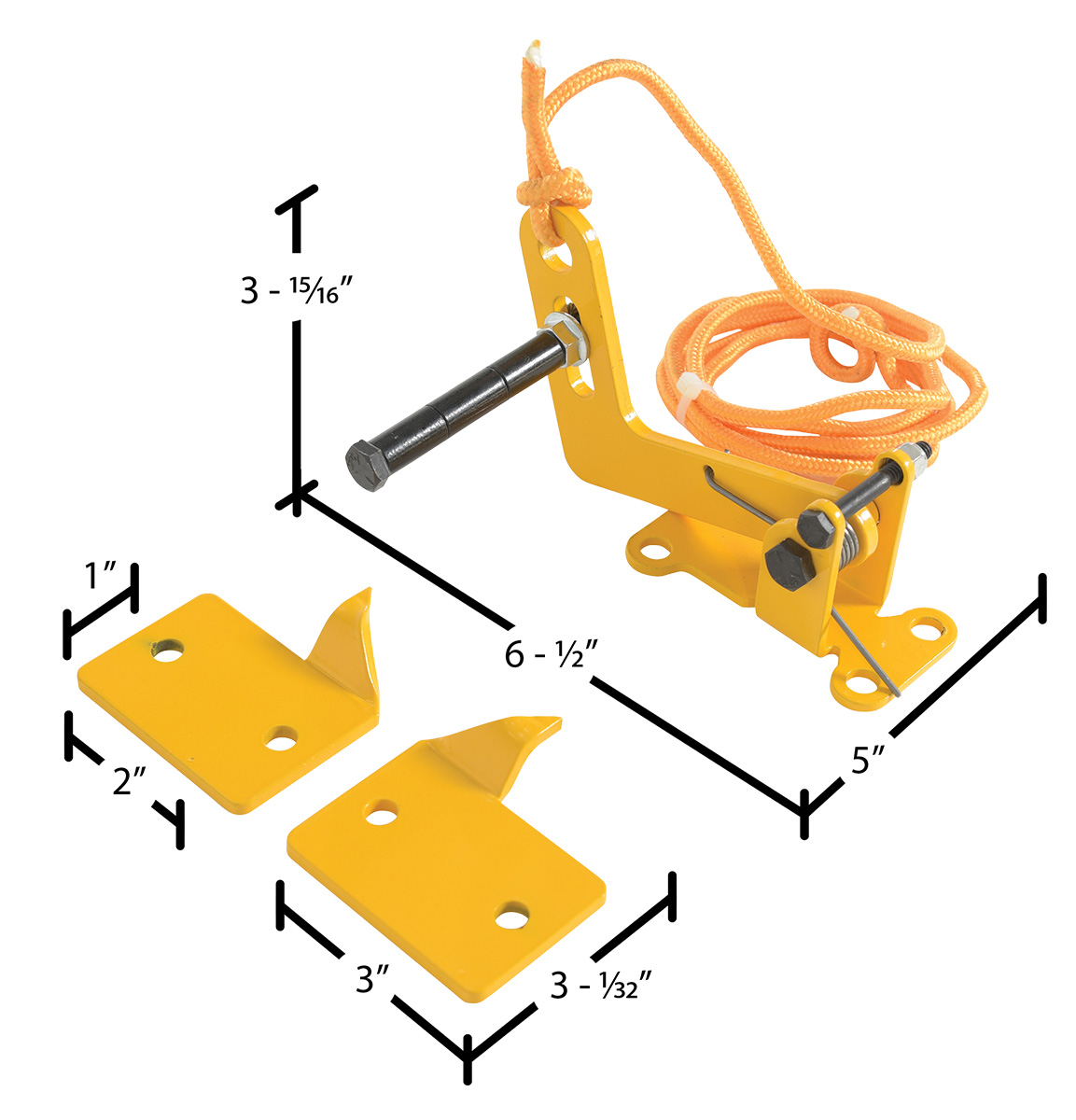

Steel Automatic Overhead Door Lock 5 In. x 6-1/2 In. x 3-15/16 In. Yellow

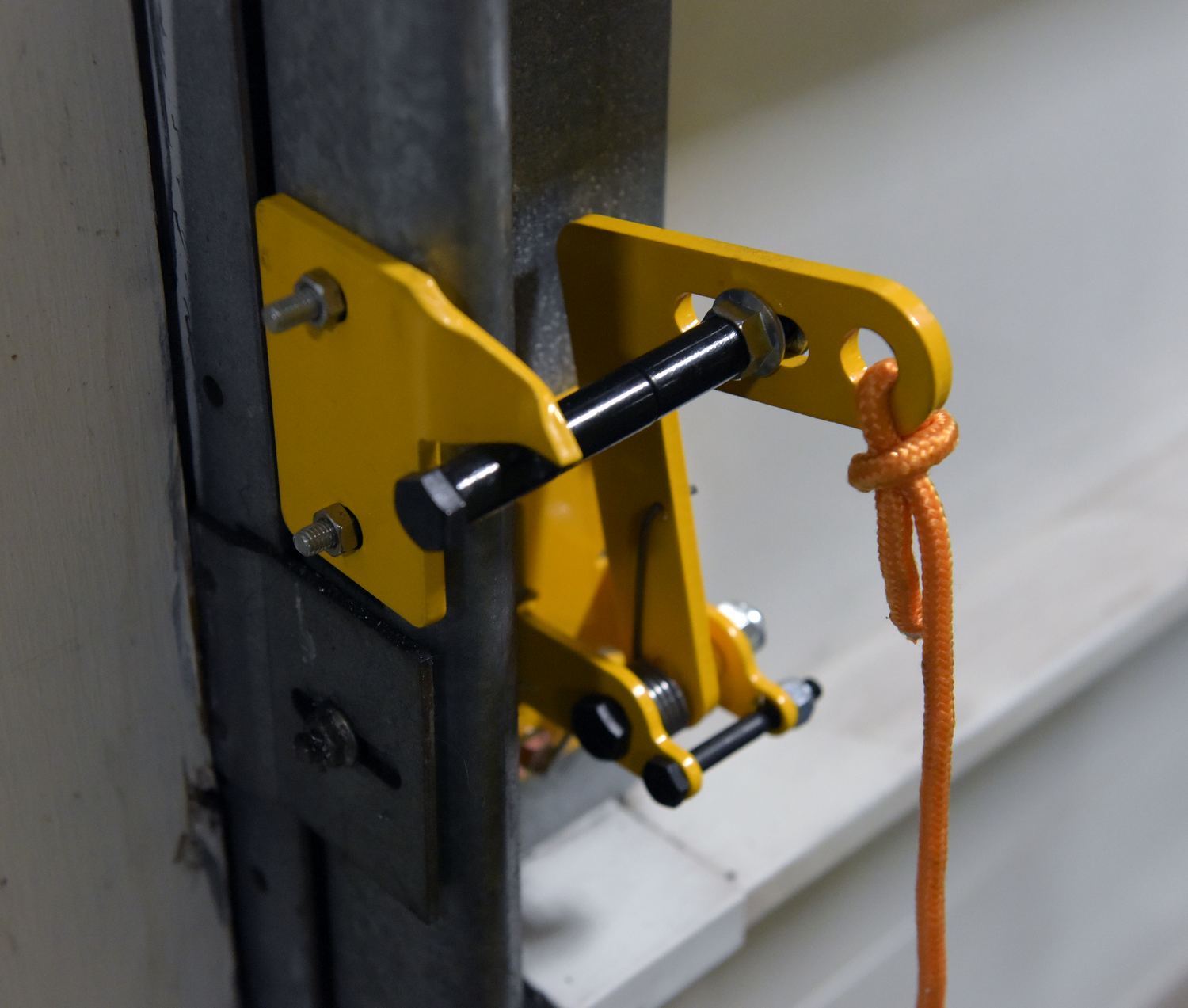

Unique product will allow overhead doors to be locked in virtually any up position. Automatically locks doors in full up position or in the closed position. Prevents the overhead door from unexpectedly "slamming down". Protects personnel, product, and equipment. Spring loaded locking latch is released by pulling rope (included). Simply bolts to any overhead door (installation hardware is not included). Includes two reversible "locking plates" that may be mounted anywhere along door track. Steel construction with yellow painted finish.

  • Overhead door lock will allow overhead doors to be locked in virtually any up position
  • Automatically locks doors in the closed position, and prevents from unexpectedly "slamming down"
  • Spring-loaded locking latch is released by pulling rope & simply bolts to any overhead door
  • Includes reversible "locking plates" that may be mounted anywhere along door track
Total Ship Wt.(lbs.): 3 (only 1 package) Size: 6.5"W x 5"L x 3.9375"H Color: Yellow

Locking Plates (qty.): 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: DR-LOCK
DR-LOCK

Steel Automatic Overhead Door Lock 5 In. x 6-1/2 In. x 3-15/16 In. Yellow

Unique product will allow overhead doors to be locked in virtually any up position. Automatically locks doors in full up position or in the closed position. Prevents the overhead door from unexpectedly "slamming down". Protects personnel, product, and equipment. Spring loaded locking latch is released by pulling rope (included). Simply bolts to any overhead door (installation hardware is not included). Includes two reversible "locking plates" that may be mounted anywhere along door track. Steel construction with yellow painted finish.

  • Overhead door lock will allow overhead doors to be locked in virtually any up position
  • Automatically locks doors in the closed position, and prevents from unexpectedly "slamming down"
  • Spring-loaded locking latch is released by pulling rope & simply bolts to any overhead door
  • Includes reversible "locking plates" that may be mounted anywhere along door track
Dimensions: 6.5"W x 5"L x 3.9375"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215015400 GTIN: 00691215015400
Warranty: -- Shipping Weight: 3 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Locking Plates (qty.): 2
