Model Details

DJG-100

Printer Friendly

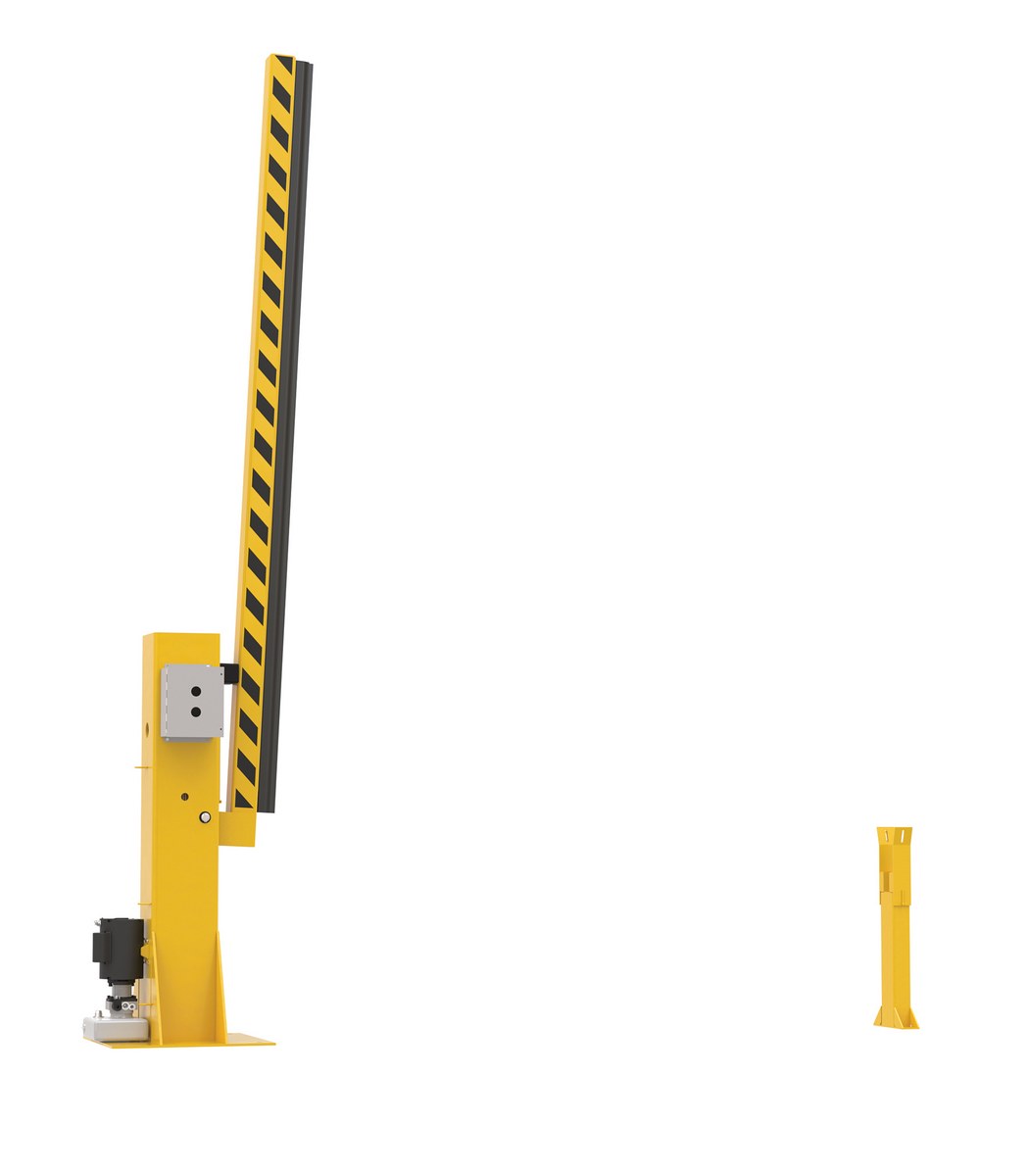

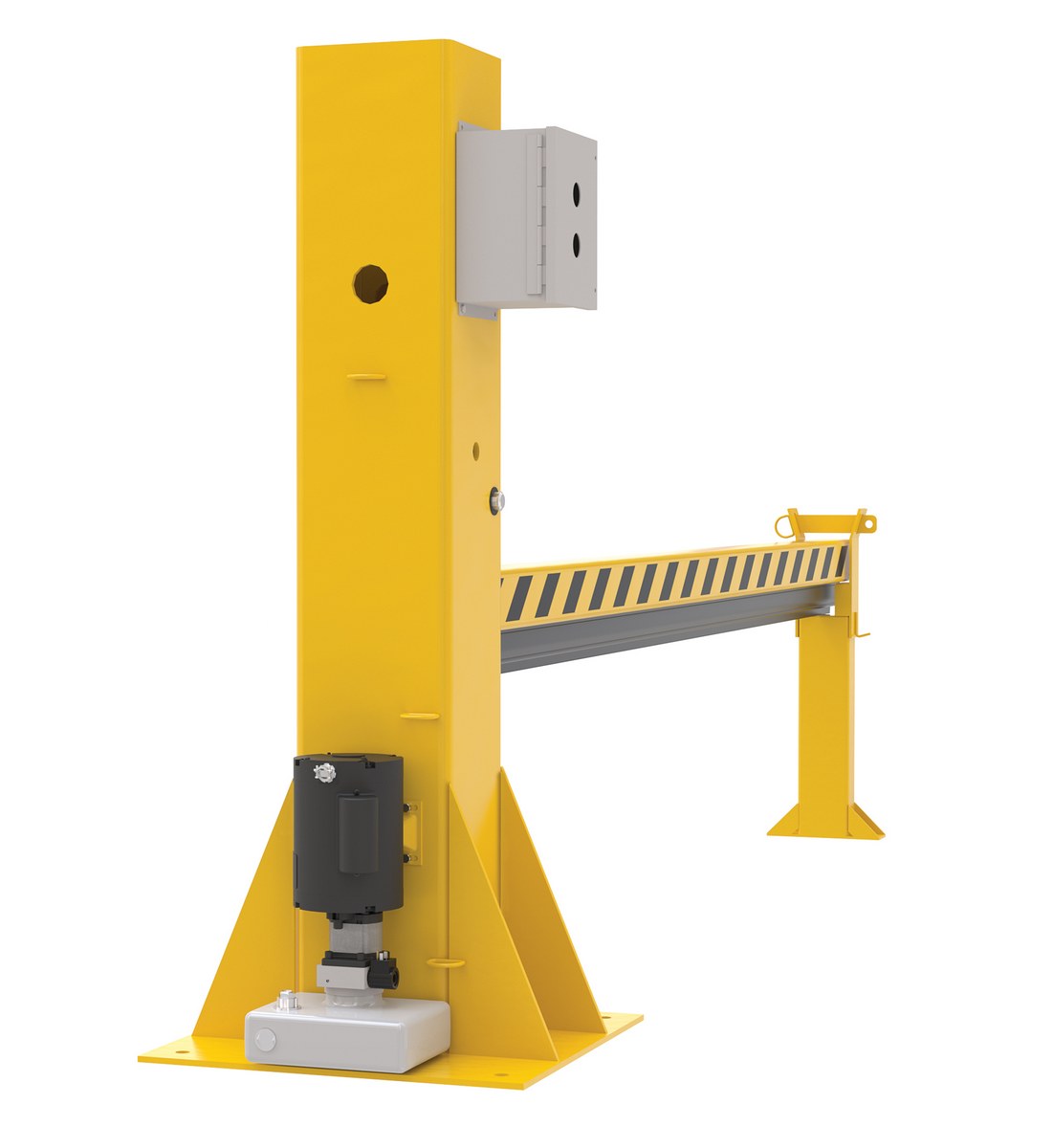

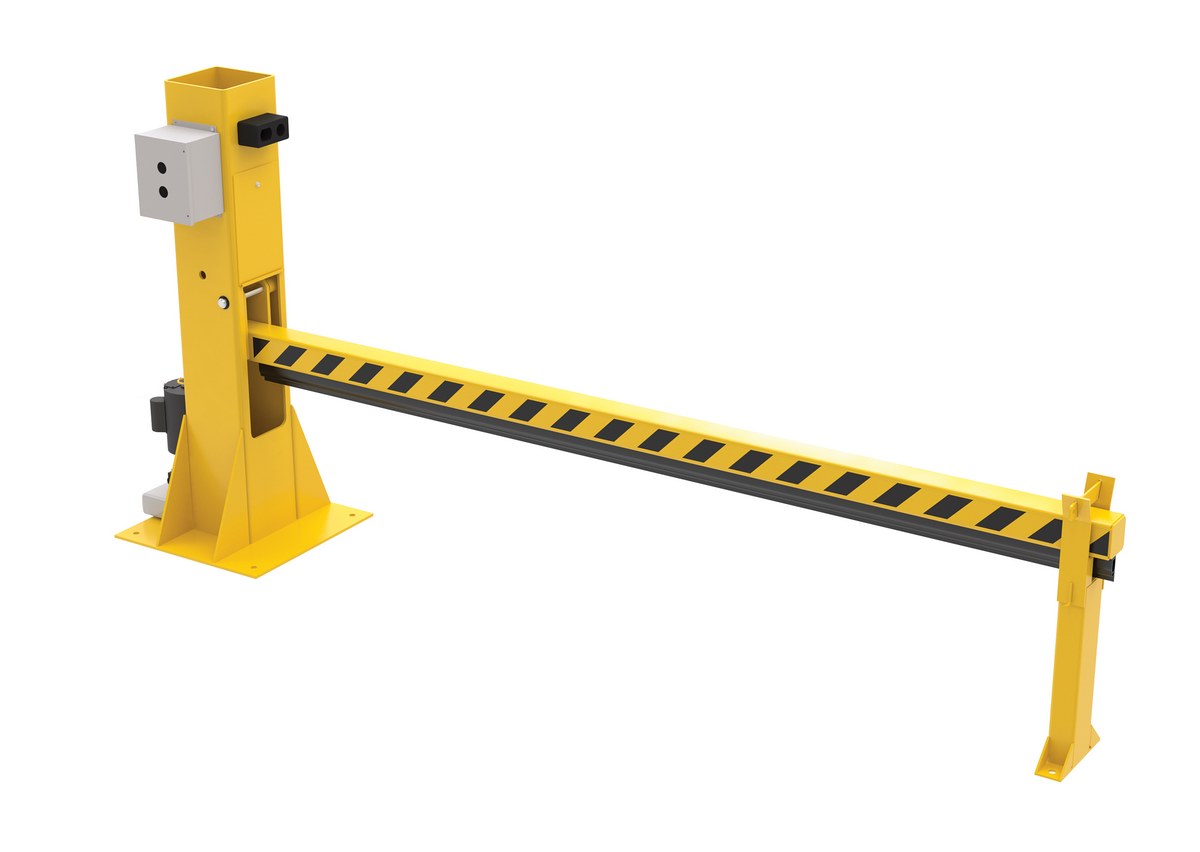

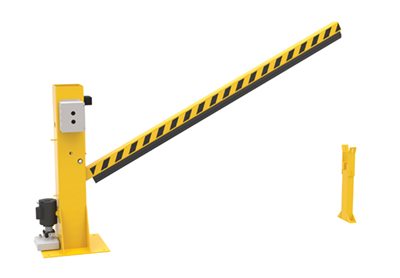

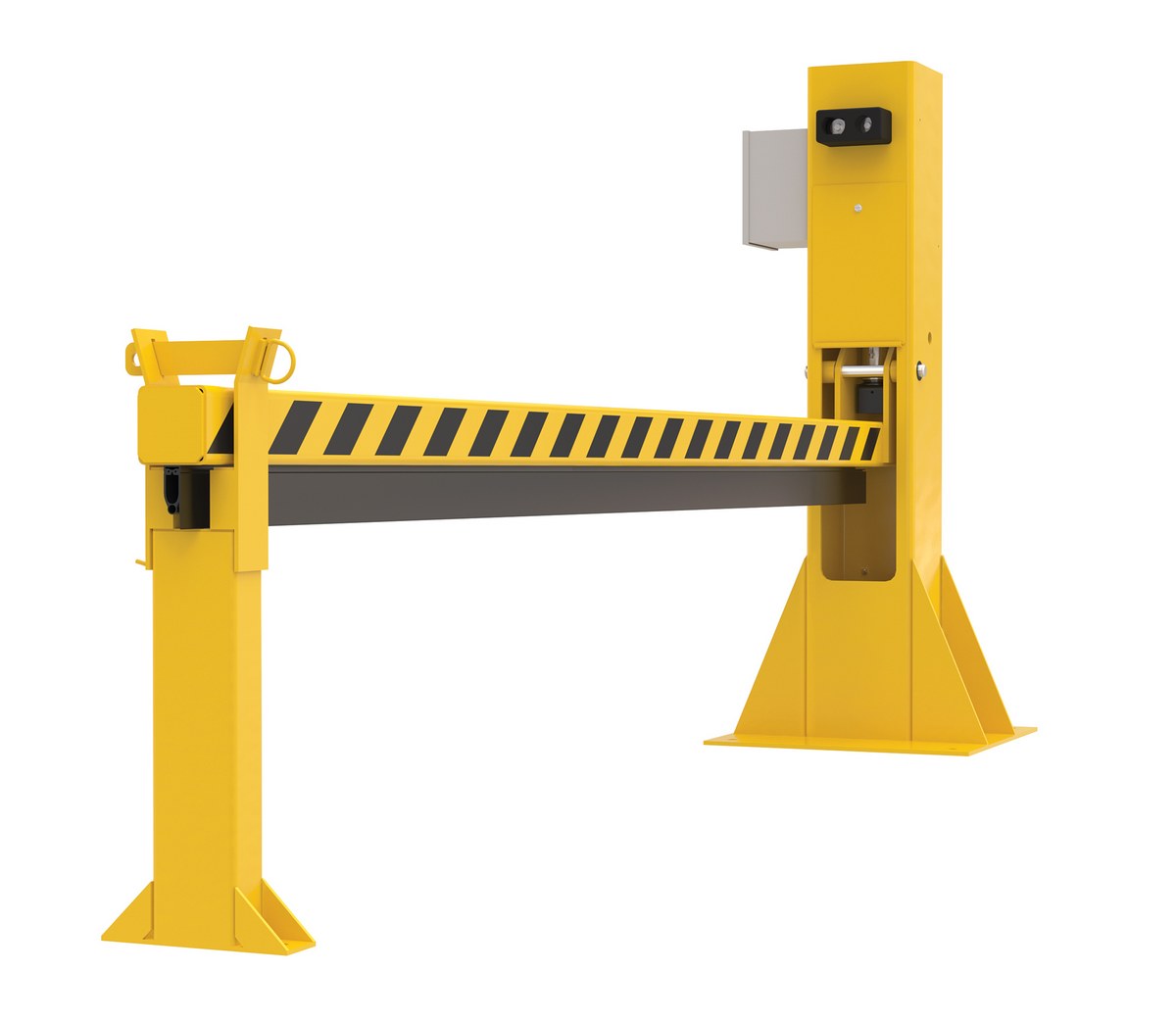

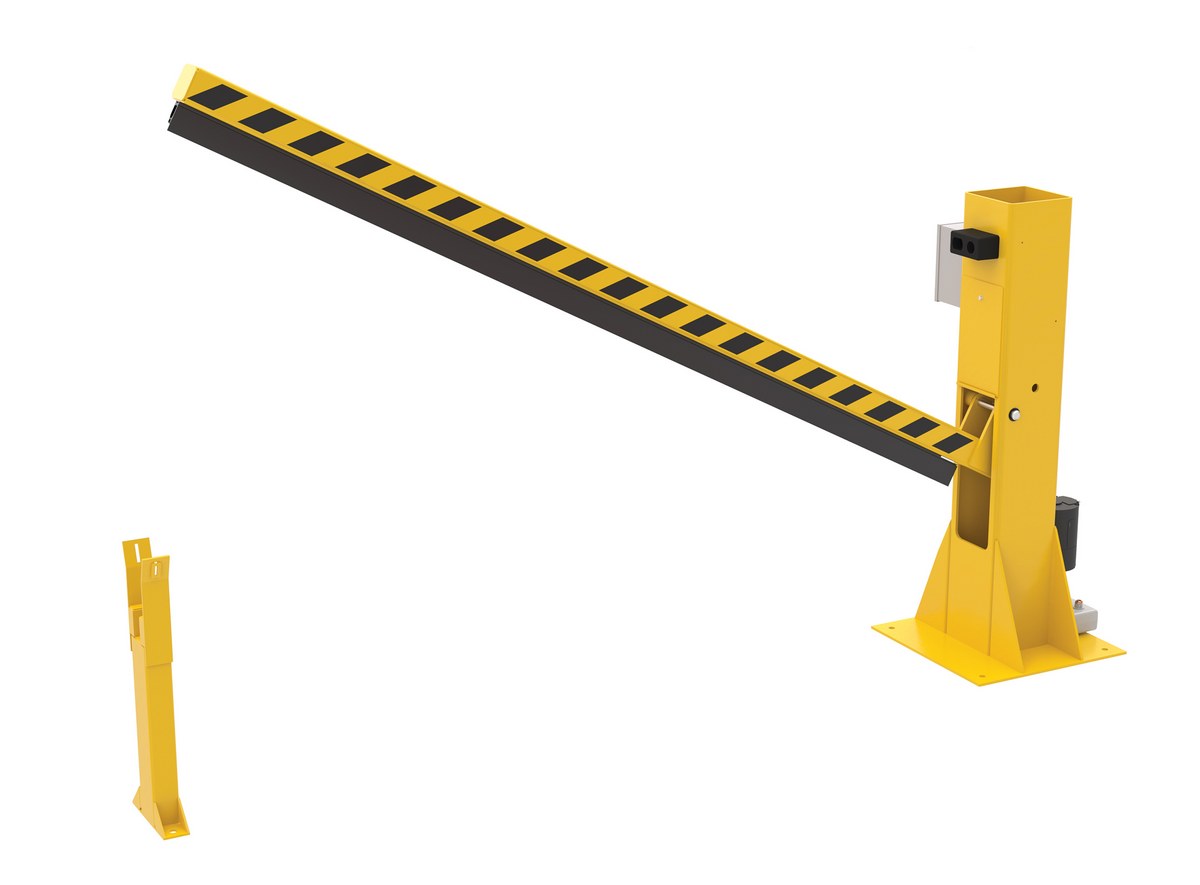

DJG-100

Steel Dock Barricade Electric/Hydraulic 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. The electric/hydraulic power unit provides quick and effortless operation. It is electronically operated and consists of an electrical bumper-style safety stop circuit to sense obstructions when lowering. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included. Installation is simple, anchor the unit to the floor and plug in.

  • Unique design protects open doorways at loading docks
  • Bottom arm safety stop will reverse direction when contacted
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Total Ship Wt.(lbs.): 686 (only 1 package) Size: 24"W x 130.75"L x 60.125"H Color: Yellow

Impact Rating (lb. at mph.): 4,000 at 4 Door Width/Height (ft.): 8 x 8 Arm Height Raised (in.): 148-5/8
Arm Height Lowered (in.): 28-1/2 Motor Horsepower: 3/4 Base Plate Width (in.): 24
Base Plate Length (in.): 24 AC Voltage/Phase: 115/1 Hand Control Voltage: 24

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: DJG-100
DJG-100

Steel Dock Barricade Electric/Hydraulic 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. The electric/hydraulic power unit provides quick and effortless operation. It is electronically operated and consists of an electrical bumper-style safety stop circuit to sense obstructions when lowering. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included. Installation is simple, anchor the unit to the floor and plug in.

  • Unique design protects open doorways at loading docks
  • Bottom arm safety stop will reverse direction when contacted
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Dimensions: 24"W x 130.75"L x 60.125"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215013529 GTIN: 00691215013529
Warranty: -- Shipping Weight: 686 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Impact Rating (lb. at mph.): 4,000 at 4 Door Width/Height (ft.): 8 x 8 Arm Height Raised (in.): 148-5/8
Arm Height Lowered (in.): 28-1/2 Motor Horsepower: 3/4 Base Plate Width (in.): 24
Base Plate Length (in.): 24 AC Voltage/Phase: 115/1 Hand Control Voltage: 24
