D-350-10

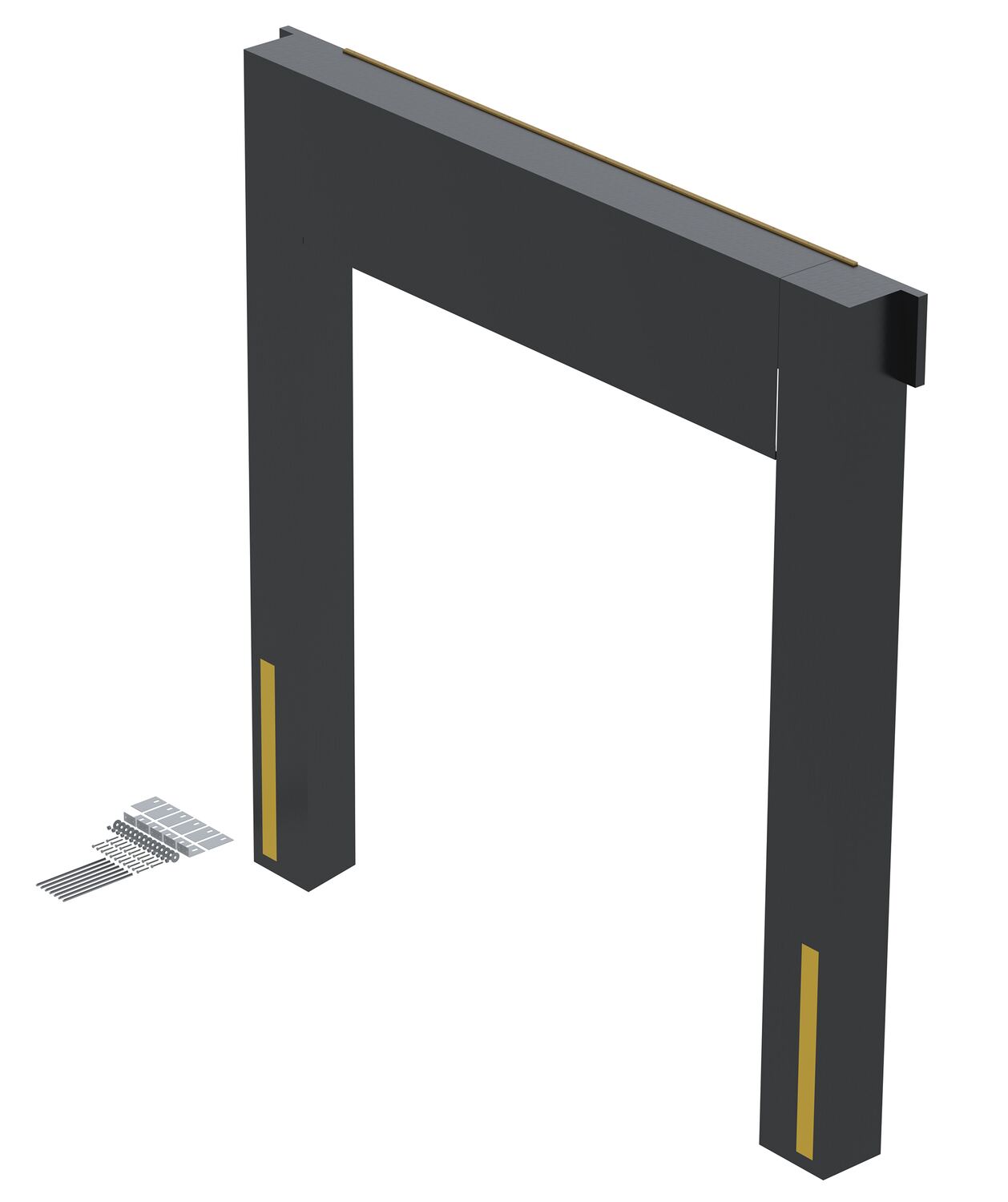

Nylon (Vinyl) Dock Seal 10 In. 8 Ft. x 9 Ft. Black

The superior nylon reinforced vinyl facing has a higher tear strength than equivalent weight halon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable womanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction with beveled fronts and a through the wall installation kit that is included. Five (5") maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete the survey sheet. This unit is non-returnable.

  • Mounting hardware and installation instructions make installation quick and easy
  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
Total Ship Wt.(lbs.): 216 (only 1 package) Size: 120"W x 10"L x 120"H Color: Black Non-Returnable

Projection (in.): 10 Nylon Reinforced Vinyl (oz.): 36 Nylon Reinforced Guide Strips (in.): 2
Top Pad Flap Height (in.): 12 Side Width (in.): 10 Face Width (in.): 12
Maximum Compression (in.): 5 Side Height (in.): 108 Max. Door Width (in.): 96
Max. Door Width (feet): 8 Max. Door Height (in.): 108 Max. Door Height (feet): 9
Usable Door Width (in.): 96 Usable Door Height (in.): 108 Header Width (in.): 120
Header Height (in.): 12

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: D-350-10
D-350-10

Nylon (Vinyl) Dock Seal 10 In. 8 Ft. x 9 Ft. Black

The superior nylon reinforced vinyl facing has a higher tear strength than equivalent weight halon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable womanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction with beveled fronts and a through the wall installation kit that is included. Five (5") maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete the survey sheet. This unit is non-returnable.

  • Mounting hardware and installation instructions make installation quick and easy
  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
Dimensions: 120"W x 10"L x 120"H Sell UOM: EA-Each Color: Black
Material: Nylon (Vinyl) UPC: 691215012263 GTIN: 00691215012263
Warranty: -- Shipping Weight: 216 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Projection (in.): 10 Nylon Reinforced Vinyl (oz.): 36 Nylon Reinforced Guide Strips (in.): 2
Top Pad Flap Height (in.): 12 Side Width (in.): 10 Face Width (in.): 12
Maximum Compression (in.): 5 Side Height (in.): 108 Max. Door Width (in.): 96
Max. Door Width (feet): 8 Max. Door Height (in.): 108 Max. Door Height (feet): 9
Usable Door Width (in.): 96 Usable Door Height (in.): 108 Header Width (in.): 120
Header Height (in.): 12
