Model Details

CYL-V-510

Printer Friendly
CYL-V-510

Steel Vertical Cylinder Cabinet 32 In. x 30 In. x 68-1/4 In. 5-10 Cylinder Capacity Yellow

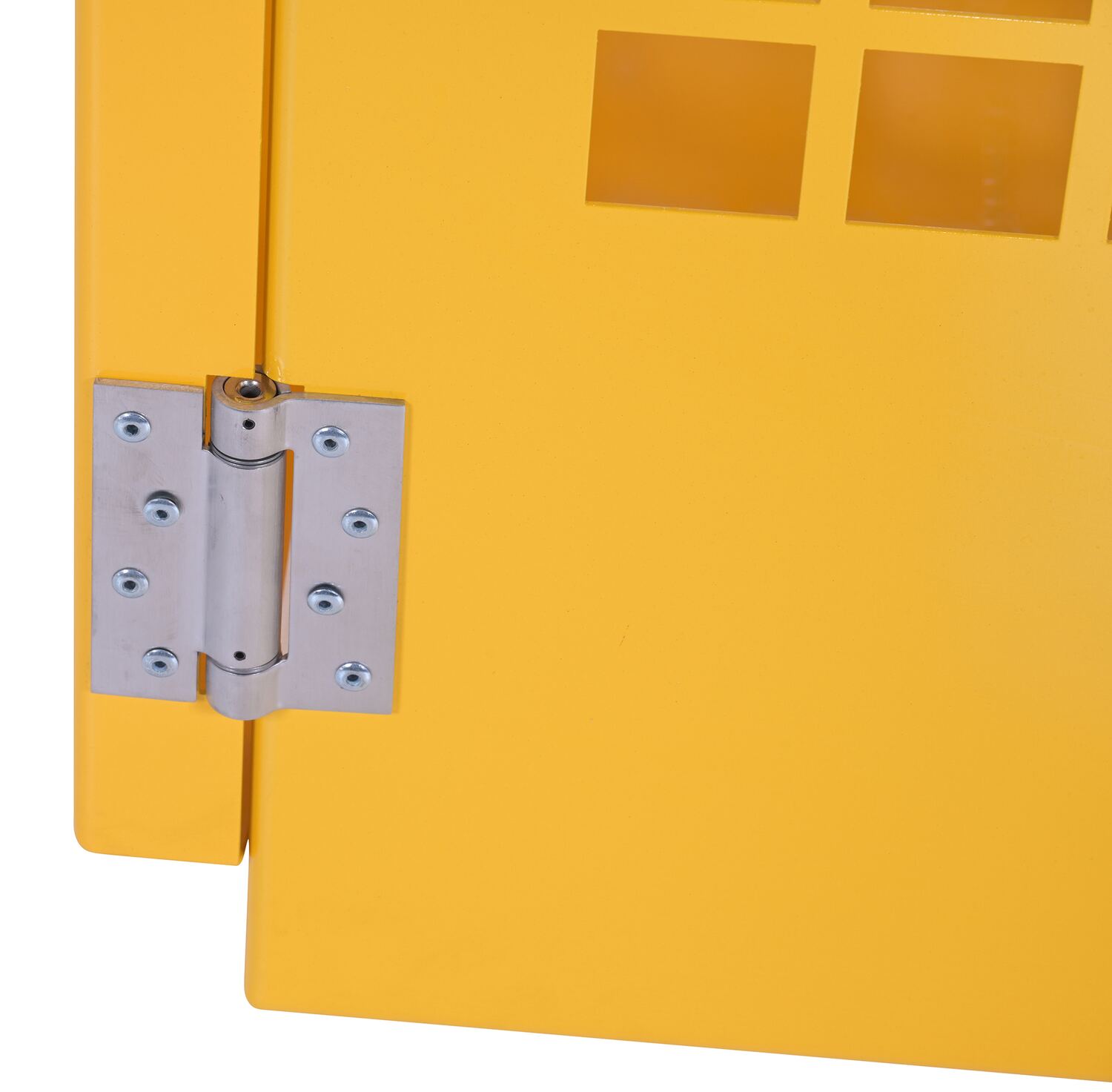

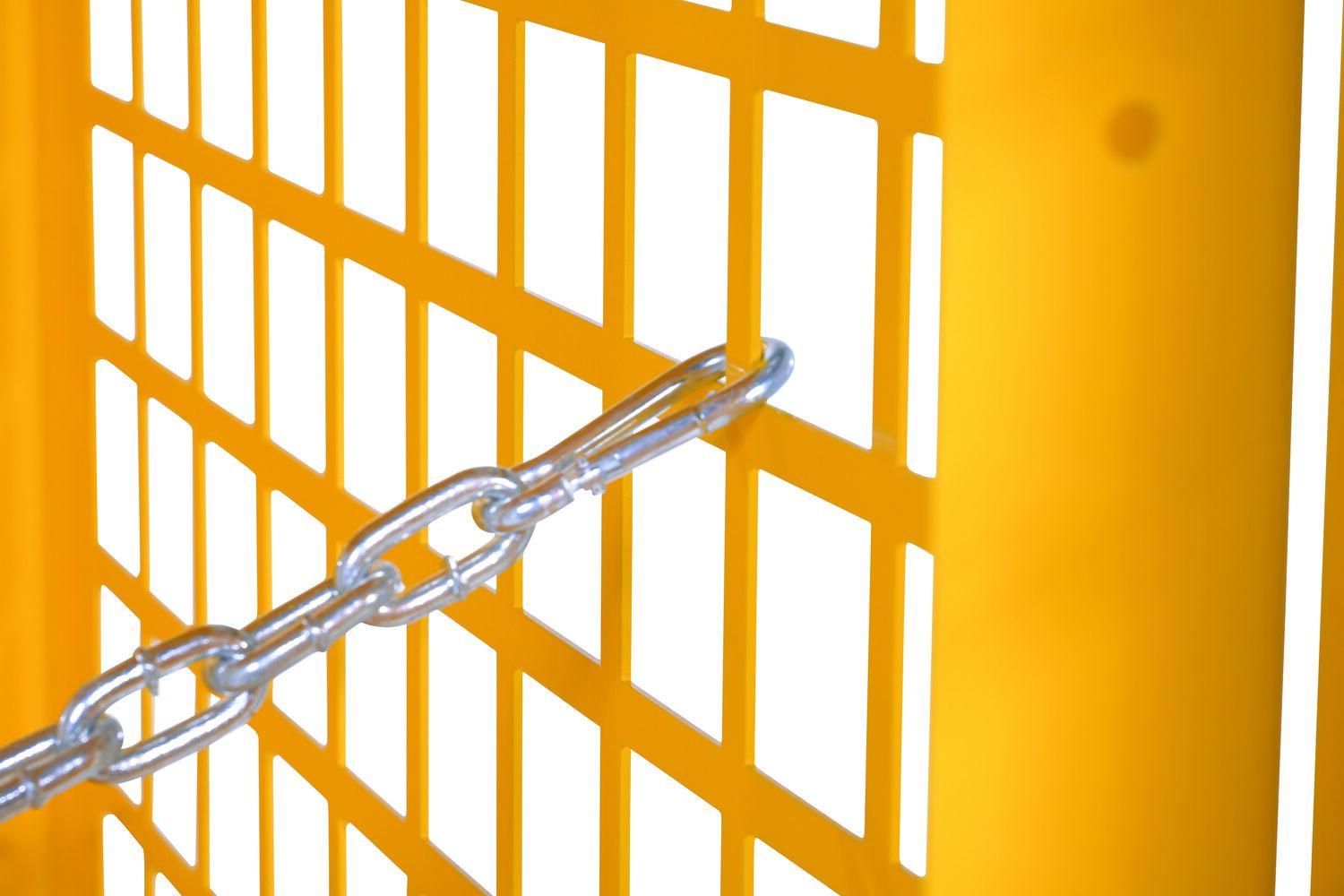

Steel cabinet for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel mesh. Bottom, back and top is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cylinders. Include chains for securing cylinders. Rugged steel construction with safety yellow finish. Powder coat finish.

  • Meets OSHA 1910 110 (f)(6)(ii), ANSI pan 55 + 58, and CGA P-1 requirements
  • Ideal for vertical storage of other gas style cylinders
  • Includes red lettered signage noting "flammable - no smoking"
  • Includes lockable doors lag holes in base for security
Total Ship Wt.(lbs.): 287 (only 1 package) Size: 30"W x 32"L x 68.25"H Color: Yellow

Uniform Cylinder Capacity (qty.): 5 to 10 Design: Vertical County of use: USA
OSHA: 1910.110 (f)(6)(ii) ANSI: NFPA 55 + 58 CGA: P-1

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CYL-V-510
CYL-V-510

Steel Vertical Cylinder Cabinet 32 In. x 30 In. x 68-1/4 In. 5-10 Cylinder Capacity Yellow

Steel cabinet for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel mesh. Bottom, back and top is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cylinders. Include chains for securing cylinders. Rugged steel construction with safety yellow finish. Powder coat finish.

  • Meets OSHA 1910 110 (f)(6)(ii), ANSI pan 55 + 58, and CGA P-1 requirements
  • Ideal for vertical storage of other gas style cylinders
  • Includes red lettered signage noting "flammable - no smoking"
  • Includes lockable doors lag holes in base for security
Dimensions: 30"W x 32"L x 68.25"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215065023 GTIN: 00691215065023
Warranty: -- Shipping Weight: 287 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Cylinder Capacity (qty.): 5 to 10 Design: Vertical County of use: USA
OSHA: 1910.110 (f)(6)(ii) ANSI: NFPA 55 + 58 CGA: P-1
