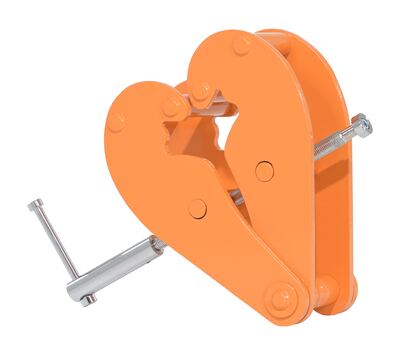

BC-10

Steel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 10000 Lb. Capacity Orange

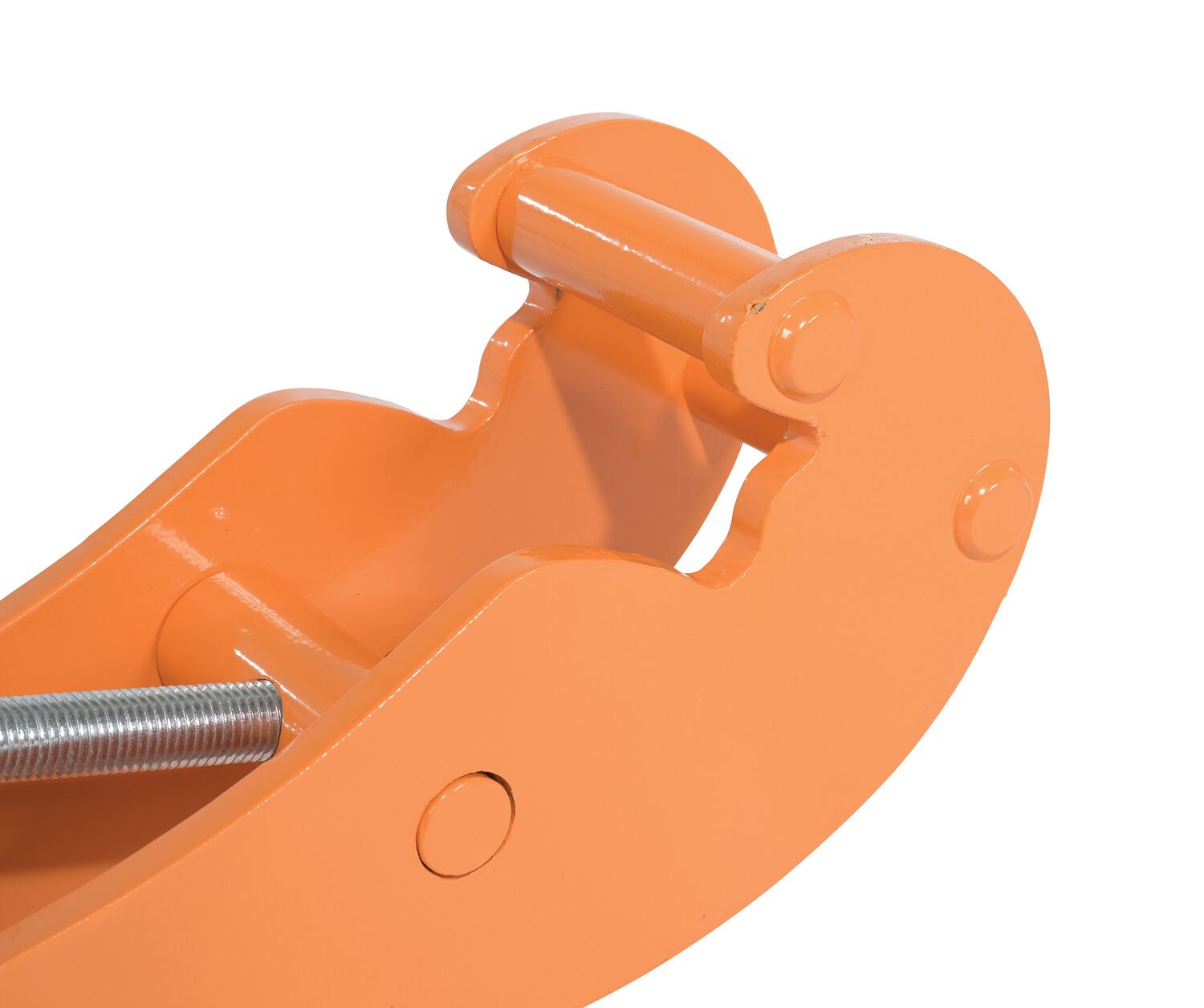

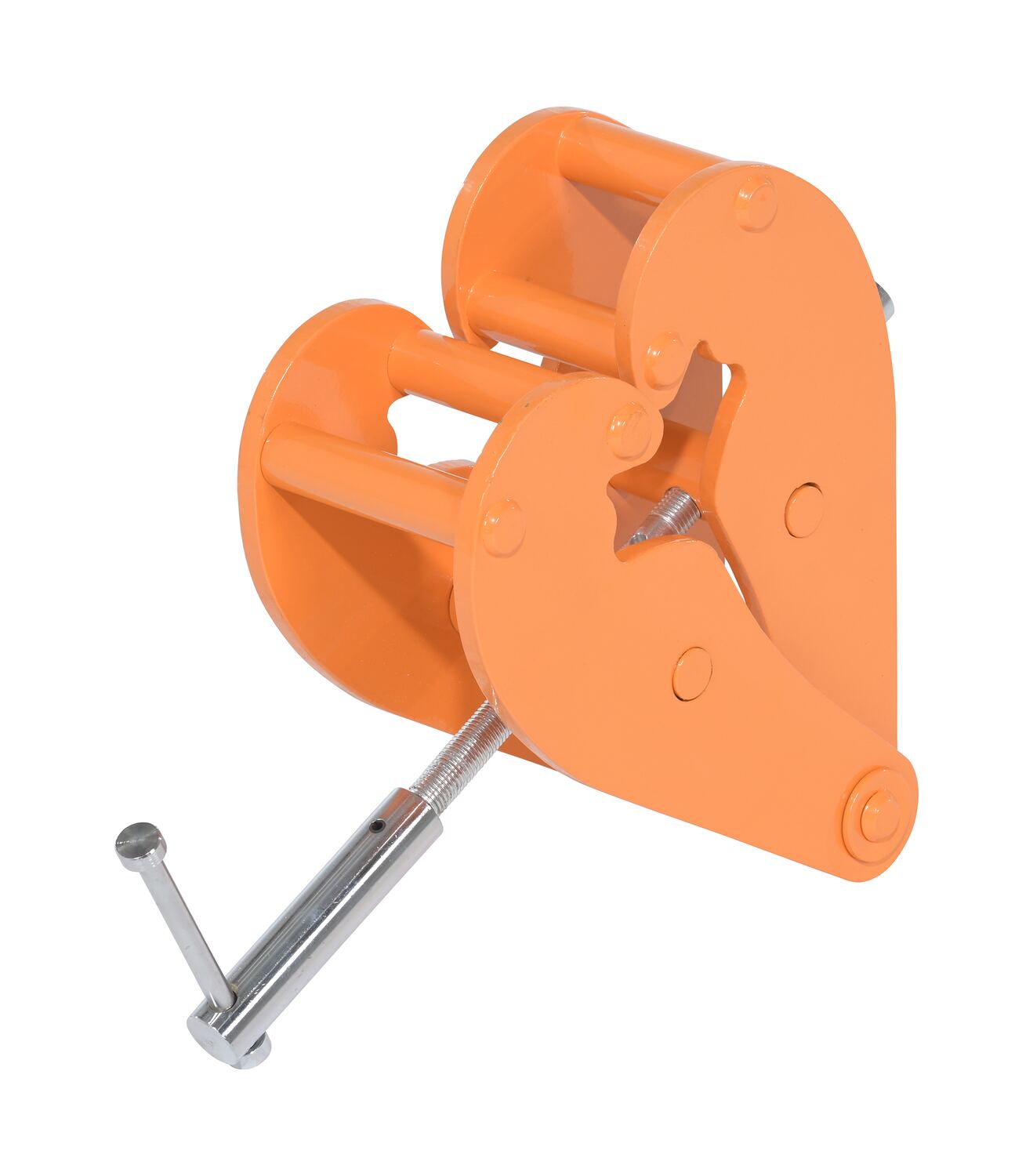

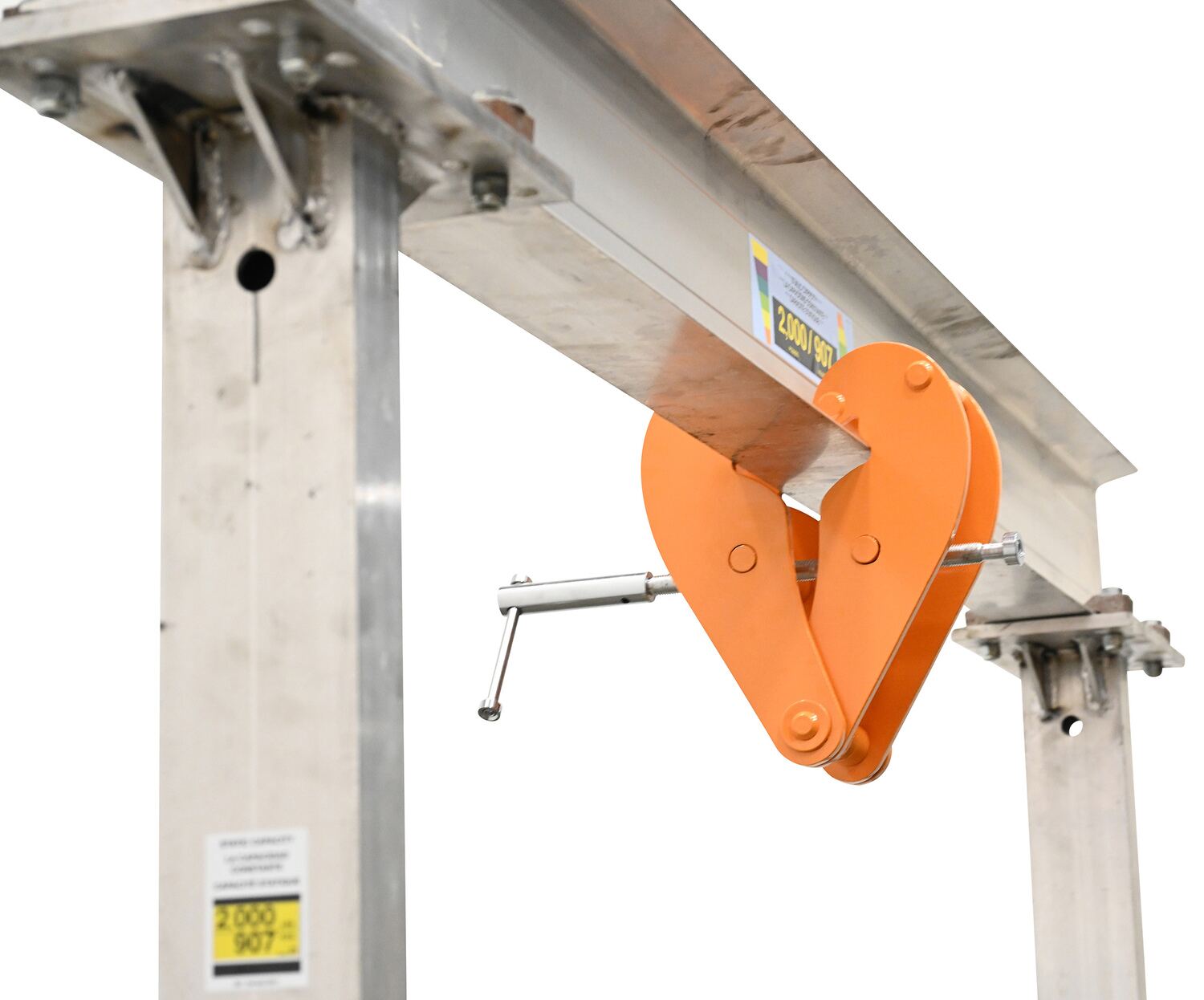

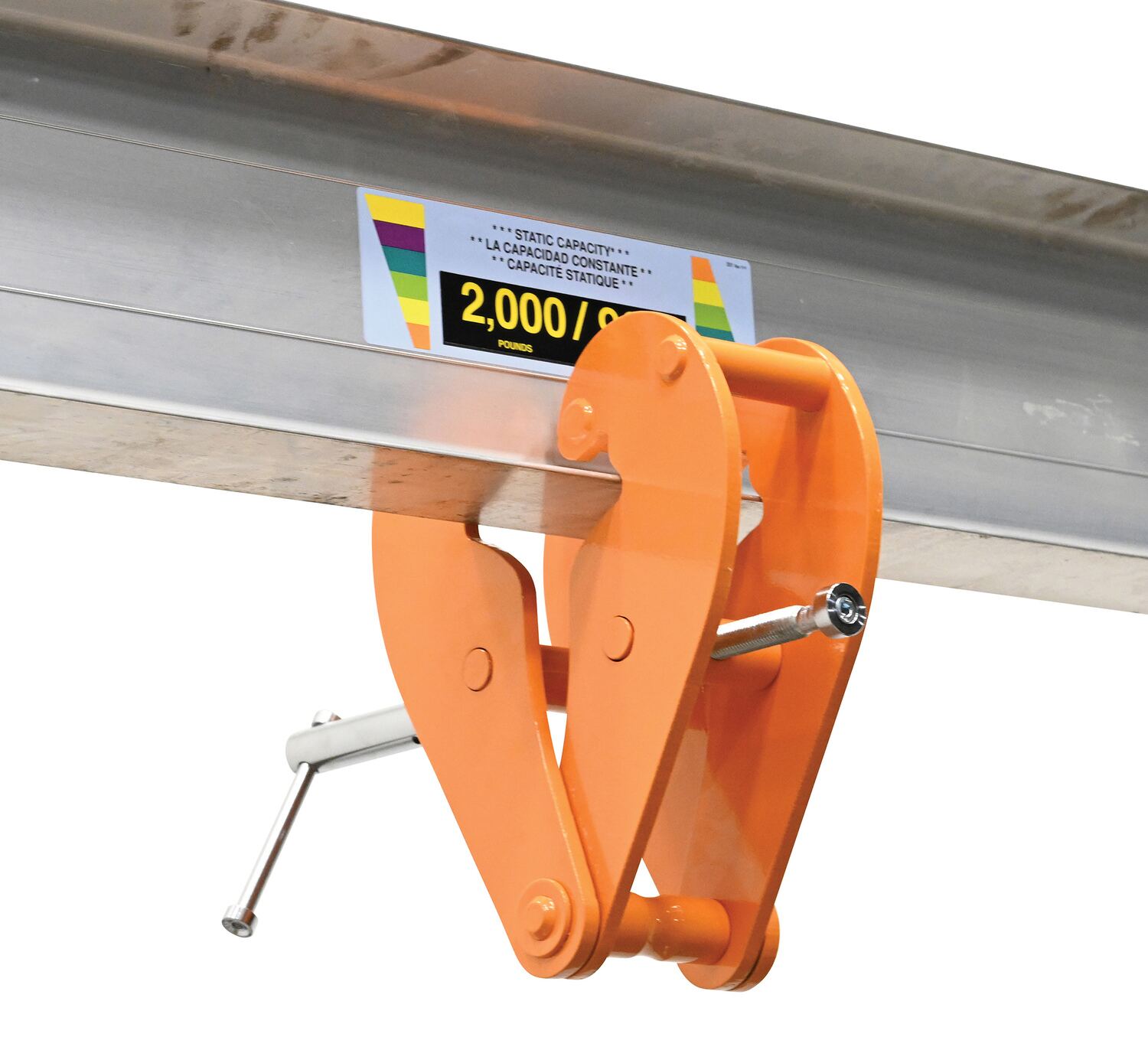

The beam clamp is designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. This versatile unit can be interchanged from one gantry to another in a matter of seconds. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Painted finish.

  • Manual locking screw mechanism easily adjusts width
  • Unique design provides a fixed-position lifting point
  • Mechanical adjustment
  • Solid steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 38 (only 1 package) Size: 5.25"W x 21.25"L x 7.75"H Color: Orange

Uniform Capacity (lb.): 10000 Fits Beam Flange Width (in.): 3-1/2 to 12-1/4 Lifting Style: Horizontal
Jaw Depth (in.): 5-1/4 Minimum Jaw Opening (in.): 4-1/2 Maximum Jaw Opening (in.): 8-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: BC-10
BC-10

Steel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 10000 Lb. Capacity Orange

The beam clamp is designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. This versatile unit can be interchanged from one gantry to another in a matter of seconds. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Painted finish.

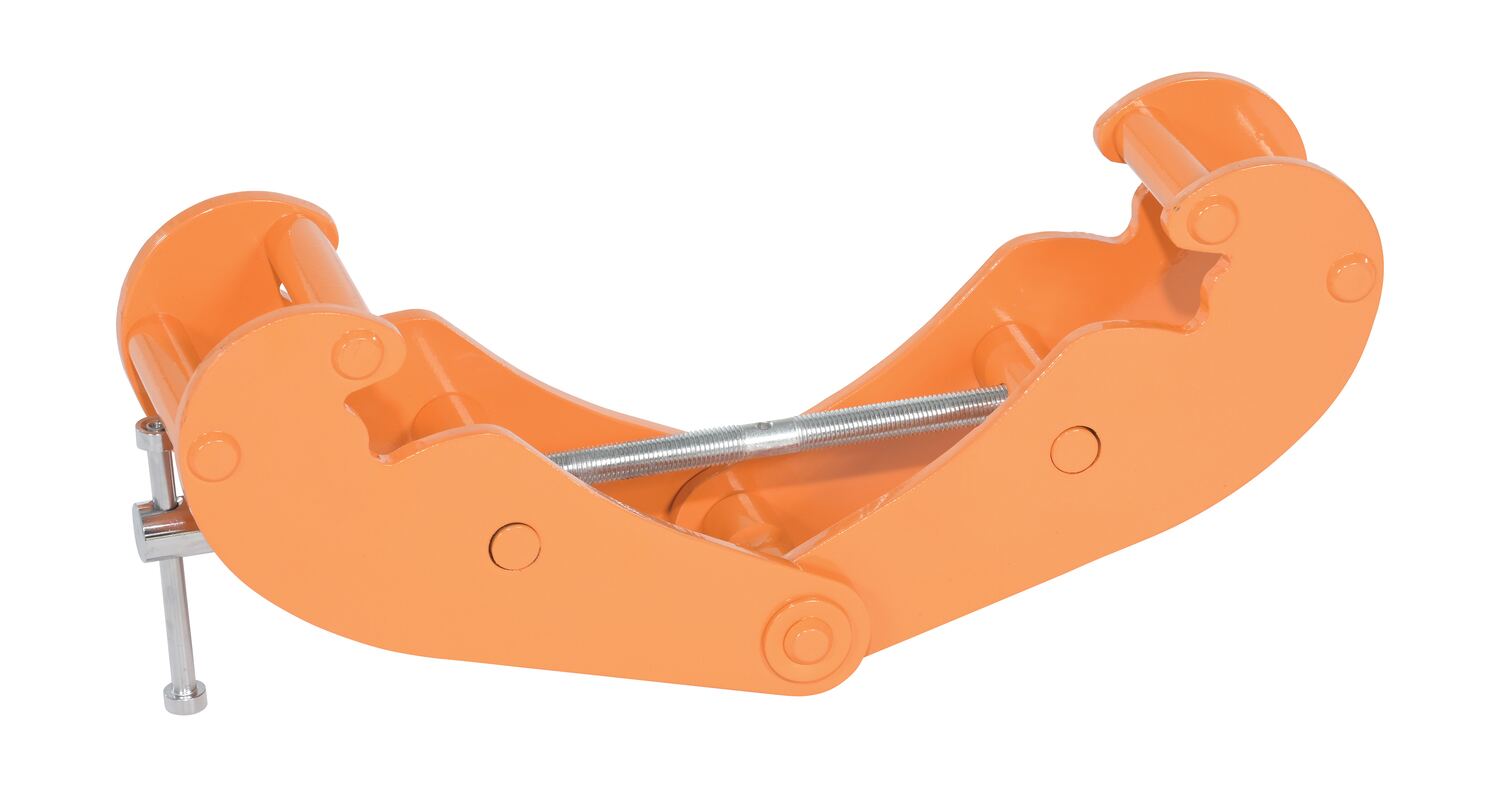

  • Manual locking screw mechanism easily adjusts width
  • Unique design provides a fixed-position lifting point
  • Mechanical adjustment
  • Solid steel construction provides long lasting rugged use
Dimensions: 5.25"W x 21.25"L x 7.75"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215108386 GTIN: 00691215108386
Warranty: -- Shipping Weight: 38 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 10000 Fits Beam Flange Width (in.): 3-1/2 to 12-1/4 Lifting Style: Horizontal
Jaw Depth (in.): 5-1/4 Minimum Jaw Opening (in.): 4-1/2 Maximum Jaw Opening (in.): 8-1/2
