Model Details

AWR-G-38-14A-HR

Printer Friendly
AWR-G-38-14A-HR

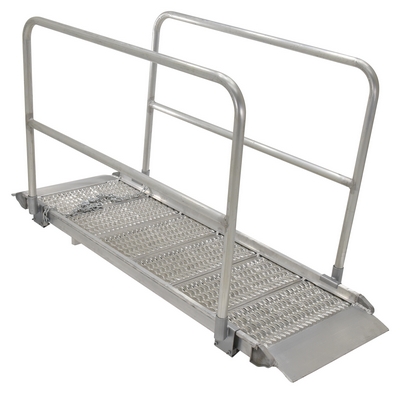

Aluminum Grip-Strut Walk Ramps with Handrails 167-1/4 In. x 39-3/8 In. 1600 Lb. Capacity Silver

Load and unload trucks when docks are unavailable with the Aluminum grip-strut Walk Ramp with hand rails. The open deck design allows snow, ice and water to fall through ramp providing a positive grip for delivery men/women, shippers and receivers. One hundred (100) percent welded aluminum construction is lightweight and will not rust. Overlap style end lip rests on the trailer bed to provide a smooth transition. Each unit includes two safety chains to connect the ramp to the trailer for safety. Not for pallet trucks or three wheel carts.

  • 100% Welded aluminum construction is light-weight and will not rust
  • Overlap style end lip provides a smooth transition
  • Safety chains securely connect ramp to trailer for safety
  • Serrated ramp surface provides a non-slip grip
Total Ship Wt.(lbs.): 207 (only 1 package) Size: 39.375"W x 167.25"L x 45.3125"H Color: Silver

Uniform Capacity with 4-wheel cart (lb.): 1,600 Uniform Capacity with 2-wheel cart (lb.): 1,200 Usable Width (in.): 36
Height Range (in.): 6 to 54 Safety Curbs (in.): 2 Usable Length (in.): 167-1/4
Deck Type: Grip-Strut Usable Rail Length (in.): 146-5/16 Midrail (in.): 18-7/16
Railing Height (in.): 40-1/4 Installation: Bolt-on Handrail Quantity: 4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AWR-G-38-14A-HR
AWR-G-38-14A-HR

Aluminum Grip-Strut Walk Ramps with Handrails 167-1/4 In. x 39-3/8 In. 1600 Lb. Capacity Silver

Load and unload trucks when docks are unavailable with the Aluminum grip-strut Walk Ramp with hand rails. The open deck design allows snow, ice and water to fall through ramp providing a positive grip for delivery men/women, shippers and receivers. One hundred (100) percent welded aluminum construction is lightweight and will not rust. Overlap style end lip rests on the trailer bed to provide a smooth transition. Each unit includes two safety chains to connect the ramp to the trailer for safety. Not for pallet trucks or three wheel carts.

  • 100% Welded aluminum construction is light-weight and will not rust
  • Overlap style end lip provides a smooth transition
  • Safety chains securely connect ramp to trailer for safety
  • Serrated ramp surface provides a non-slip grip
Dimensions: 39.375"W x 167.25"L x 45.3125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215132367 GTIN: 00691215132367
Warranty: -- Shipping Weight: 207 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity with 4-wheel cart (lb.): 1,600 Uniform Capacity with 2-wheel cart (lb.): 1,200 Usable Width (in.): 36
Height Range (in.): 6 to 54 Safety Curbs (in.): 2 Usable Length (in.): 167-1/4
Deck Type: Grip-Strut Usable Rail Length (in.): 146-5/16 Midrail (in.): 18-7/16
Railing Height (in.): 40-1/4 Installation: Bolt-on Handrail Quantity: 4
