Model Details

AHTD-3696

Printer Friendly
AHTD-3696

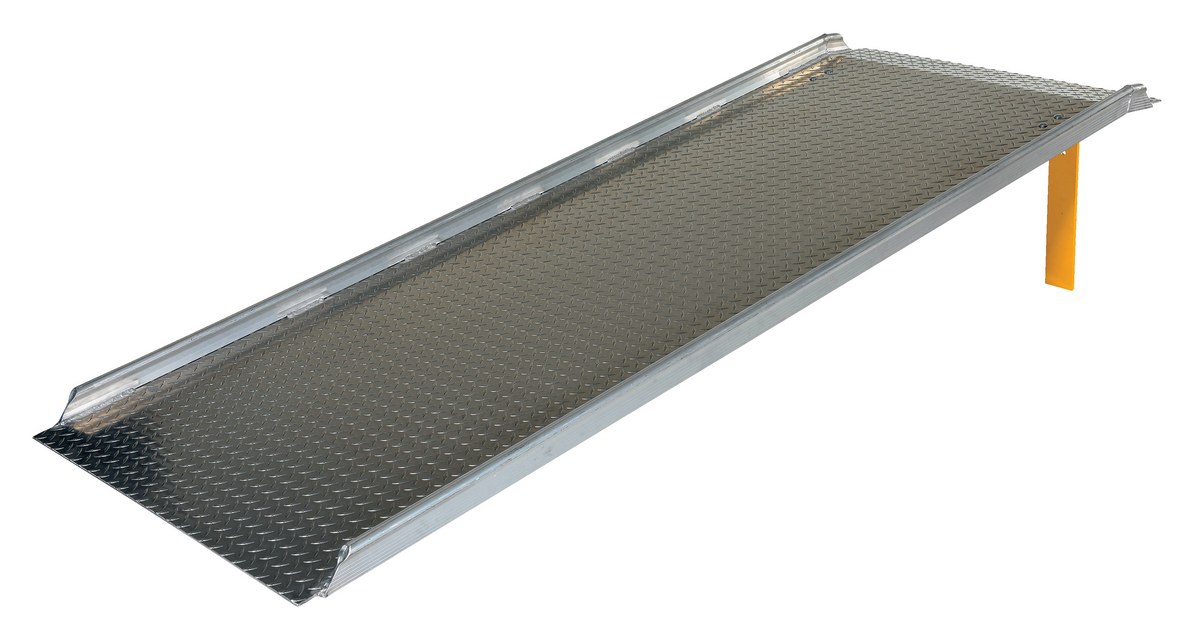

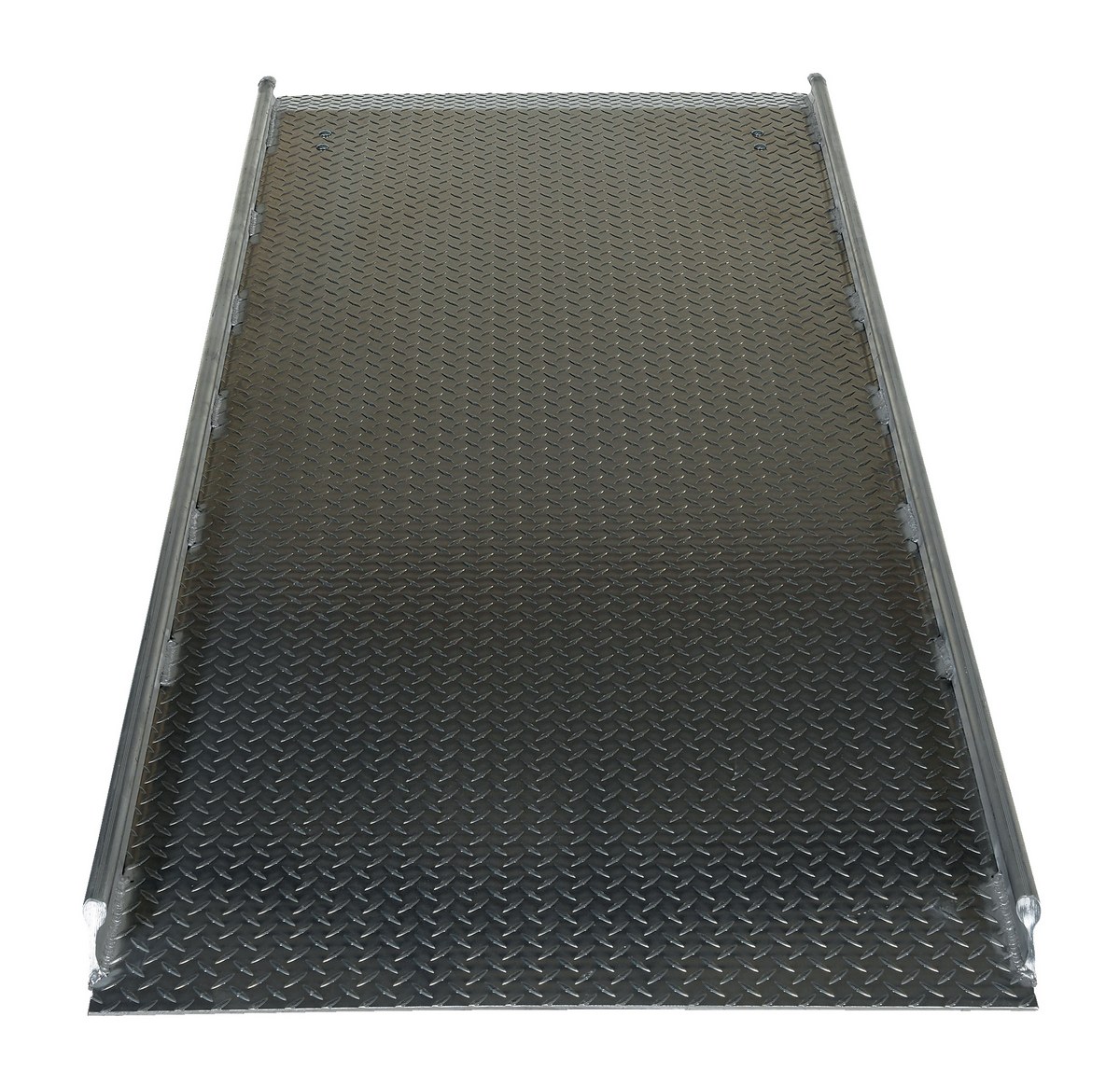

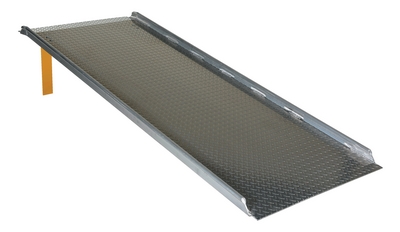

Aluminum Diamond Tread Hand Truck Dock Board with Curbs 95-7/8 In. x 37-1/4 In. x 19-1/8 In. 800 Lb. Capacity Silver

The Aluminum Hand Truck dock boards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread surface and beveled edges provide safe and smooth entry and exit. The bend is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. Designed for use with two wheel hand trucks.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Bolt-on locking legs and lifting handles for OSHA compliance
Total Ship Wt.(lbs.): 107 (only 1 package) Size: 37.25"W x 95.875"L x 19.125"H Color: Silver

Uniform Capacity (lb.): 800 Bend or Crown (degrees): 12 Distance Between Bend or Crown From Dockplate Edge (in.): 6
Height Differential (in.): 19 Plate Thickness (in.): 3/16 Usable Width (in.): 34
Usable Length (in.): 95-7/8 OSHA: 1910.30 (a) ANSI: MH 30.2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHTD-3696
AHTD-3696

Aluminum Diamond Tread Hand Truck Dock Board with Curbs 95-7/8 In. x 37-1/4 In. x 19-1/8 In. 800 Lb. Capacity Silver

The Aluminum Hand Truck dock boards are lightweight and can be carried and positioned by one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum diamond tread surface and beveled edges provide safe and smooth entry and exit. The bend is designed to keep ramp edges flush with the dock surface and the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs that provide hand holds and reduce chance of roll off. Designed for use with two wheel hand trucks.

  • Lightweight design is ideal for foot or hand truck traffic
  • Beveled entrance and exit edges provide smooth transition
  • Tread plate surface ensures skid-resistant safe traction
  • Bolt-on locking legs and lifting handles for OSHA compliance
Dimensions: 37.25"W x 95.875"L x 19.125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215001809 GTIN: 00691215001809
Warranty: -- Shipping Weight: 107 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Bend or Crown (degrees): 12 Distance Between Bend or Crown From Dockplate Edge (in.): 6
Height Differential (in.): 19 Plate Thickness (in.): 3/16 Usable Width (in.): 34
Usable Length (in.): 95-7/8 OSHA: 1910.30 (a) ANSI: MH 30.2
