Model Details

AHS-2-15-10-VG

Printer Friendly
AHS-2-15-10-VG

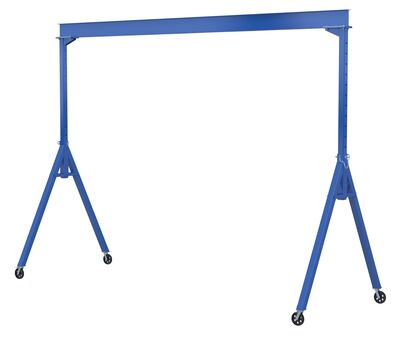

Steel Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft.Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity Blue

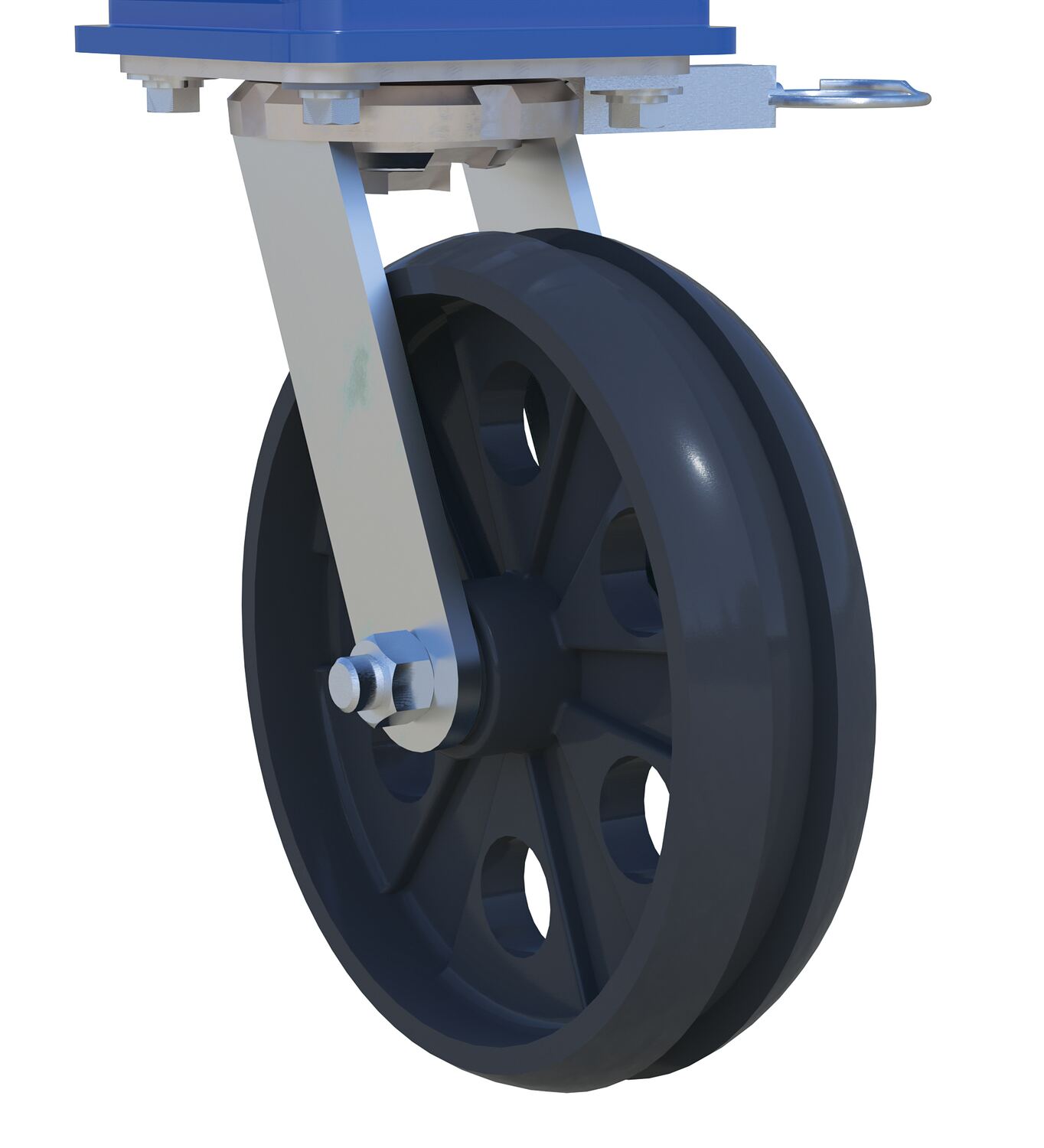

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Heavy-duty welded steel construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

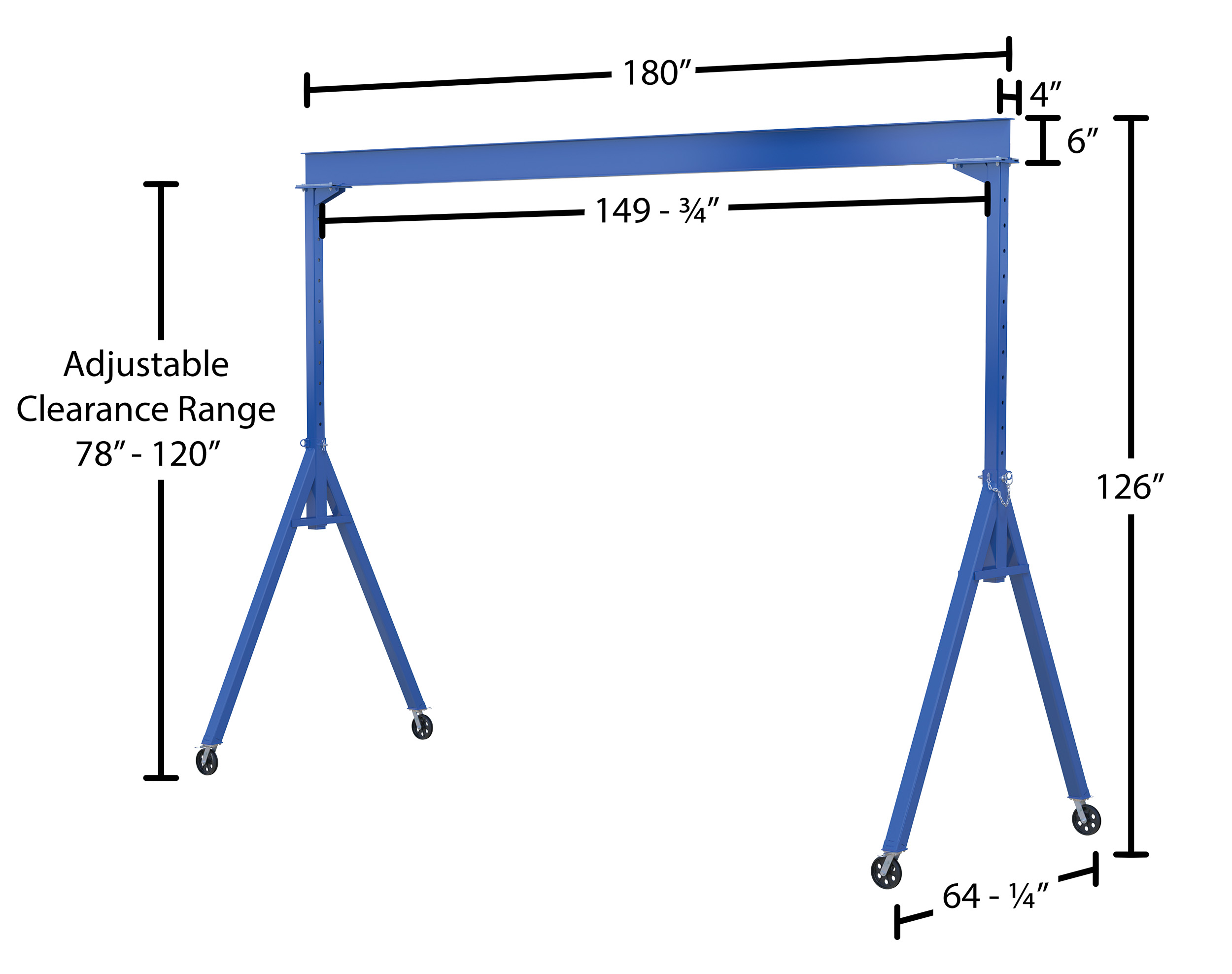

Total Ship Wt.(lbs.): 845 (Multiple Packages: P1: 607 lbs + P2: 238 lbs) Size: 64.25"W x 180"L x 126"H Color: Blue

Uniform Capacity (lbs): 2000 Casters Swivel with Locks (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Cast Iron

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHS-2-15-10-VG
AHS-2-15-10-VG

Steel Adjustable Height Gantry Crane with V-Groove Cast Iron Casters 15 Ft.Wide x 10 Ft. Max Usable Height 2,000 Lb. Capacity Blue

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Heavy-duty welded steel construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 64.25"W x 180"L x 126"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215366625 GTIN: 00691215366625
Warranty: -- Shipping Weight: 607 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 2000 Casters Swivel with Locks (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Cast Iron
