Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling OptionAn adjustable height Aluminum Gantry crane is valuable asset in warehouse and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. All pinned connections make it possible for personnel to set up and take down in just minutes. The adjustable legs allow the crane to be raised or lowered in increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support. Hoists & Trollies can be ordered seperately.
- Height and leveling adjustments can be completed with support from fork truck or other overhead lifting device
- Flat footed design provides surface stability
- Beam length offers ample space for lifting and lowering
- Lifting hoist/trolley available separately
Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Steel Gantry Cranes w/ Pneumatic Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option
Adjustable Steel Gantry Cranes with V-Groove Casters - Knockdown
Adjustable Steel Gantry Cranes with Pneumatic Casters
Aluminum Work Area Portable Gantry Cranes
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

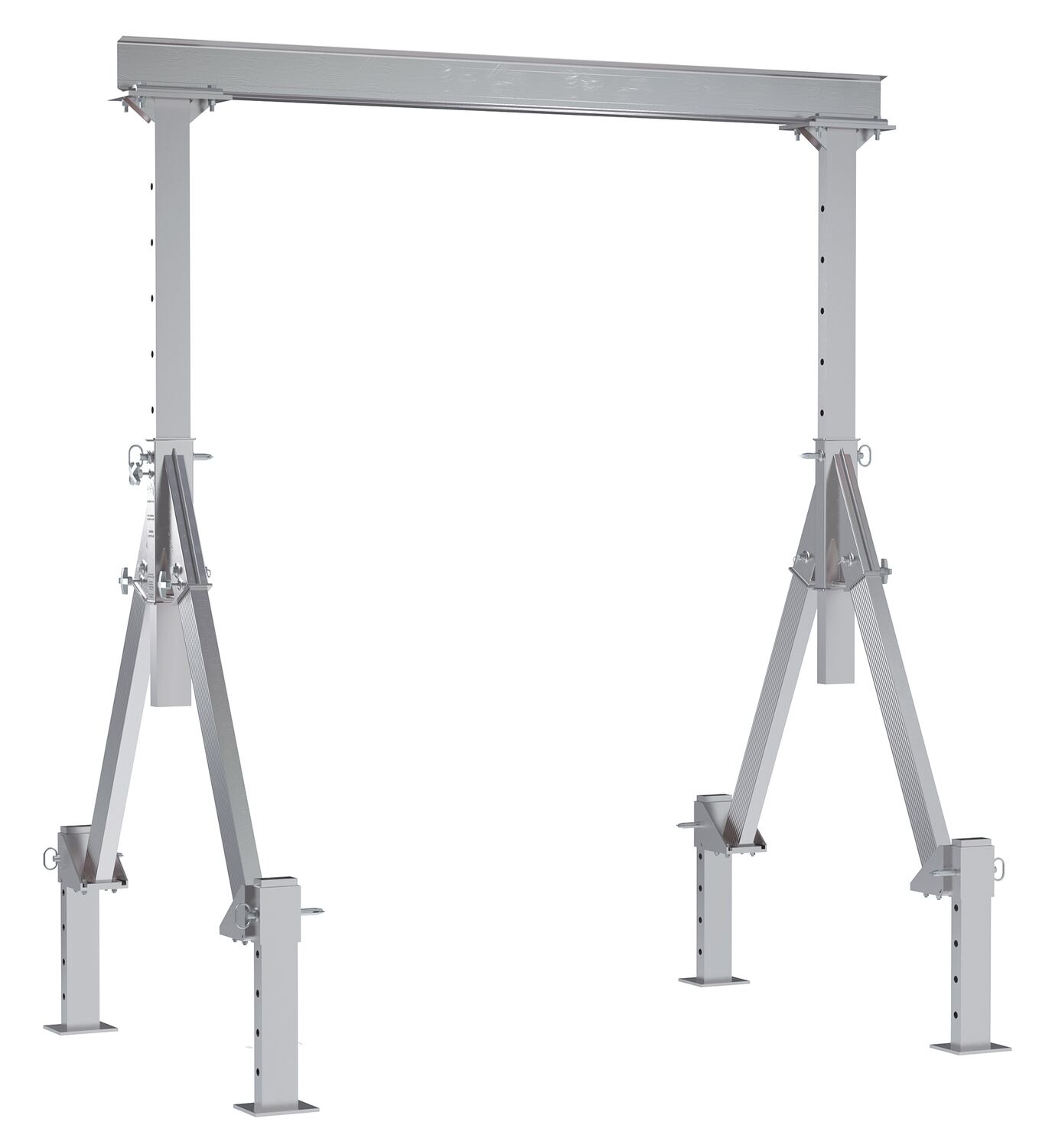

| AHA-2-8-8-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide X 8 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 68 | 246 | |

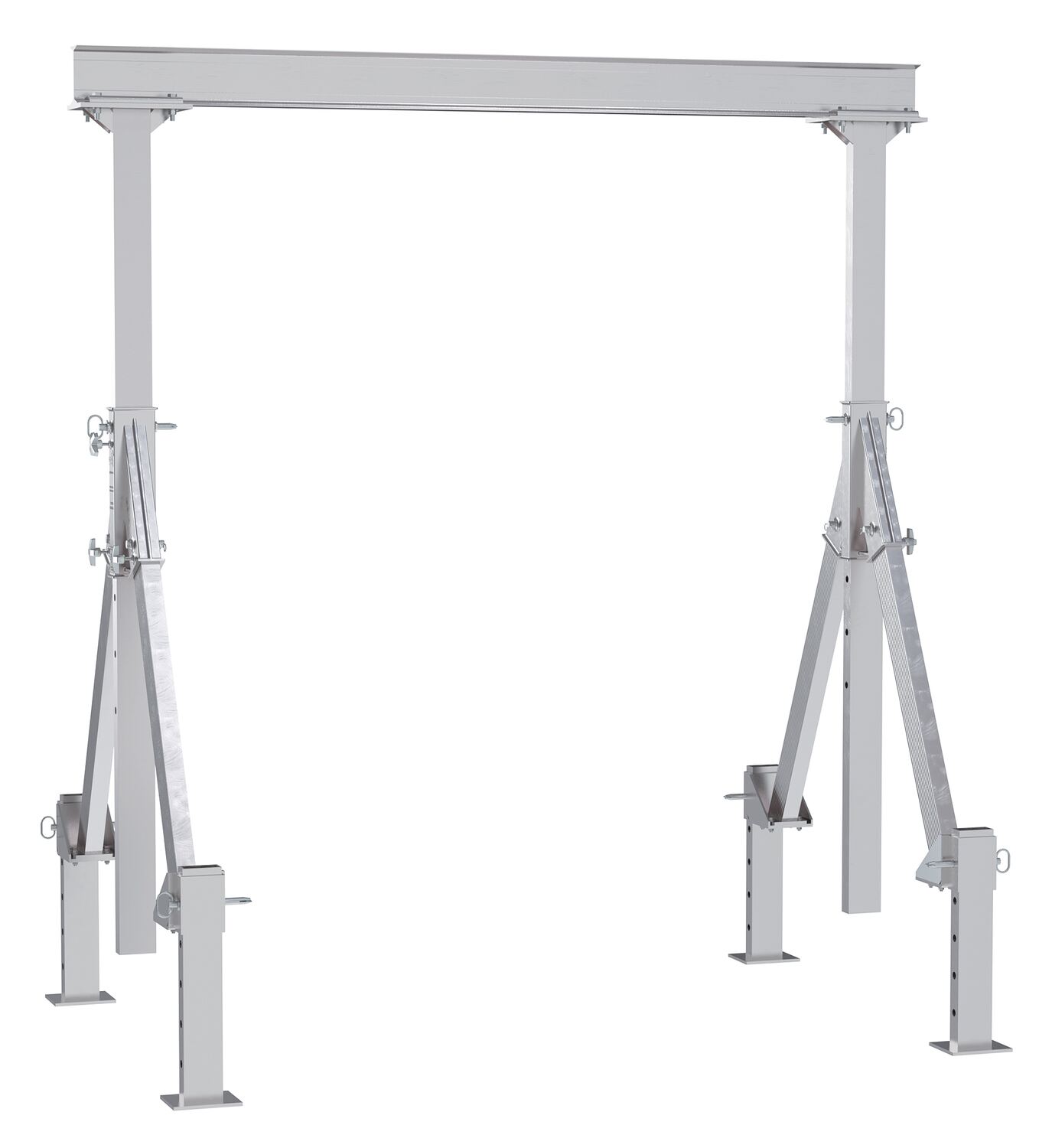

| AHA-2-8-10-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide X 10 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 92 | 251 | |
| AHA-2-8-12-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide X 12 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 114 | 258 | |

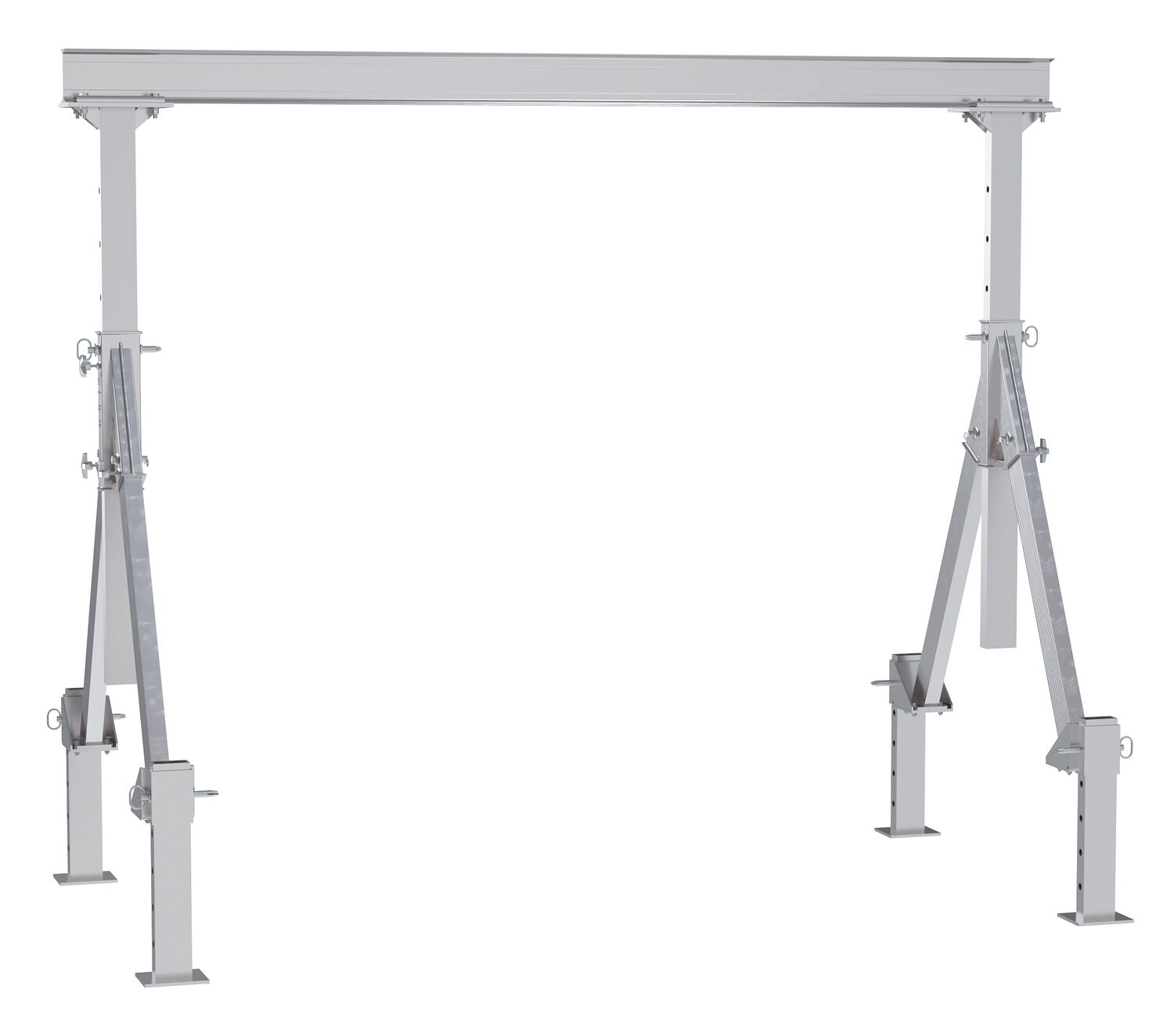

| AHA-2-10-8-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide X 8 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 68 | 243 | |

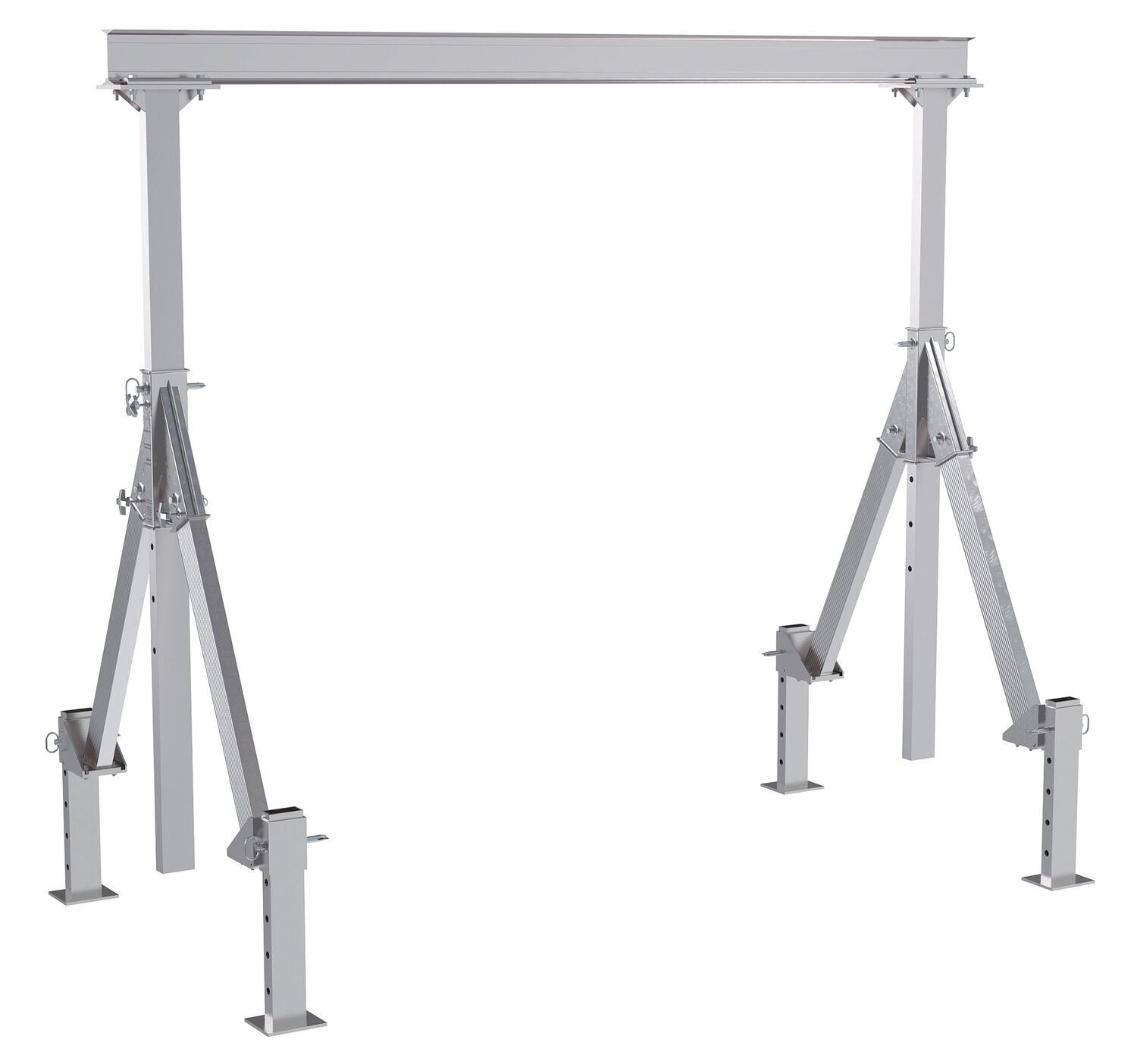

| AHA-2-10-10-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide X 10 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 92 | 264 | |

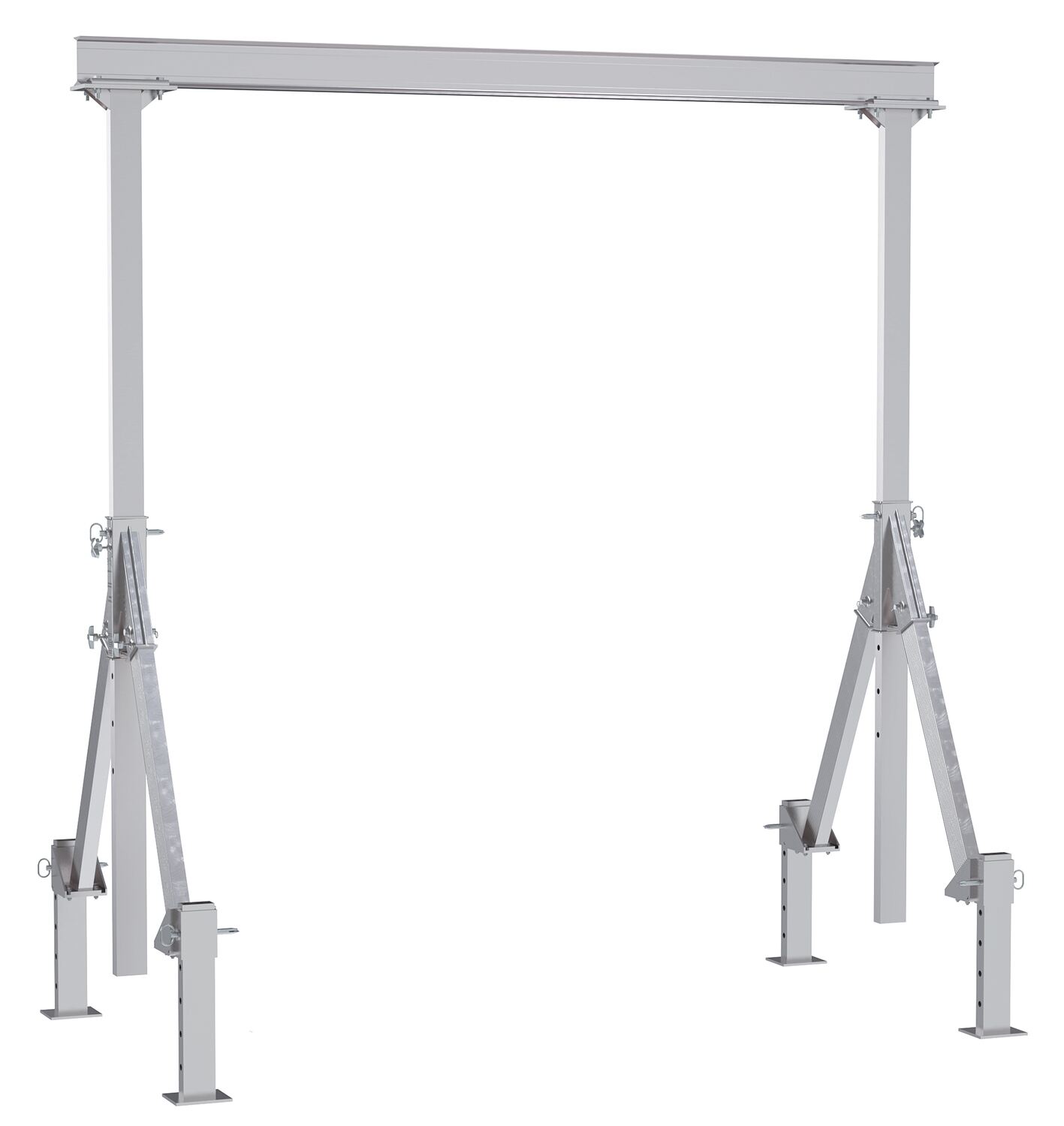

| AHA-2-10-12-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide X 12 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 114 | 273 | |
| AHA-2-12-8-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide X 8 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 68 | 278 | |

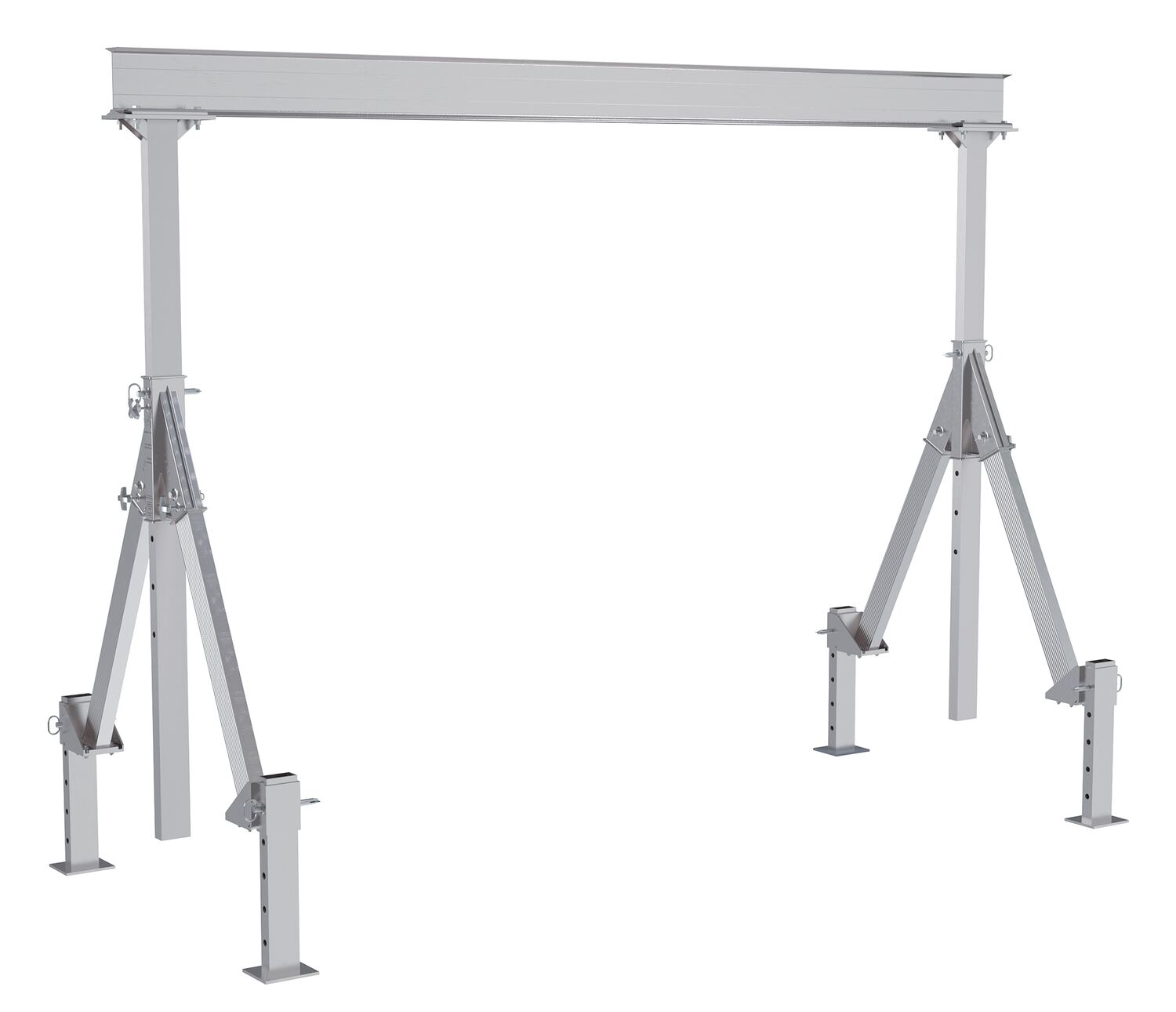

| AHA-2-12-10-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide X 10 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 92 | 286 | |

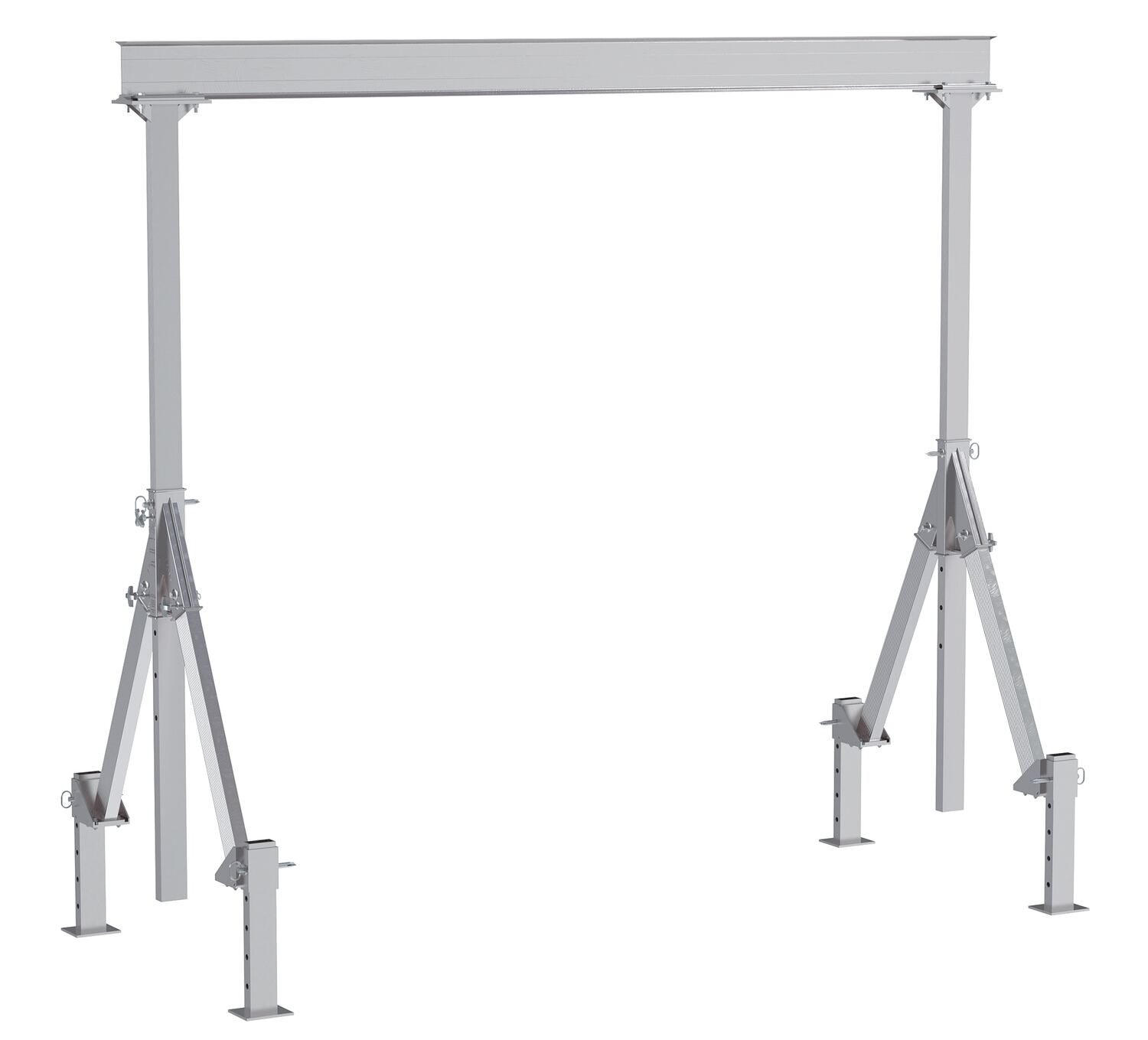

| AHA-2-12-12-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide X 12 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 114 | 298 | |

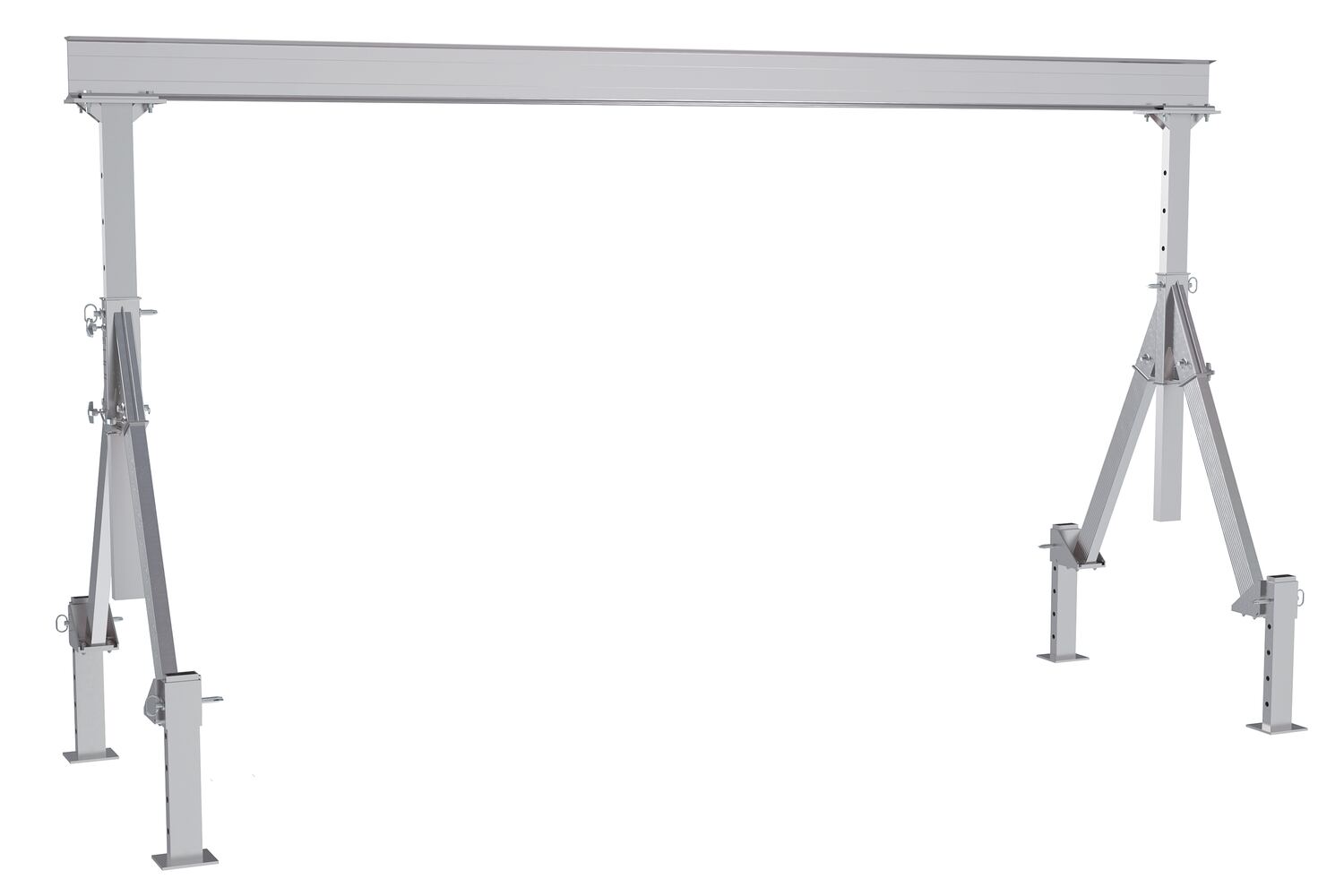

| AHA-2-15-8-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 8 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 68 | 332 | |
| AHA-2-15-10-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 10 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 92 | 376 | |
| AHA-2-15-12-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 12 Ft. Max Usable Height 2,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 114 | 292 | |

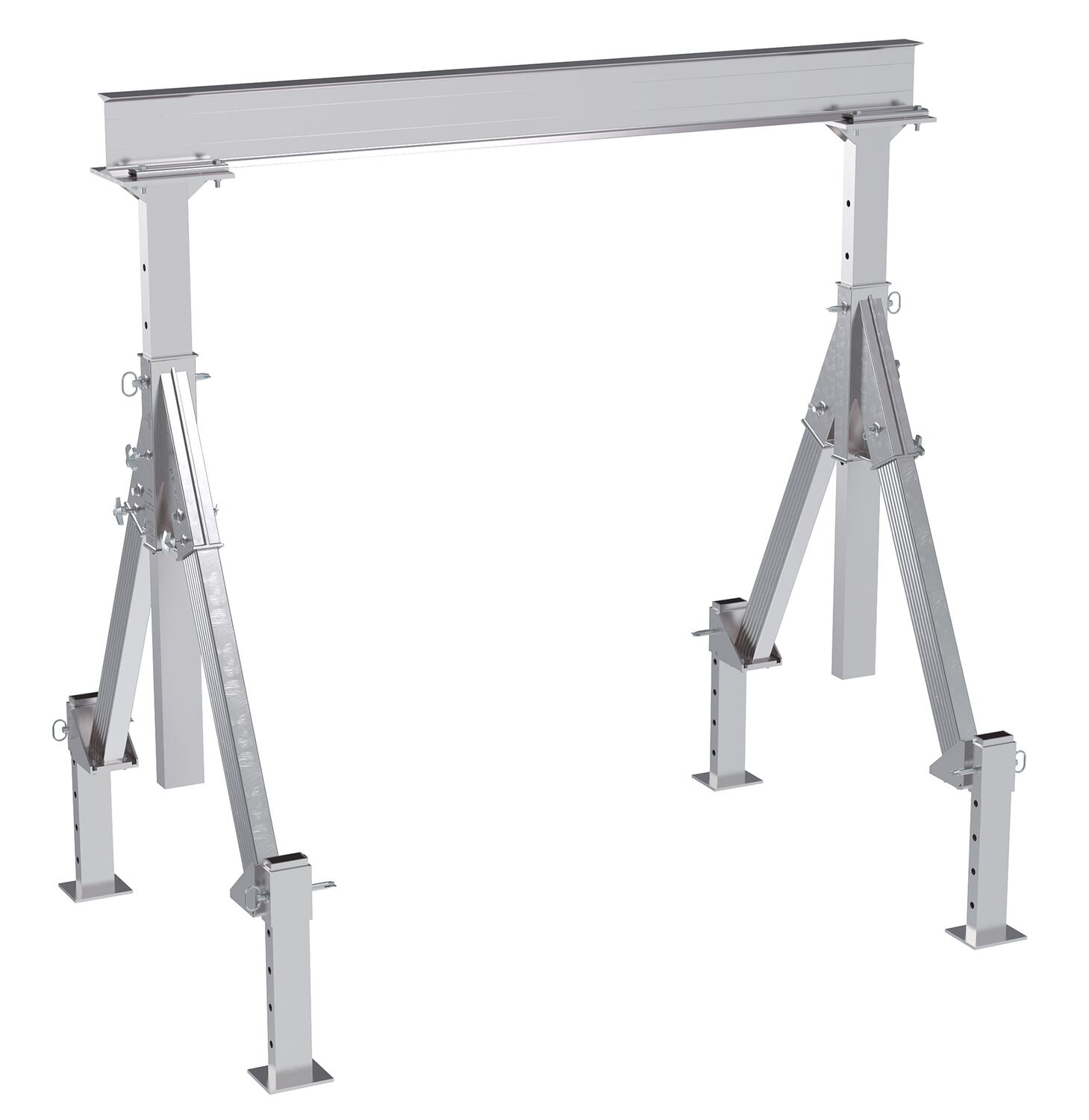

| AHA-4-8-8-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 68.125 | 288 | |

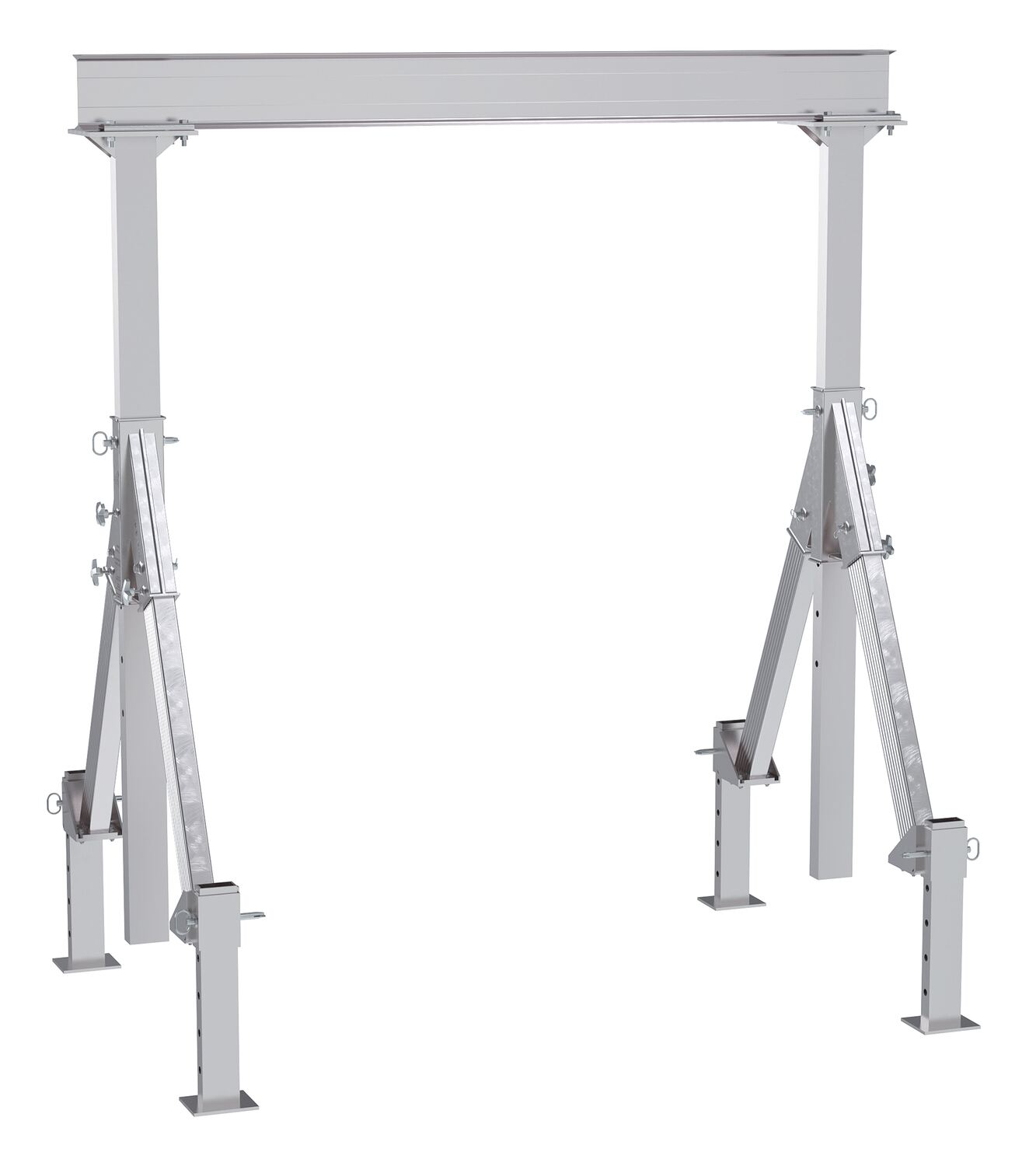

| AHA-4-8-10-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 4000 Lowered Height (in.): 92.125 | 304 | |

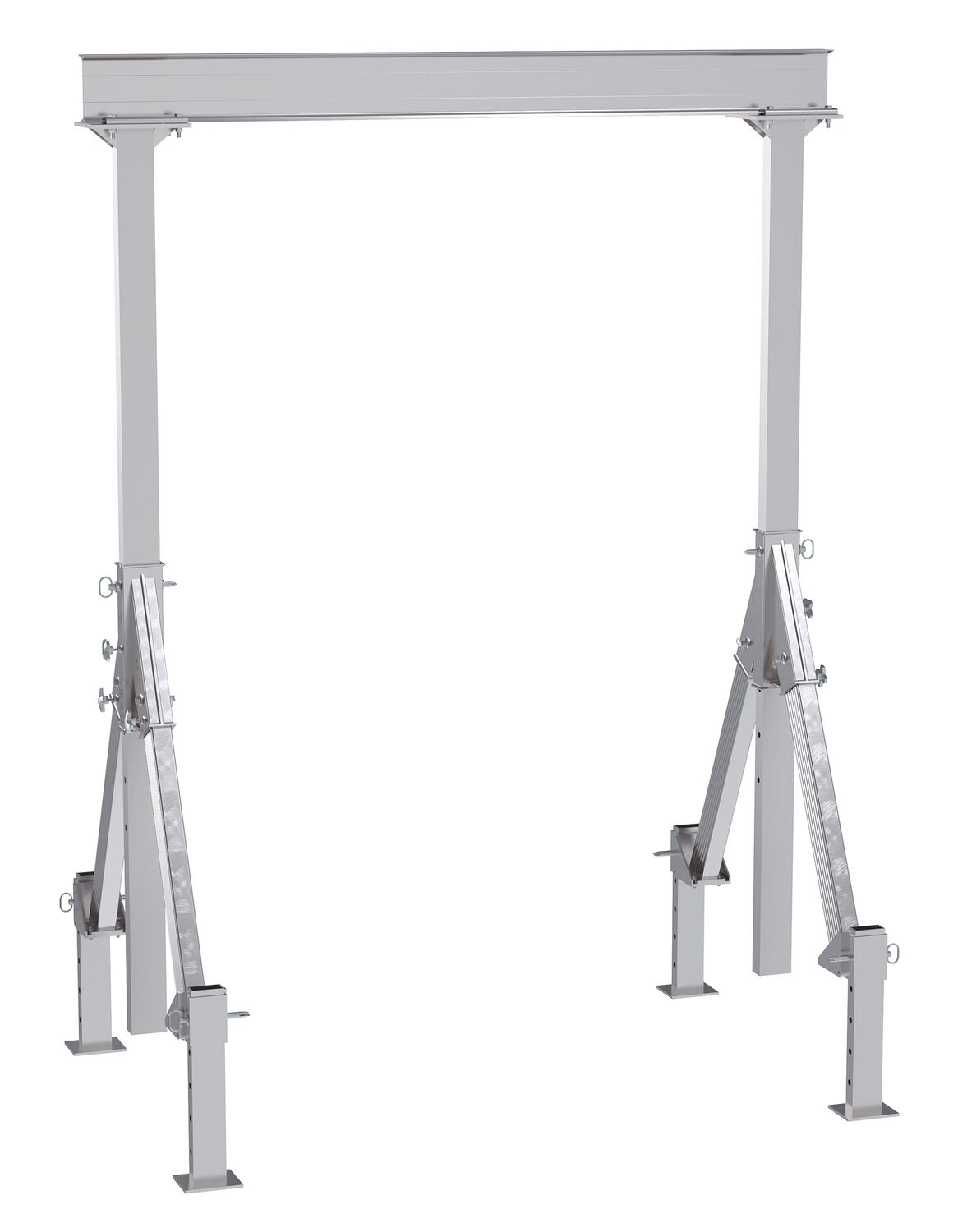

| AHA-4-8-12-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 8 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 114.125 | 313 | |

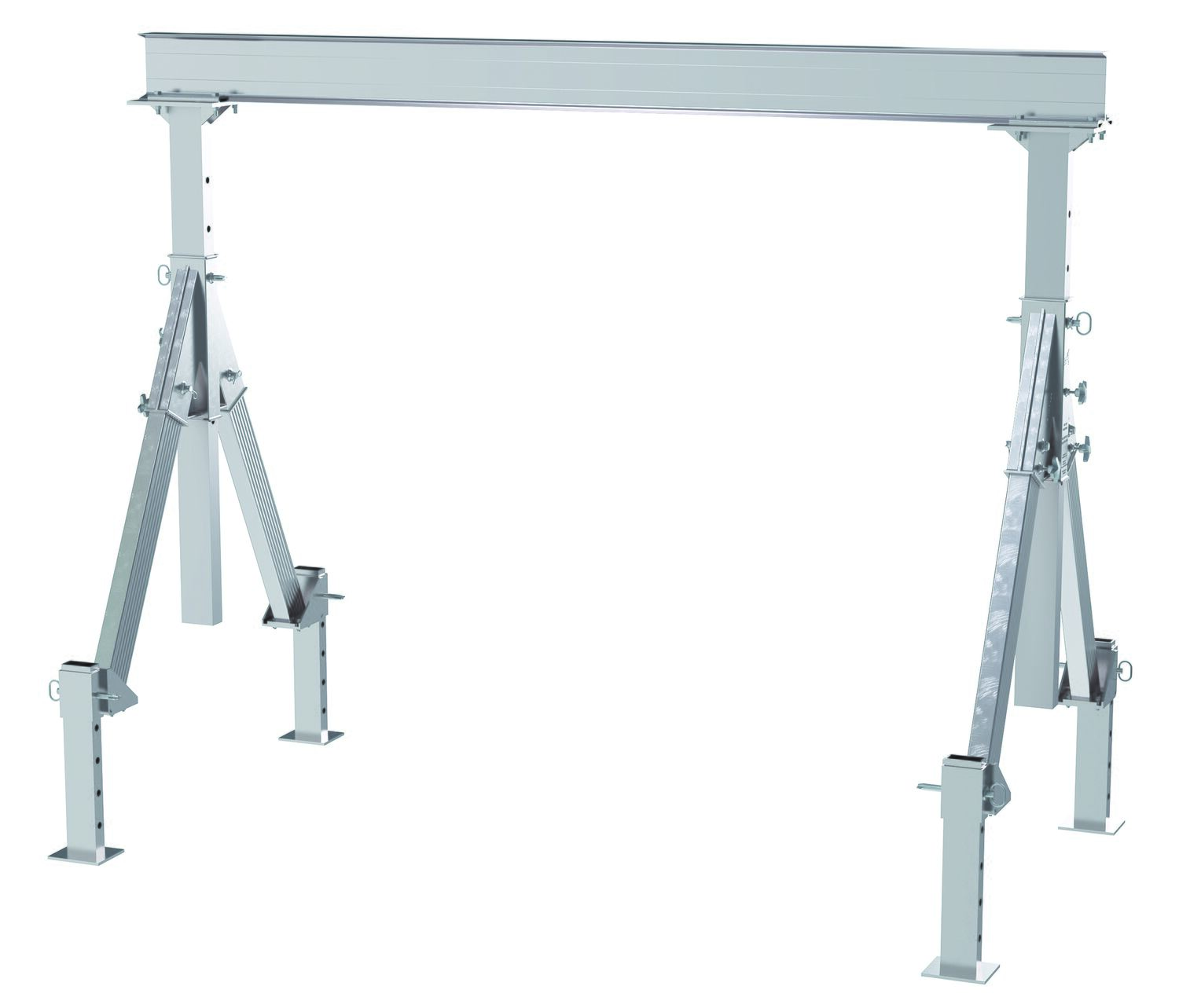

| AHA-4-10-8-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 68.125 | 310 | |

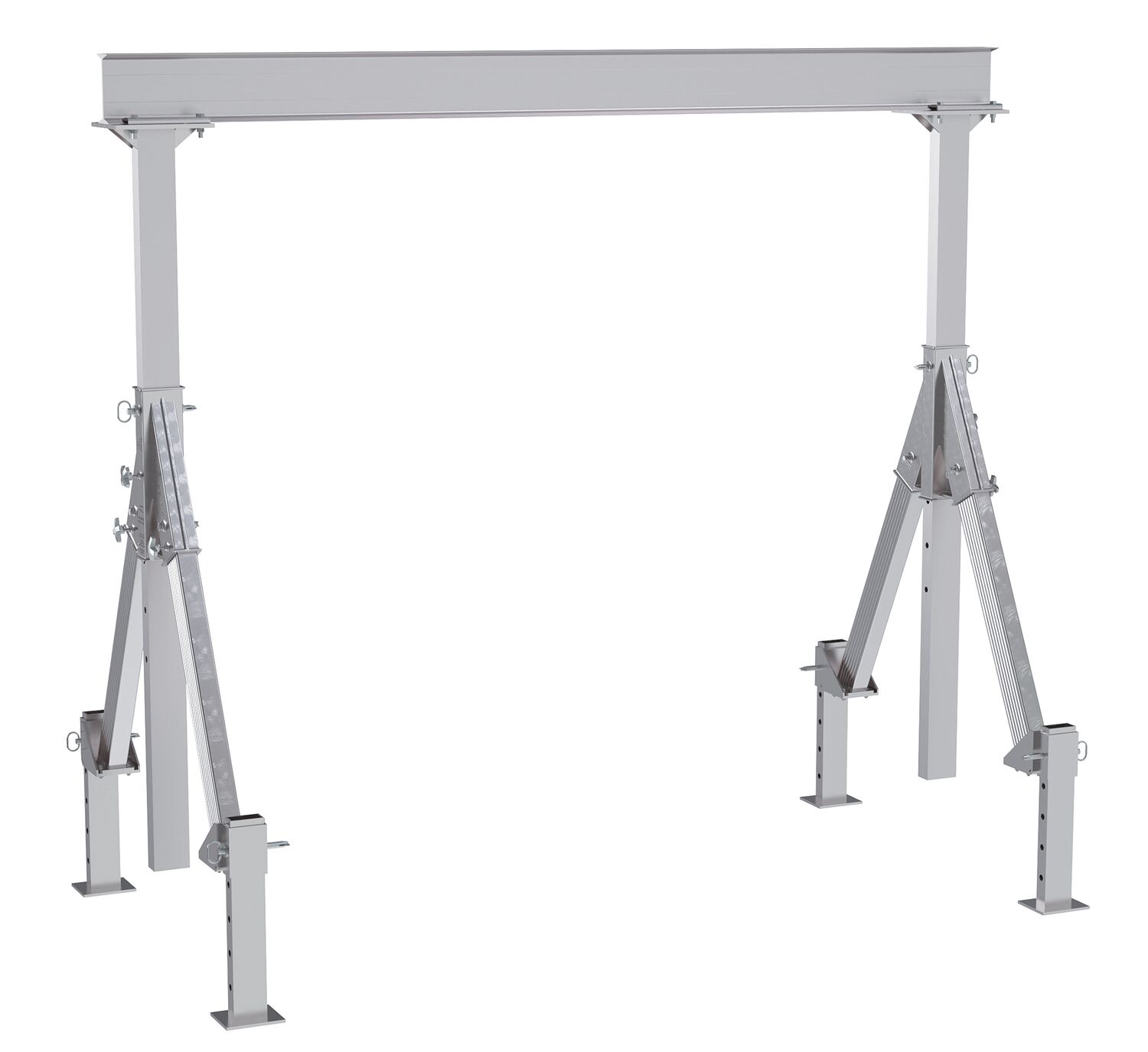

| AHA-4-10-10-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 92.125. | 319 | |

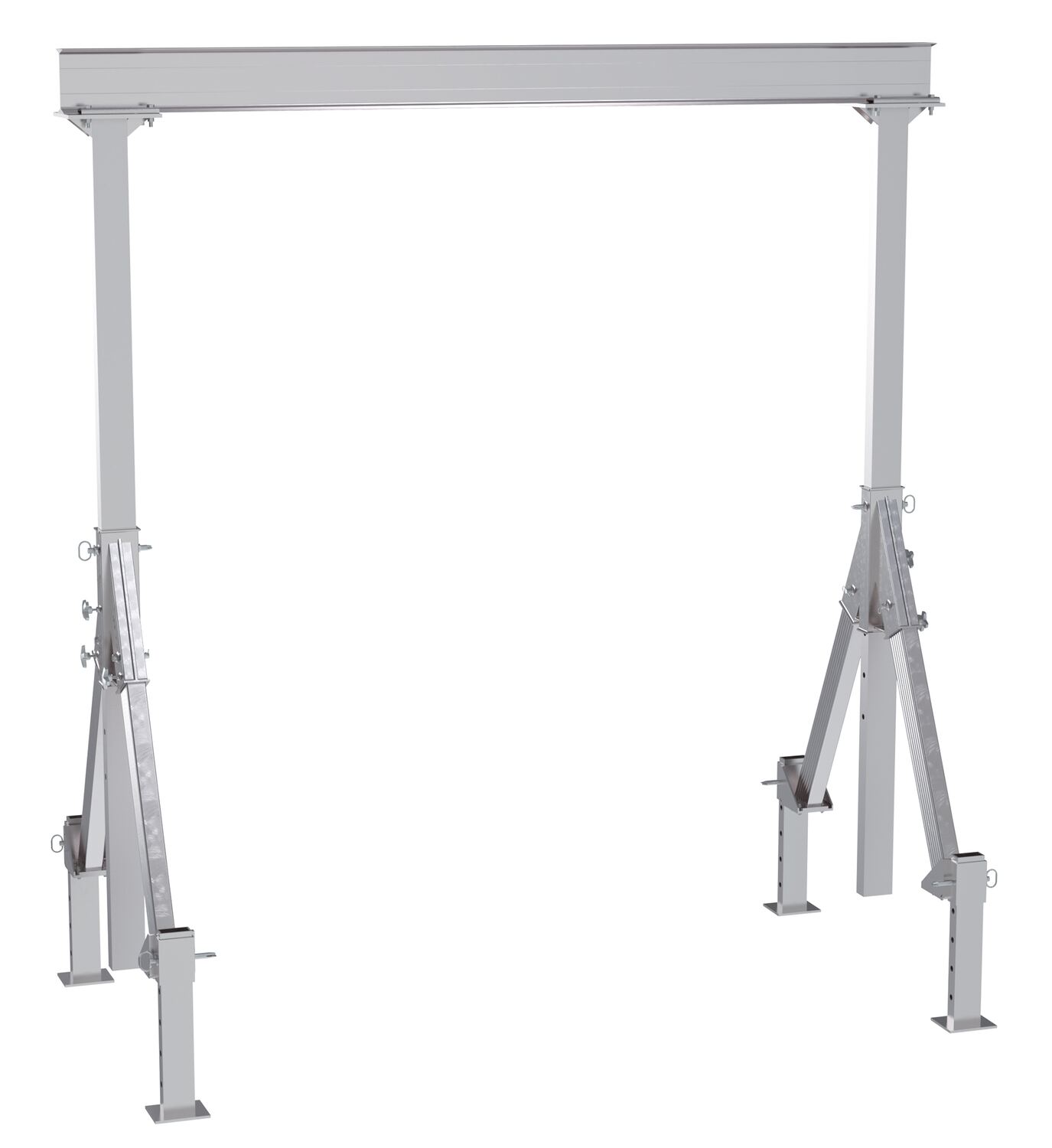

| AHA-4-10-12-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 114.125 | 361 | |

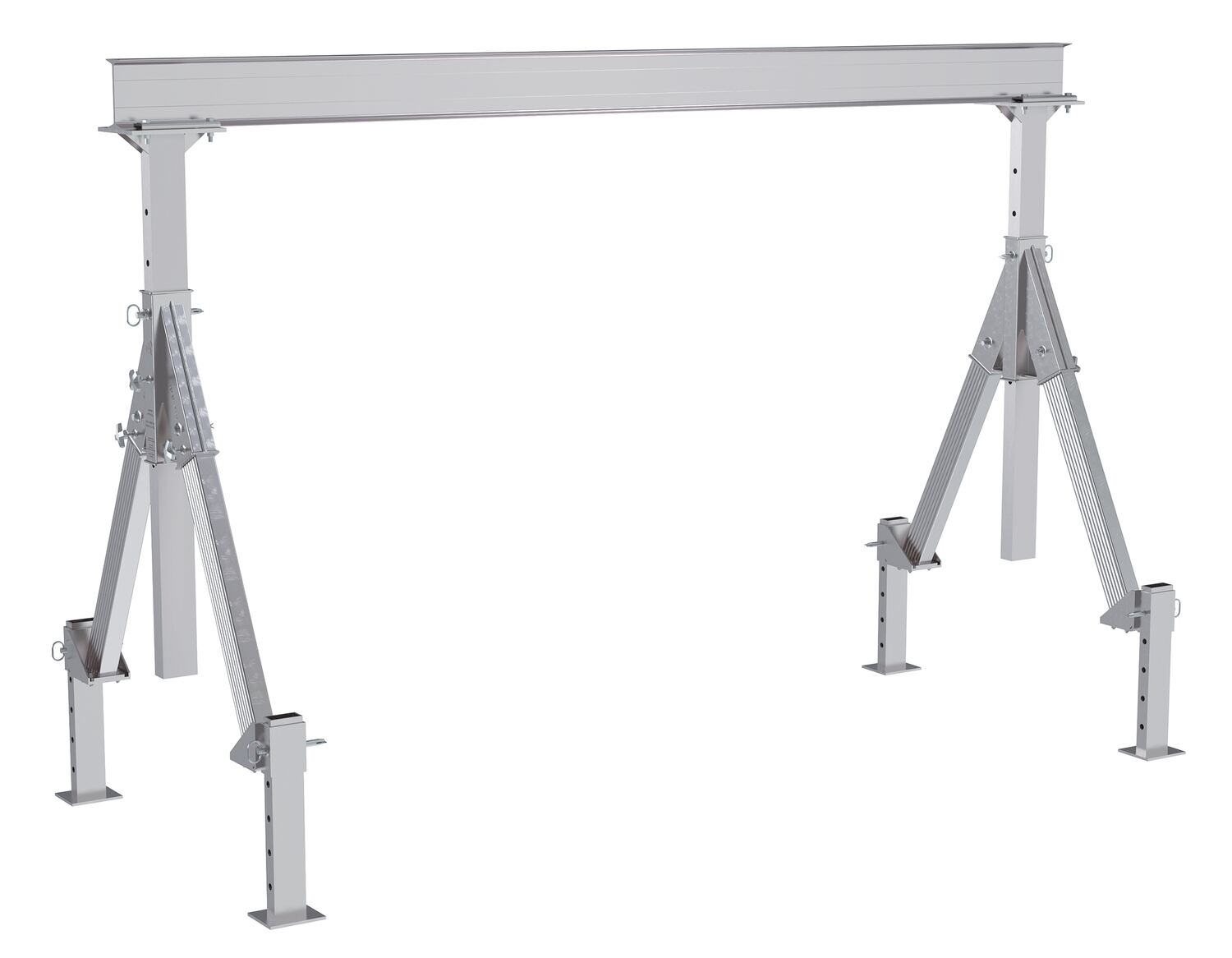

| AHA-4-12-8-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide x 8 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 68.125 | 314 | |

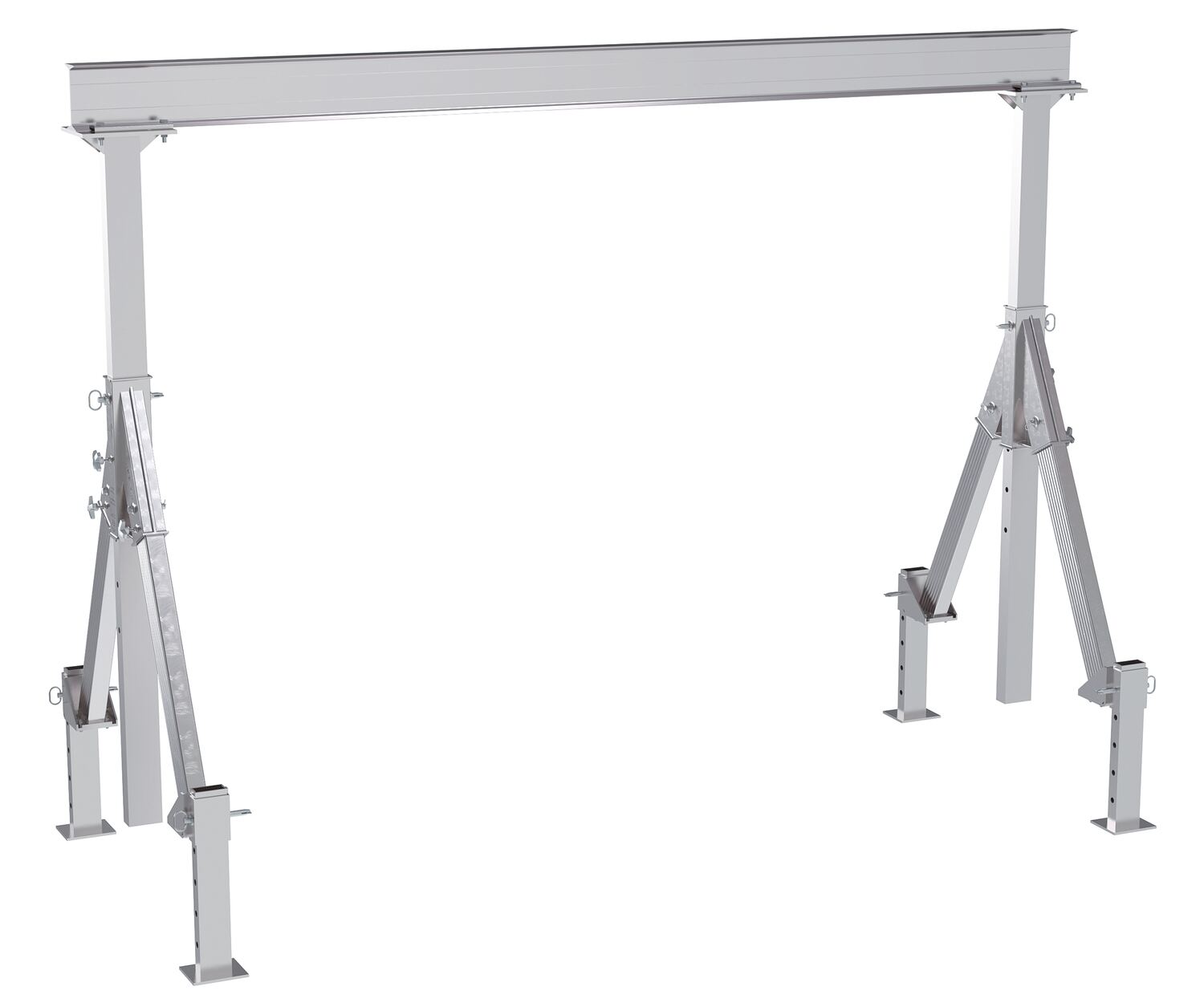

| AHA-4-12-10-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 92.125 | 337 | |

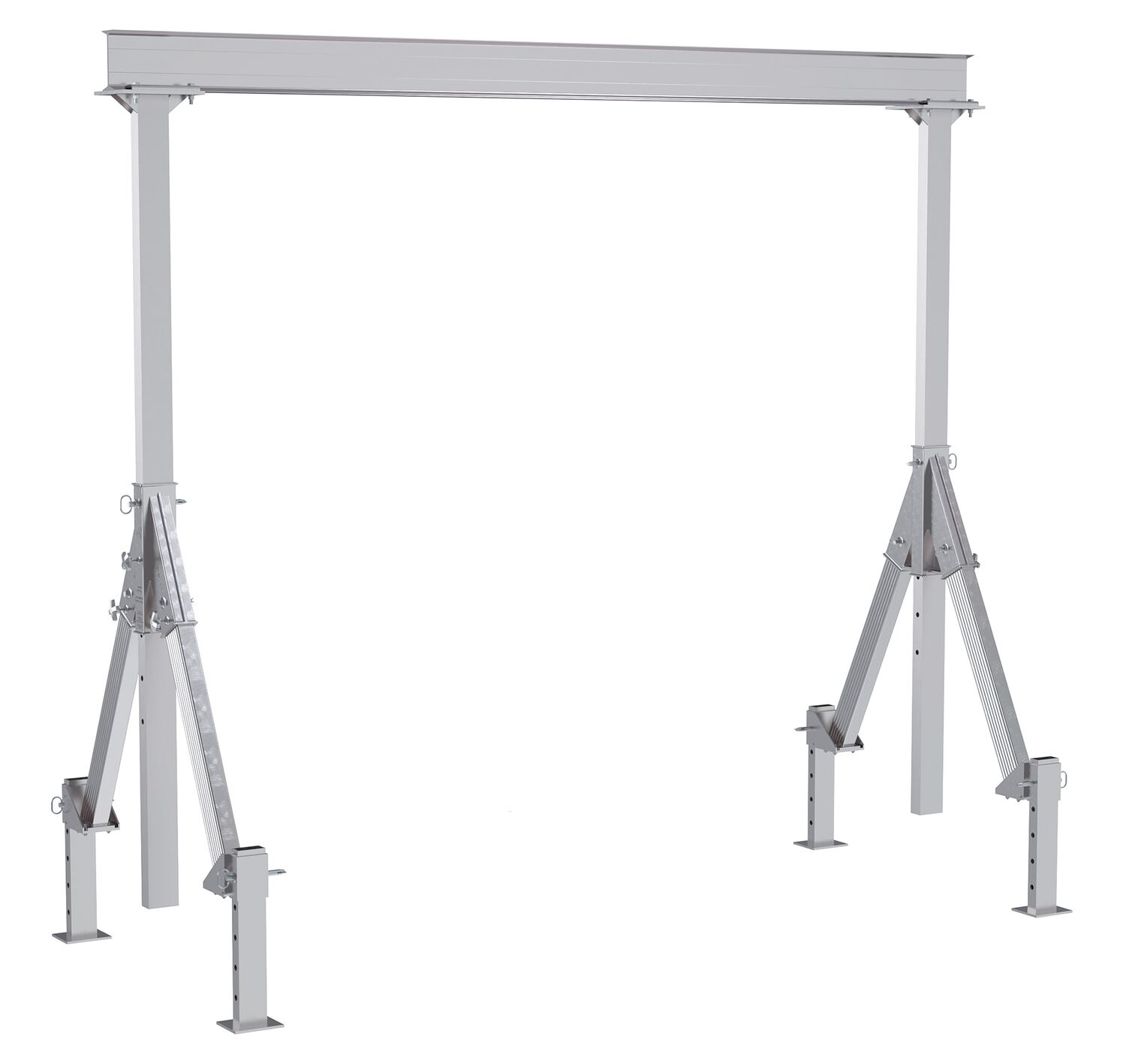

| AHA-4-12-12-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 12 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 114.125 | 362 | |

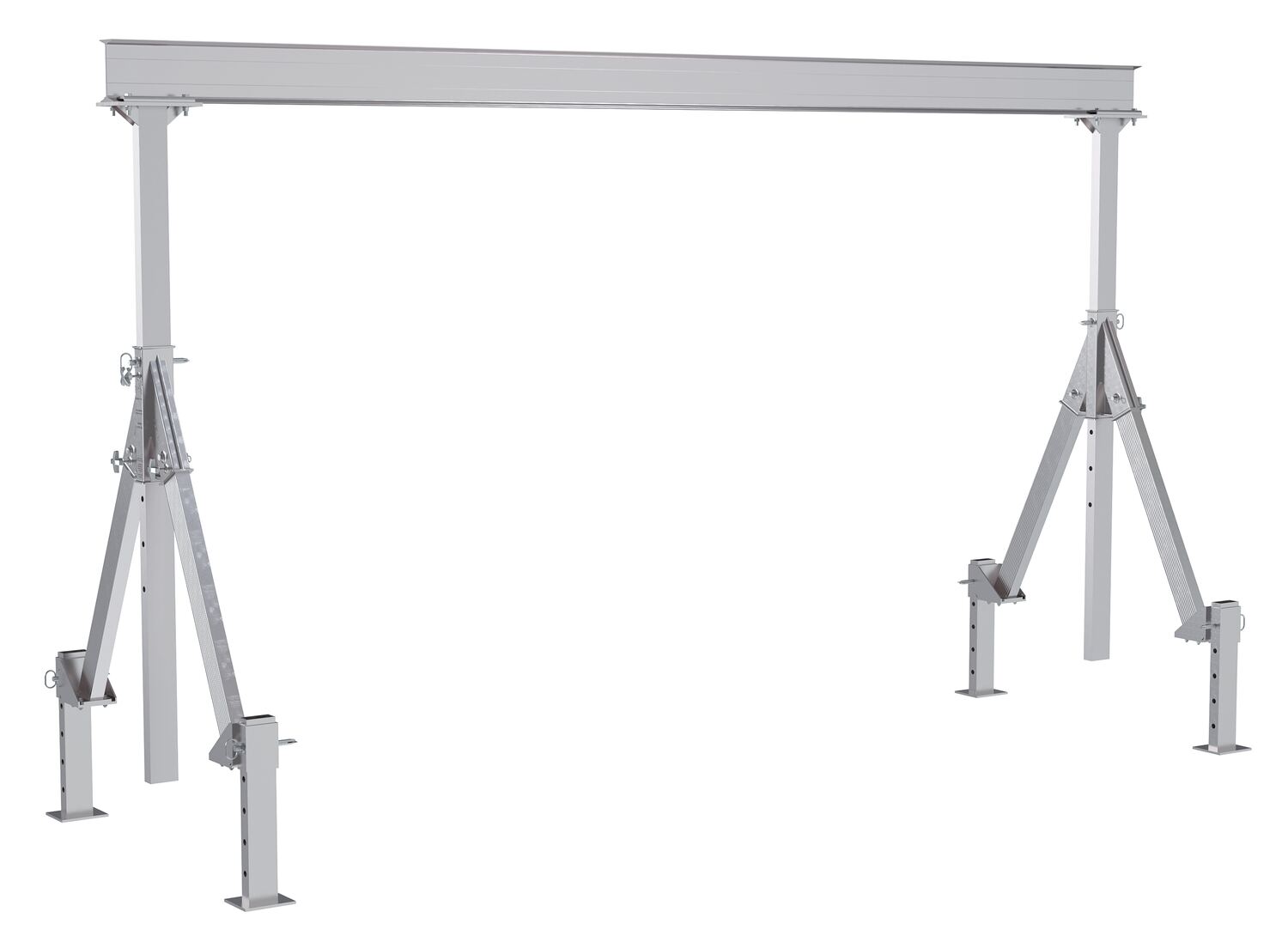

| AHA-4-15-8-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 8 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity: 4000 Base Width (in.): 65-3/16 | 354 | |
| AHA-4-15-10-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 10 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity: 4000 Base Width (in.): 65-3/16 | 376 | |

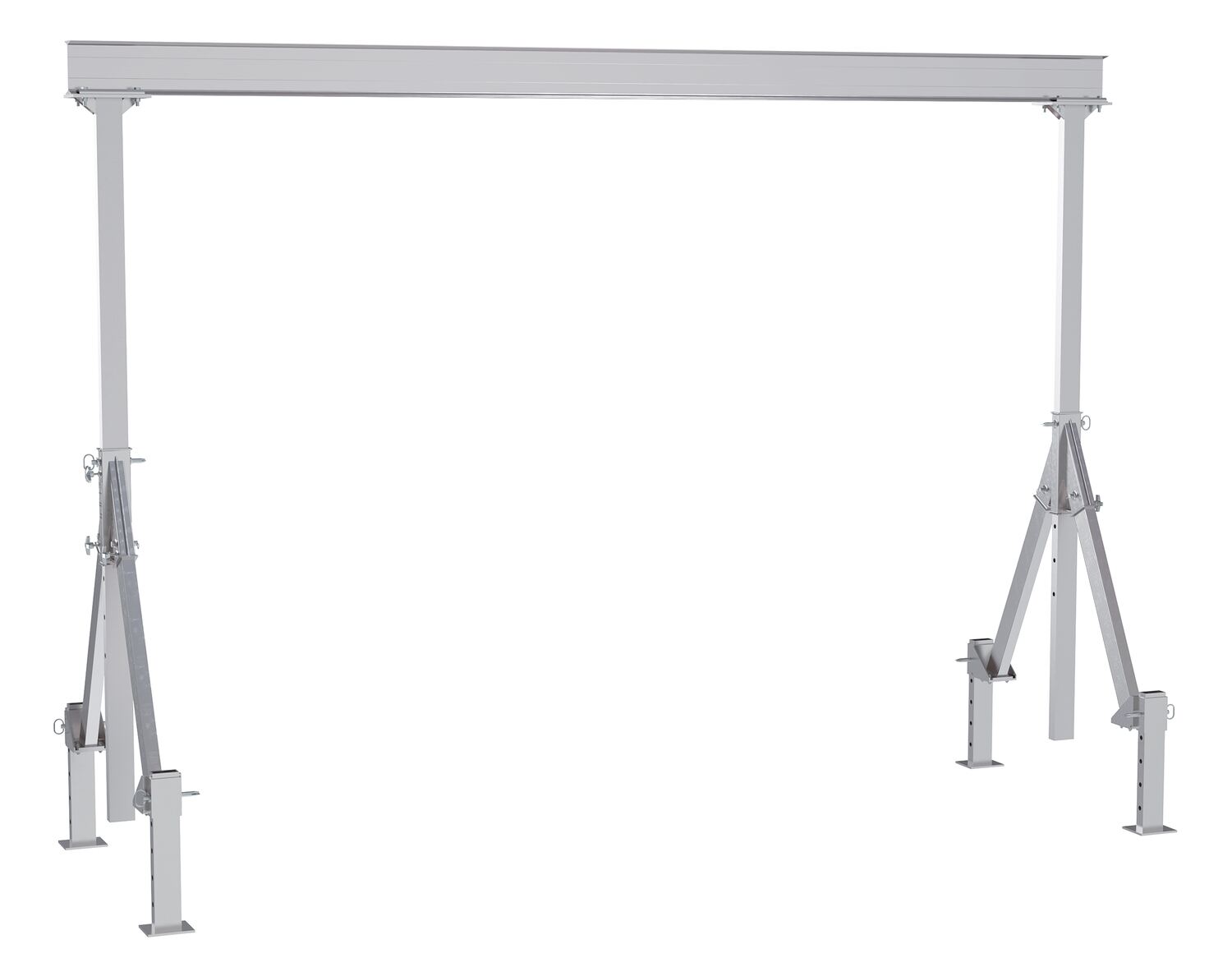

| AHA-4-15-12-ALO | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Gantry Crane With Adjustable Leveling Option 15 Ft. Wide X 12 Ft. Max Usable Height 4,000 Lb. Capacity Silver | Uniform Capacity: 4000 Base Width (in.): 65-3/16 | 394 |
* Usable Distance Between uprights is overall I-Beam Length minus 18" -- Usable Trolley Travel length is overall I-Beam Length minus 23-3/4"
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 68
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 92
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Uniform Capacity (lbs.): 2,000
Lowered Height (in.): 114
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4000
Lowered Height (in.): 92.125
Uniform Capacity (lbs.): 4000
Lowered Height (in.): 92.125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125.
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125.
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 68.125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 92.125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125
Uniform Capacity (lbs.): 4,000
Lowered Height (in.): 114.125
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Base Width (in.): 65-3/16
Uniform Capacity: 4000
Base Width (in.): 65-3/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Base Width (in.): 65-3/16
Uniform Capacity: 4000
Base Width (in.): 65-3/16
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 4000
Base Width (in.): 65-3/16
Uniform Capacity: 4000
Base Width (in.): 65-3/16
For More Details of the Option Click the Red Model Button

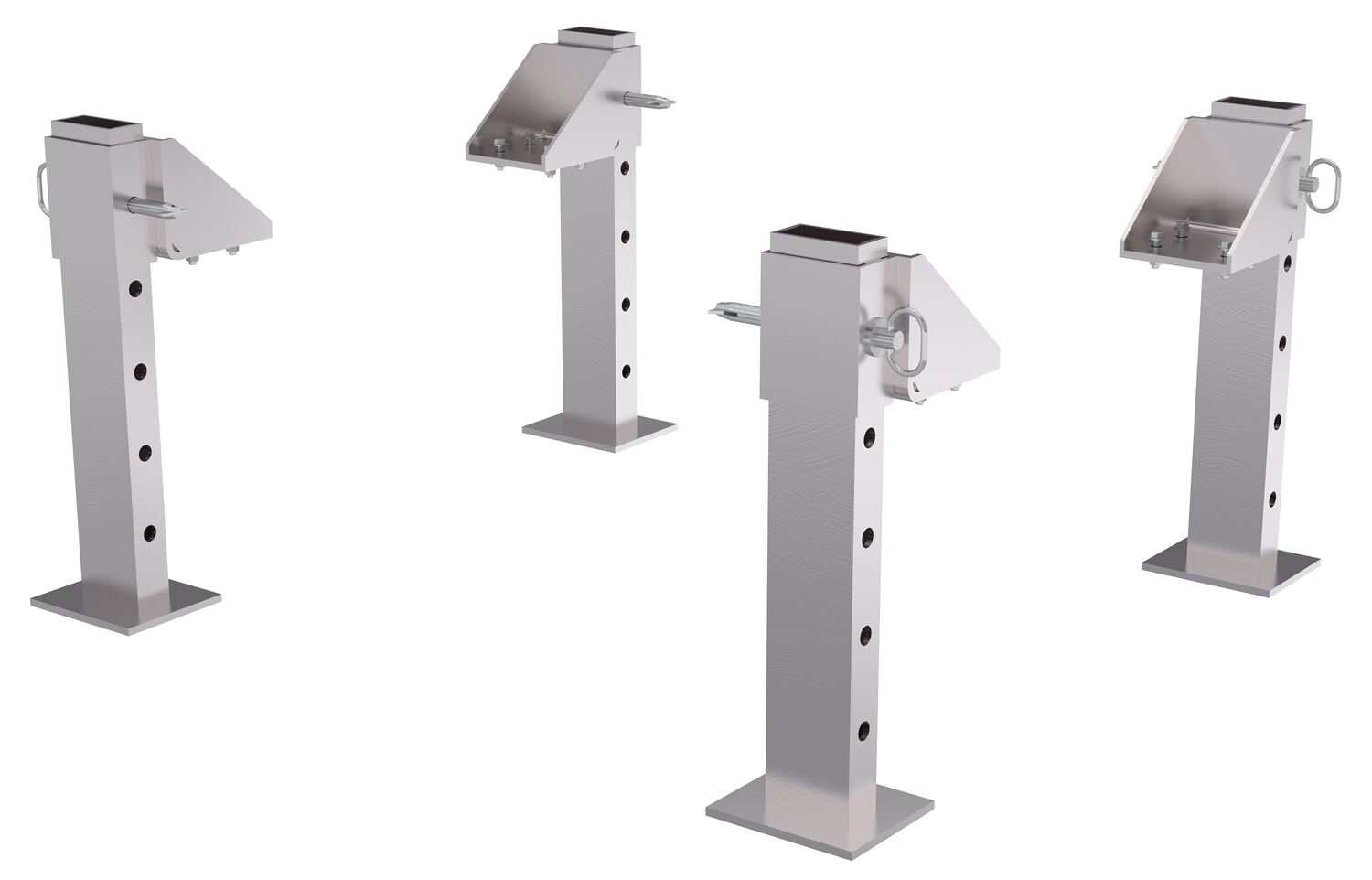

| AHA-2-ALO-RF | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Retro Fit Kit 2,000 lb. Capacity | Uniform Capacity (lbs.): 2,000 Lowered Height (in.): 1.5 | 54 |
| AHA-4-ALO-RF | NEW |  | 1 Year Limited Warranty | Aluminum Adjustable Height Retro Fit Kit 2,000 Lb. Capacity | Uniform Capacity (lbs.): 2000 Lowered Height (in.): 1.5 | 54 |
.
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Adjustable Height Aluminum Gantry Cranes with Adjustable Leveling Option PDF's will open in a new window when clicked.
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
No SDS Sheets For This Product
Other PDF's
No "Other PDFs" For This Product...
Directory Links Of Available PDF's For All Products
Q: What type of aluminum is used for the AHA gantry cranes?
A: The AHA iBeams are 6061 aluminum and the frames are 6105 aluminum.
