Semi-Steel CastersThis semi steel caster offers a high capacity, extreme abrasion resistance, and long term durability. Semi steel casters feature strength, impact resistance, cost efficiency, and high operating temperatures.
- Temperature rating -45 degrees F to 800 degrees F
- Zerk fitting
- High capacity
- Precision ball bearing
Cast Iron Casters
Silver Cast Iron Casters (Blickle)
Cast Iron/ Semi-Steel Casters
Ductile Steel Casters
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|
| CST-MA-5X2-R |  | Limited 1 Year Limited Warranty | 5 x 2 | RIGID | 1000 | 4 x 4-1/2 | 12 | |
| CST-MA-8X2-R |  | Limited 1 Year Limited Warranty | 8 x 2 | RIGID | 1400 | 9-1/2 | 4 x 4-1/2 | 11 |
| CST-VE-6X2MA-R |  | Limited 1 Year Limited Warranty | 6 x 2 | RIGID | 1200 | 4 x 4-1/2 | 11 | |
| CST-MA-3X1.25-S |  | Limited 1 Year Limited Warranty | 3 x 1-1/4 | SWIVEL | 250 | 4 | 3 x 4 | 7 |
| CST-MA-4X2-S |  | Limited 1 Year Limited Warranty | 4 x 2 | SWIVEL | 700 | 5-3/4 | 4 x 4-7/16 | 8 |
| CST-MA-5X2-S |  | Limited 1 Year Limited Warranty | 5 x 2 | SWIVEL | 1000 | 4 x 4-1/2 | 11 | |
| CST-MA-8X2-S |  | Limited 1 Year Limited Warranty | 8 x 2 | SWIVEL | 1400 | 9-1/2 | 4 x 4-1/2 | 12 |

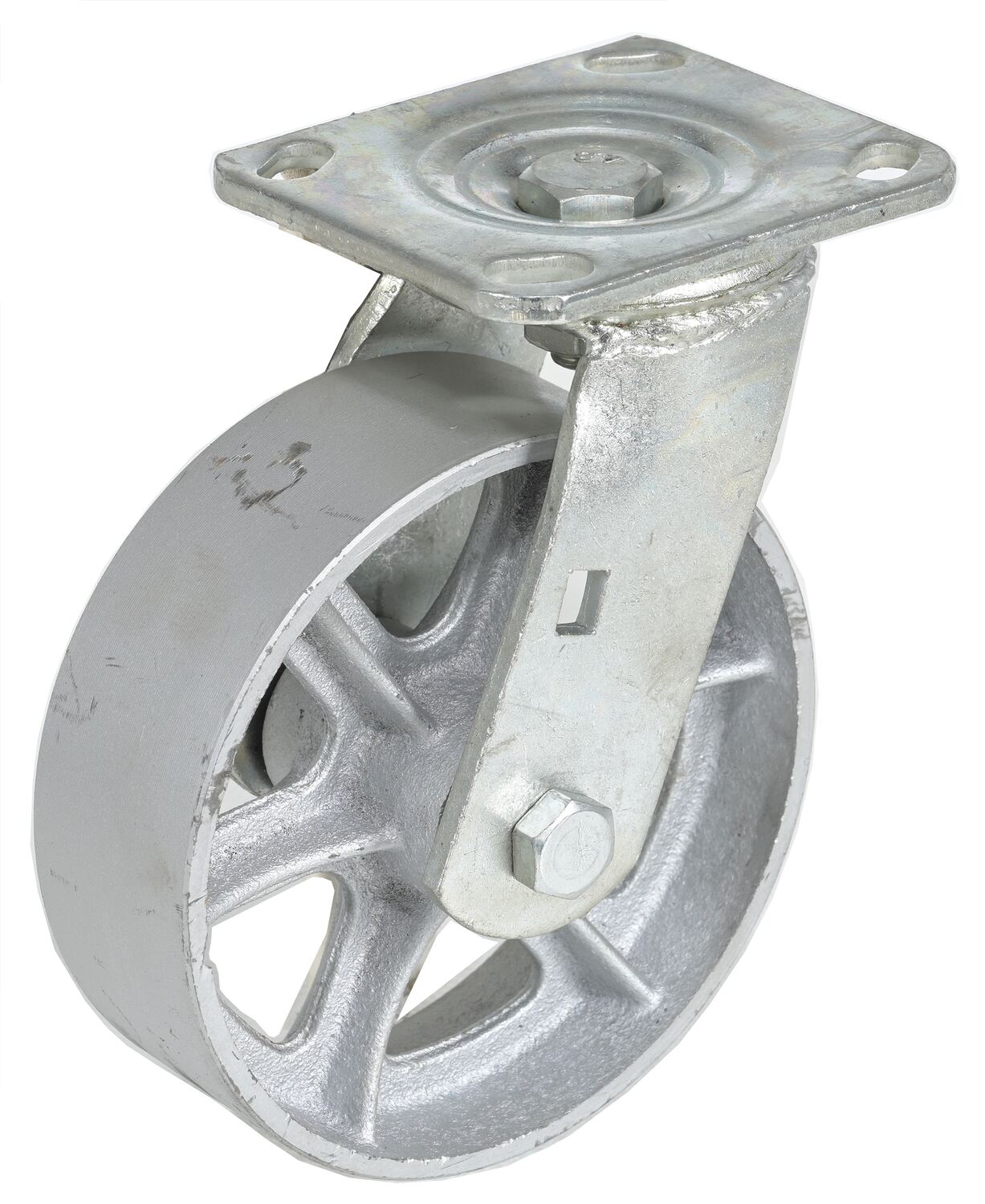

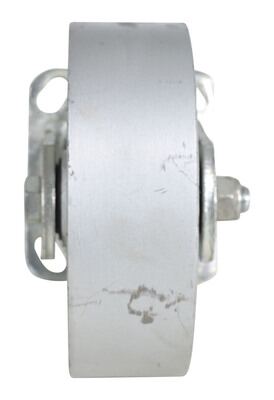

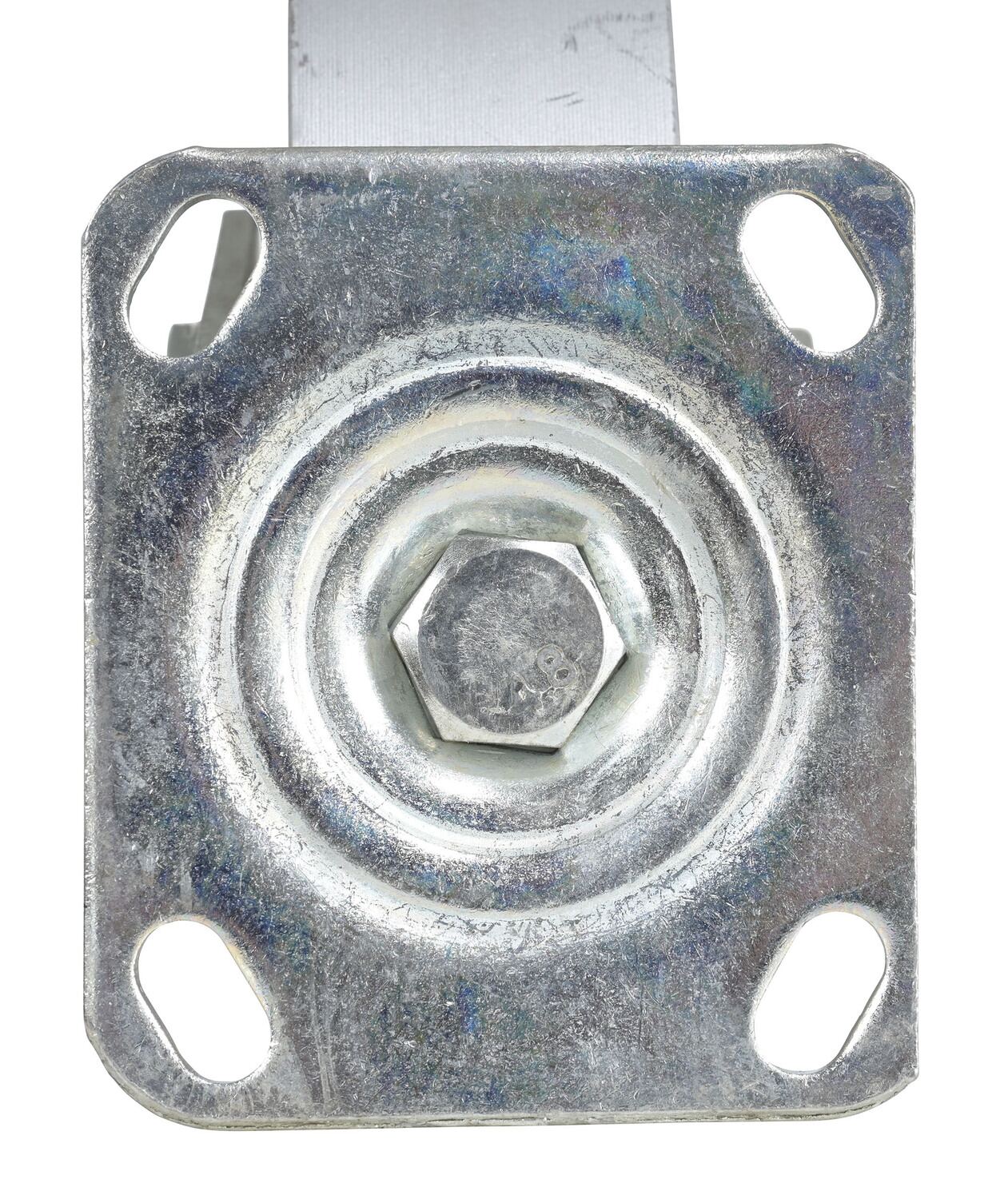

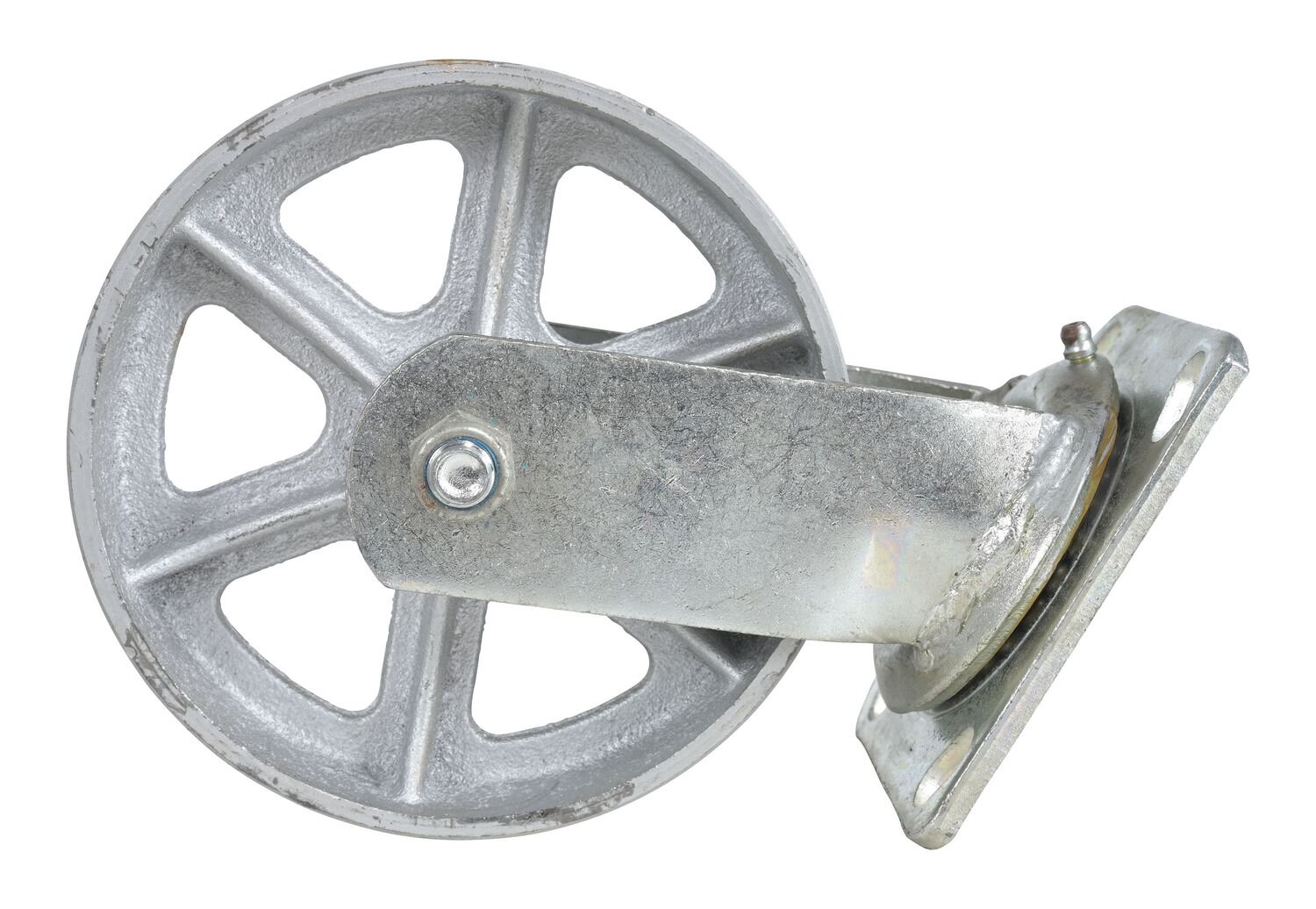

| CST-VE-6X2MA-S |  | Limited 1 Year Limited Warranty | 6 x 2 | SWIVEL | 1200 | 4 x 4-1/2 | 12 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty
Semi-Steel Casters PDF's will open in a new window when clicked.
